0916 287 068 Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp mạng HIKVISION >> Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E
Mã số:11211962

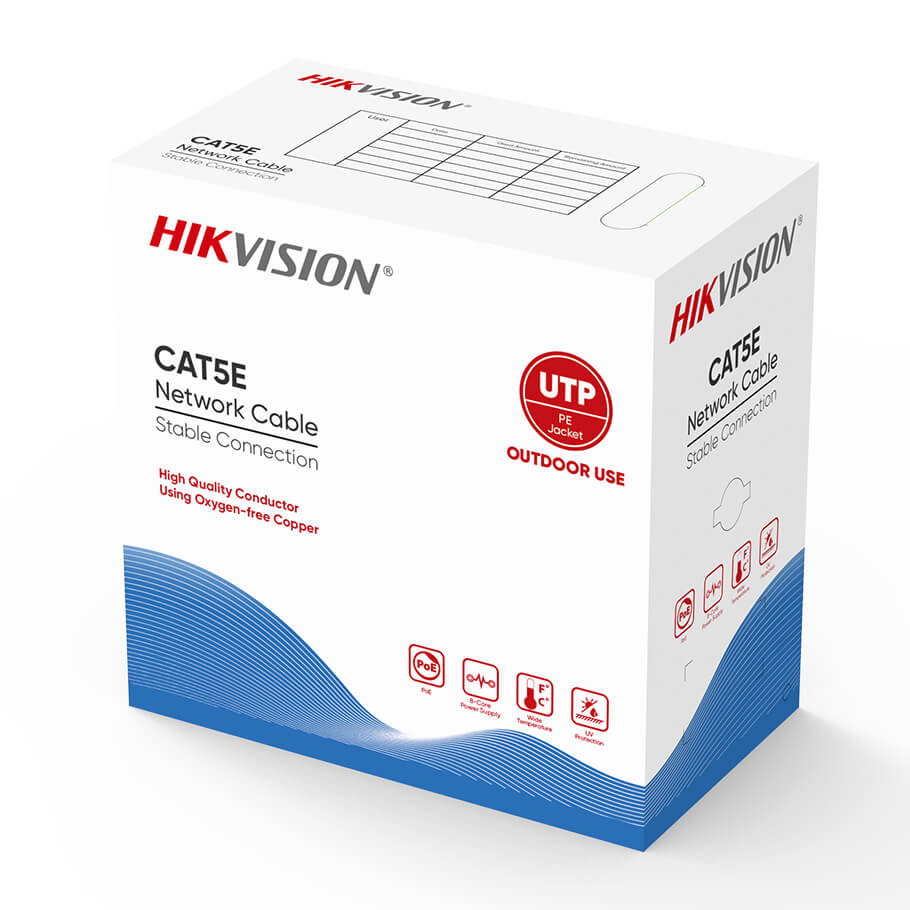

Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E
- 305m CAT5E UTP Outdoor Network Cable (Solid Copper, 0.5 mm)
- Full diameter and full length
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- 305 m CAT5E UTP Outdoor Network Cable
Specifications
| Model | DS-1LN5EO-UU/E |
| General | |
| Core Color | 1 White-Blue /Blue 2 White-Orange/ Orange 3 White-Green / Green 4 White-Brown/ Brown |
| Packing Length | (305±0.5)m |
| Rip-Cord | Yes |
| Drain Wire | No |
| Sheath Physical Properties | Before Aging Tensile Strength (Mpa) ≥10 Elongation(%) ≥300 Aging Period(℃×hrs) 100℃×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks |
| Electrical Characteristics (20℃) | 1.0-100.0MHz Impedance(Ω) 100±15 1.0-100.0MHz Delay Skew (ns/100m) ≤552 DC Resistance(Ω/100m) max 9.5 DC Conductor Resistance Unbalance(%) max 2.0 |
| Conductor | |
| Material | Solid-Bare Copper Content 99.99% |
| Nom.O.D.(Mm) | 0.5±0.01 |
| Insulation | |
| Material | HDPE |
| Diameter | 0.88±0.03mm |
| Sheath | |
| Thickness | 0.55±0.03 mm |
| External O.D. | 5.0±0.3 mm |
| Surface | Clean, Frap, Satiation |
| Material | PE |
| Color | Black |
| Surface Printing | |
| Letter Height | 2.8mm |
| Color | White |
| Print Error & Space | ≤±0.5%, 1m |
Giá: Vui lòng gọi
(Đã bao gồm VAT)
