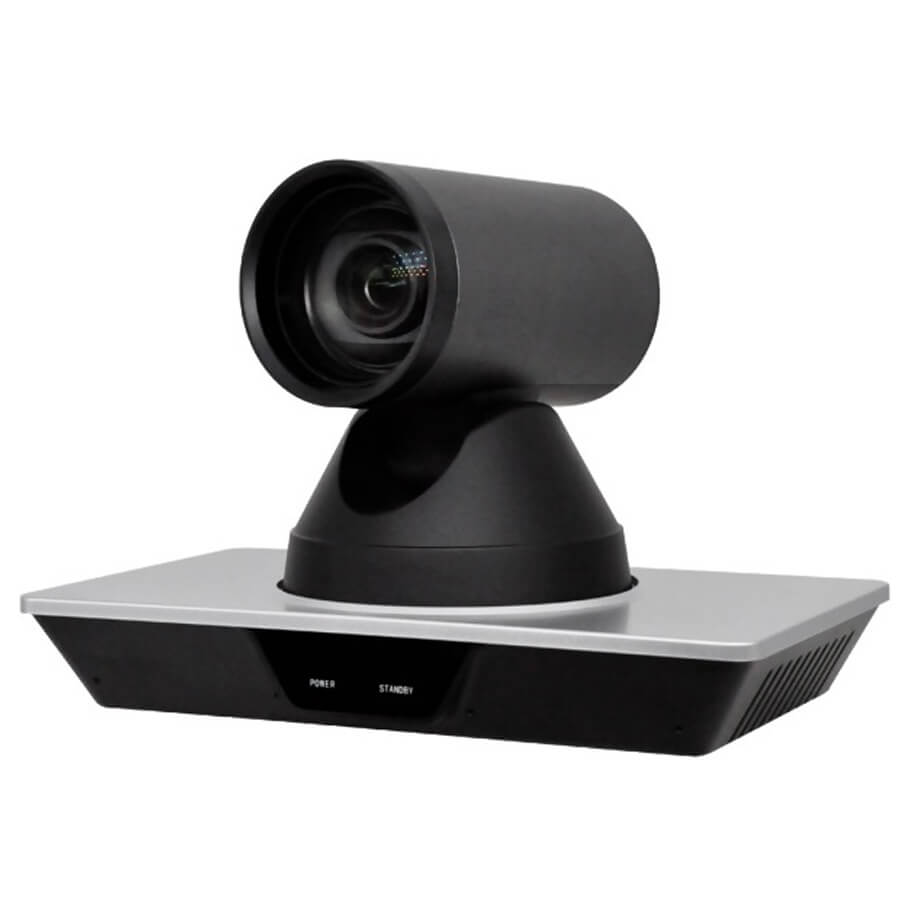

Camera hội nghị MAXHUB UC P20

Trang Chủ >> Hội nghị truyền hình >> Hội nghị truyền hình MAXHUB >> Camera hội nghị MAXHUB UC P20
Mã số:17097977
Camera hội nghị MAXHUB UC P20

Camera hội nghị MAXHUB UC P20

- Cảm biến hình ảnh: 1/2.5 inch CMOS.

- Độ phân giải: 4K (3840x2160) @60fps.

- Tốc độ màn trập (Shutter): 1/30s ~ 1/10000s.

- Zoom quang: 12X.

- Góc nhìn HFoV: 71°.

- Hỗ trợ tự động cân bằng sáng, giảm nhiễu kỹ thuật số 2D&3D.

- Thiết lập nhớ 255 vị trí.

- Độ nhạy sáng: 0.5 Lux @ (F1.8, AGC ON).

- Hỗ trợ H&V Flip (Treo ngược camera)

- Hệ điều hành hỗ trợ cổng USB: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android.

Đặc tính kỹ thuật

Model UC P20
Camera
Image Sensor 1/2.5 inch, CMOS, Max Effective Pixel: 8.51M
Video System 4K@60fps, 4K@50fps, 4K@30fps, 4K@25fps, 4K@59.94fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps,  1080I@60fps, 1080I@50fps, 1080P@30fps, 1080P@25fps, 1080P@59.94fps, 1080I@59.94fps, 1080P@29.97fps, 720P@60fps, 720P@59.94fps
Scanning Mode Progressive
Lens 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s~1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Signal Noise Ratio ≥55dB
Horizontal Angle of View 71° ~ 8.2°
Vertical Angle of View 42.7° ~ 4.5°
Horizontal Rotation Range ±170°
Vertical Rotation Range ±30°
Pan Speed Range 1.6°/s ~ 76°/s
Tilt Speed Range 0.5°/s ~ 15°/s
H&V Flip Supported
Image Freeze Supported
Number of Preset 255
Preset Accuracy 0.1°
Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Encode Format YUY2 / H.264 / H.265 / MJPEG
Video Format YUY2: max to 1080P@30fps
H.264 AVC: max to 2160P@60fps
H.264 SVC: max to 2160P@60fps
MJPEG: max to 2160P@30fps
USB Audio Supported
USB Video Communication Protocol UVC 1.1~1.5
UVC PTZ Supported
Network
Video Compression H.264 / H.265 / MJPEG
Video Stream First Stream, Second Stream
First Stream Resolution 3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360
Second Stream Resolution 1280×720, 1024×576, 720×576 (50Hz supported), 720×480 (60Hz supported), 720×408, 640×360, 480×270, 320×240, 320×180
Video Bit Rate 32kbps ~ 51200kbps
Bit Rate Control Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Protocols TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multi-cast
Input & Output
Network Interface 1×RJ45: 10/100/1000Mbps Adaptive Ethernet Port
Communication Interface 1×RS232 IN: 8pin Min DIN, Max Distance 30m, Protocol: VISCA / Pelco-D / Pelco-P
1×RS485: 3pin phoenix port, Max Distance 1200m, Protocol: VISCA / Pelco-D / Pelco-P
Audio Interface 1×LINE IN: 3.5mm Audio Interface
HDMI Interface 1×HDMI: Version 2.0
3G-SDI Interface 1×3G-SDI: BNC type, 800mVp-p, 75Ω.Along to SMPTE 424M standard
USB Interface 1×USB 3.0: Up to 4K@60fps compressed video and 1080P original video can be output
Power Jack JEITA type (DC IN 12V)
Others
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Power Consumption 12W (Max)
Dimension (L×H×D) 238×131.8×166.35 mm
Weight 1.3kg
Operation Temperature -10℃~40℃
Storage Temperature -40℃~60℃

- Bảo hành: 24 tháng.



Giá: Vui lòng gọi (Đã bao gồm VAT)
