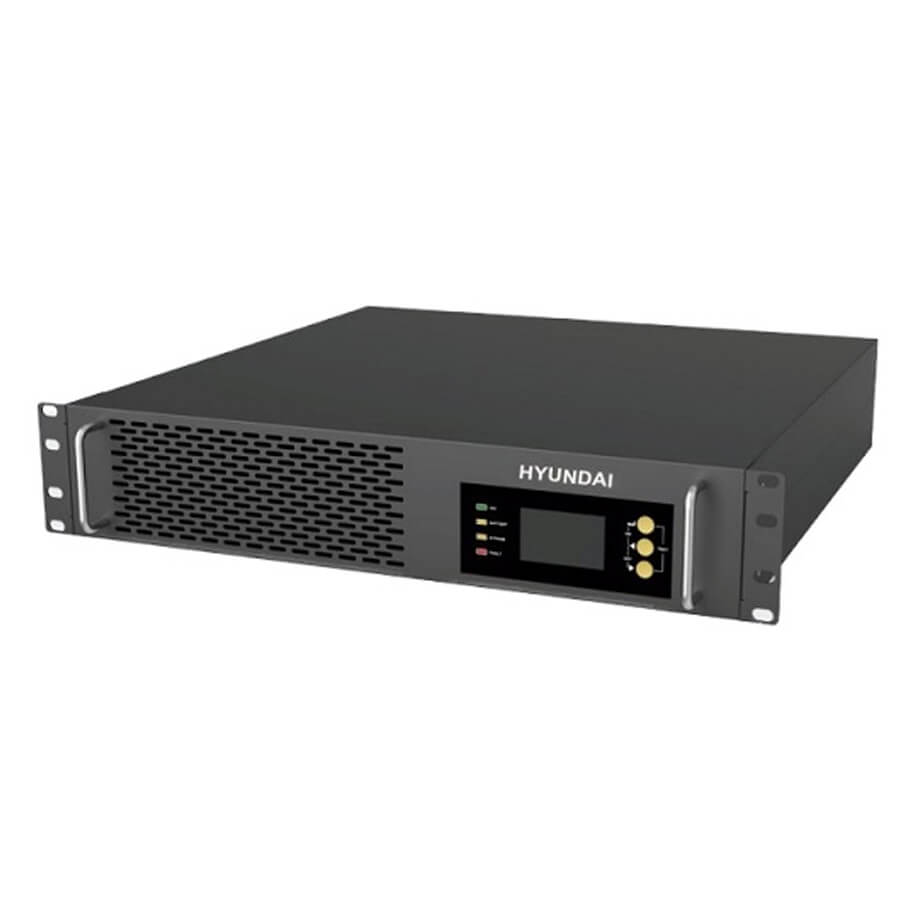

Bộ lưu điện 10kVA/9kW UPS HYUNDAI HD-10KRS
- Công suất: 10kVA/9kW.
- Điện áp đầu vào: 208/220/230/240 Vac.
- Điện áp đầu ra: 208/220/230/240 Vac.
- Hệ số công suất: 0.9.
- Kích thước (W x D x H): 480 x 400 x 88 mm.
- Trọng lượng: 12kg.
Đặc tính kỹ thuật
| Model | HD-10KRS |
| Capacity | 10kVA/9kW |
| INPUT | |
| Nominal Voltage | 208/220/230/240VAC |
| Input Voltage Range | 110~300VAC |
| Current | 54.0A max |
| Frequency Range | 50Hz: 44~56Hz 60Hz: 54~66Hz |
| Power Factor | ≥0.99 |
| Harmonic Distortion | ≤5% |
| OUTPUT | |
| Voltage | 208/220/230/240 VAC |
| Current | 40.9A max |
| Voltage Regulation | ±1% |
| Frequency Range | Line Mode: Sychronized range, Battery Mode: 50/60Hz±0.1% |
| THD | ≤1% (Linear Load) ≤4% (Non-linear Load) |
| BATTERY | |
| Battery | 192VDC (Default) |
| Battery quantity | External batteries |
| Battery Curent | 50A |
| Charging Current | 1~12A (settable) |
| OTHERS | |
| Overload Capacity | Line Mode: 30min@102%~110% Load/ 10min@110%~130% Load/ 30s@130%150% Load/ 500ms@>150% Load Battery Mode: 10min@102%~110% Load/ 1 min@110%~130% Load/ 10s@130%~150% Load/ 500ms@>150% Load |
| Transfer Time | 0ms |
| Efficiency | 95.50% |
| Communications | RS232, Intelligent slot (Available). USB/SNMP card/EPO (Optional) |
| OPERATING ENVIRONMENT | |
| Temperature | 0°C~40°C |
| Humidity | 20%~95% |
| Altitude | <1000m |
| Storage temperature | -15~40°C |
| PHYSICAL | |
| Dimension (W x D x H) | 480 x 400 x 88 mm |
| Weight | 12kg |
| BATTERY PACK | |
| Type | External Battery Pack |
| Nominal DC Voltage | 192VDC |
| Weight | 57.28kg |
| Dimension (W x D x H) | 480 x 600 x 132 mm (3U) |
- Bảo hành: 24 tháng.
