Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Analogue cooling timer THEBEN Fri 77 h-2
Mã số:13142411

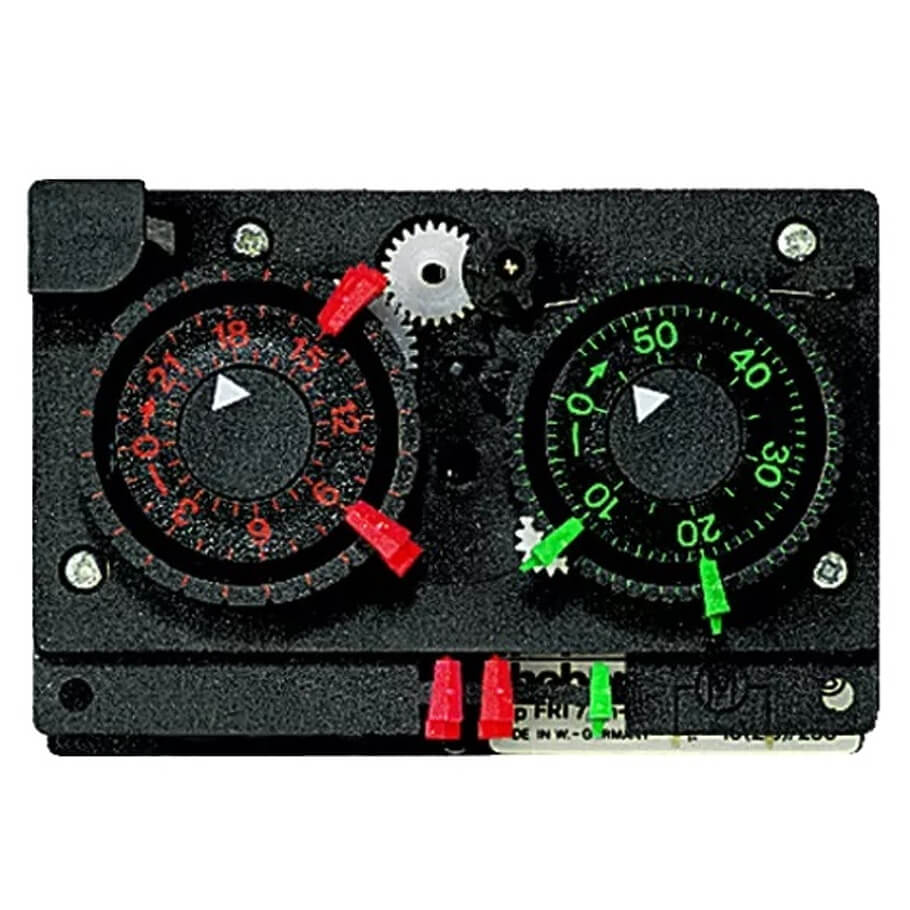

Analogue cooling timer THEBEN Fri 77 h-2
- Analogue cooling time switch with daily and short time program
- Tappet
- 2 separate switching discs
- 24 hour switching disc for hour preselection
- 60 minute switching disc for setting short contact duration
Specifications
| Model | Fri 77 h-2 |
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Number of channels | 1 |
| Installation type | Drive with quick fastening for DIN rail |
| Type of connection | Screw terminals |
| Program | Daily and defrost program |
| Switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 2.5 A |
| Shortest switching times | 2 min, 1 h |
| Programmable every | 1 min, 1 h |
| Time accuracy at 25 °C | Synchronised with mains |
| Type of contact | Changeover contact |
| Switching output | Potential-free, not for SELV |
| Stand-by consumption | 0.9 W |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 00 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -10°C ... 50°C |
- Bảo hành: 12 tháng.
Giá: 2.704.000 VND
