0916 287 068 AC1300 Wireless All-in-One Business Router RUIJIE RG-EG105GW(T)
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng RUIJIE >> AC1300 Wireless All-in-One Business Router RUIJIE RG-EG105GW(T)
.jpg "AC1300 Wireless All-in-One Business Router RUIJIE RG-EG105GW(T)")
Mã số:04621353

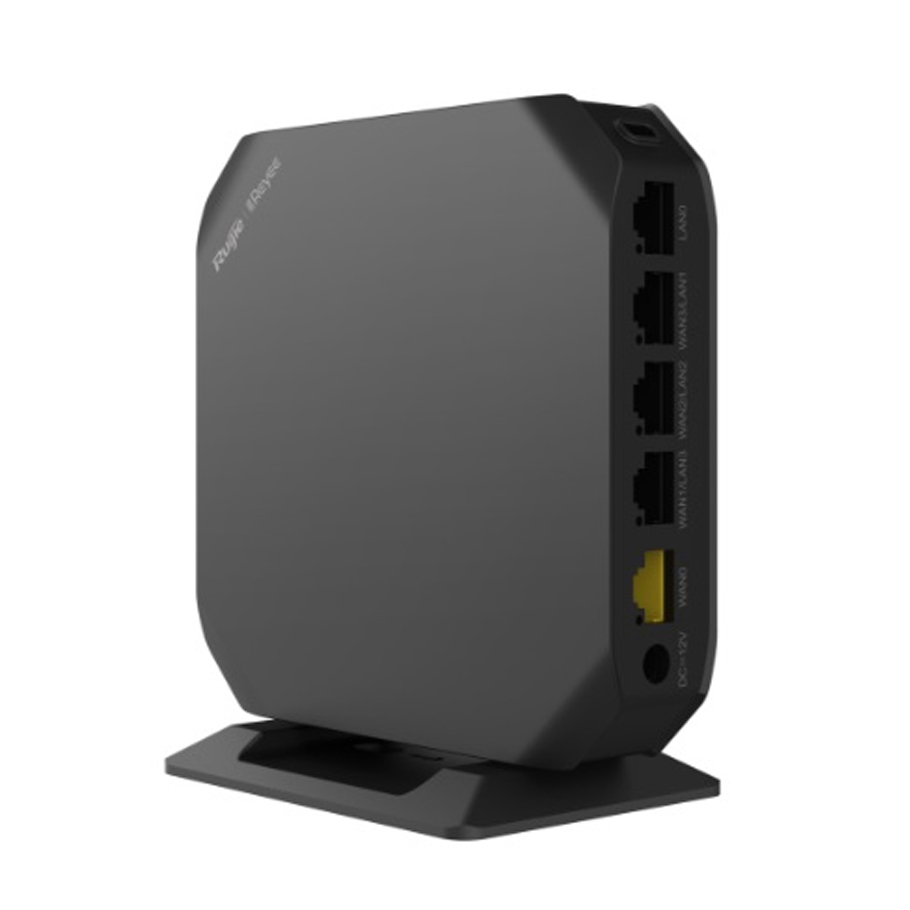

AC1300 Wireless All-in-One Business Router RUIJIE RG-EG105GW(T)
- A professional wireless router for small size businesses.
- Power on, business on, easy to set up the whole network by Ruijie Cloud APP.
- Press button, Reyee Mesh networking done.
- Easy to customize portal page, what you see is what you get.
- Decent design, flexible installation on desktop or wall.
- Secure access internal NVR/IPC remotely, even dynamic or private IP on uplink.
Specifications
| Wireless Basic Specification | |
| Radio | Dual-stream Dual-band |
| Protocol | Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1) Wi-Fi 4 (IEEE 802.11n) 802.11a/b/g |
| Operating Bands | 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz 802.11a/n/ac: 5.150 GHz ~ 5.350 GHz, 5.725 GHz ~ 5.850 GHz Country-specific restriction apply. Egypt: 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz 802.11a/n/ac: 5.150 GHz ~ 5.350 GHz |
| Antenna | Built-in Omnidirectional Antennas (2.4 GHz: 3dBi, 5 GHz: 4dBi) |
| Spatial Streams | 2.4 GHz: 2x2 MIMO 5 GHz: 2x2 MIMO |
| Max Throughput Rate | Up to 400 Mbps at 2.4 GHz Up to 867 Mbps at 5 GHz 1.267 Gbps per AP |
| Maximum Wi-Fi Clients | 110 |
| Recommended Wi-Fi Clients | 80 |
| Modulation | OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMOOFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Receive Sensitivity | 11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps) 11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps) 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15 11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9) 11ac HT40: -79 dBm (MCS0), -57 dBm (MCS9) 11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9) |
| Wireless Basic Specification | |
| Maximum Transmit Power | EIRP ≤ 32 dBm (2.4GHz) ≤ 32 dBm (5GHz) country-specific restrictions apply. Myanmar: 2400~2483.5MHz ≤ 20dBm 5150~5350MHz ≤ 23dBm 5470~5850MHz ≤ 25dBm Thailand: 2400 MHz~2483.5 MHz ≤ 20 dBm 5150 MHz~5350 MHz ≤ 23 dBm 5470 MHz~5725 MHz ≤ 25 dBm 5725 MHz~5850 MHz ≤ 30 dBm Egypt: 5.150 GHz ~ 5.350 GHz: ≤20 dBm (EIRP) 2.4 GHz ~ 2.4835 GHz: ≤20 dBm (EIRP) |
| Router Basic Specification | |
| Fixed WAN Port | 1 × 10/100/1000 Base-T |
| Fixed LAN Port(s) | 1 × 10/100/1000 Base-T |
| LAN/WAN Switchable Port(s) | 3 × 10/100/1000 Base-T |
| Performance | 600 Mbps (1500Byte, NAT+Flow Audit are enabled) 300 Mbps (1500Byte, NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control are enabled) |
| Recommended Total Clients | 150 |
| Power Consumption | ≤ 15 W |
| System | |
| CPU | 2 Cores, 880 MHz |
| SDRAM/RAM | 256 MB |
| Flash Memory | 32 MB SPI NOR FLASH |
| Hardware Feature | |
| Power Supplies | DC 12V/1.5A |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm (Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.39 in. ) |
| Indicator | 1 × system LED indicator 3 × Mesh LED indicator |
| Buttons | 1 × Reset button 1 × Mesh button |
| Dimensions(W × D × H) | 120 mm × 120 mm × 28 mm (without mounting plate) |
| Weight | 0.251 kg (without mounting plate) |
| Installation | Desk-mount /Wall-mount |
| MTBF | > 400000 Hours |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% Noncondensing |
| Storage Humidity | 5% to 95% Noncondensing |
| Port Surge | 4kV |
| IP(Ingress Protection) | IP30 |
- Bảo hành: 3 năm.
Giá: 1.980.000 VND
(Đã bao gồm VAT)
