0916 287 068 60W Ultra PoE Ethernet Injector PLANET POE-173
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng PLANET >> 60W Ultra PoE Ethernet Injector PLANET POE-173
Mã số:04028649

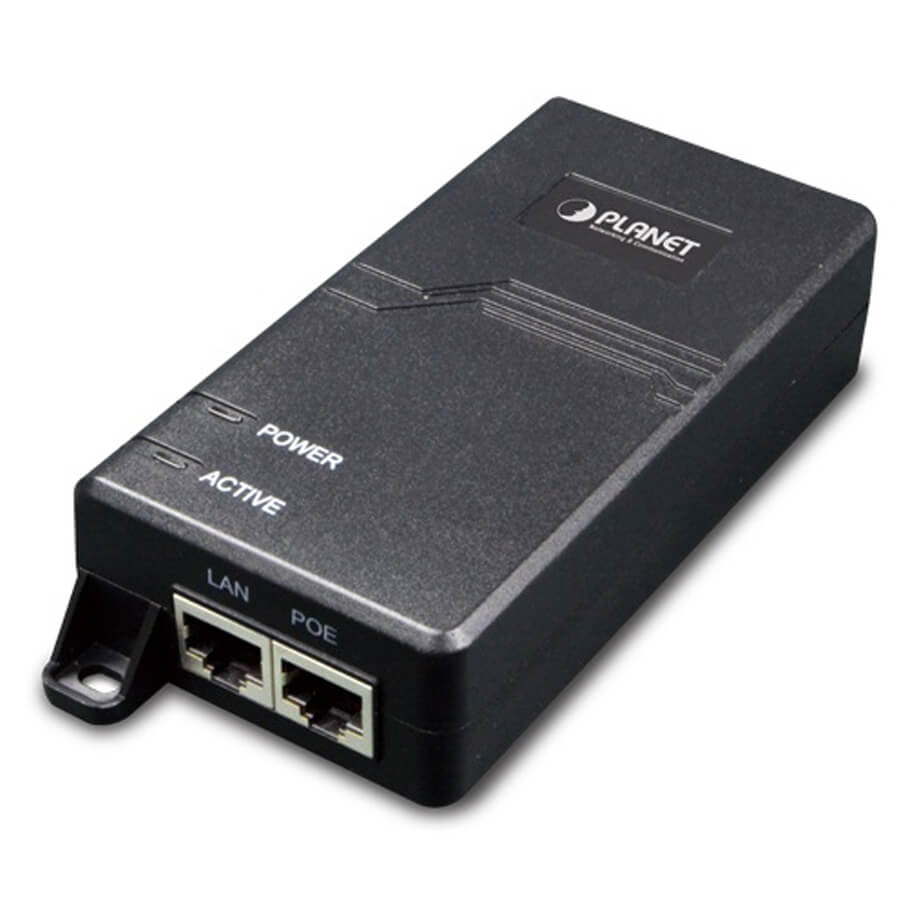

60W Ultra PoE Ethernet Injector PLANET POE-173
Interface
- 1-Port 10/100/1000Mbps Data + Power output
- 1-Port 10/100/1000Mbps Data input
Power over Ethernet
- Ultra Power over Ethernet PSE
- Up to 60 watts of power on 4-pairs UTP
- Backward compatible with IEEE 802.3at/af PD device
- Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation
- Remote power feeding up to 100m
Hardware
- All-in-one compact size design
- Internal power supply
- LED indicators for Power LED and Active LED (PoE ready / In-use)
Specifications
| Model | POE-173 |
| Hardware | |
| Interface | LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-320 C6 |
| Network Cable | Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m 802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 227g |
| Unit Output Voltage | DC 50-57V, 1.2A |
| Power Requirements | 100-240V AC @50/60Hz, 1.5A max. |
| Power Consumption | 60W max. |
| Power over Ethernet | |
| PoE Standard | Ultra PoE over 4-pairs UTP, High Power over Ethernet End-Span / Mid-Span PSE |
| PoE Power Supply Type | End-Span + Mid-Span |
| PoE Power Output | DC 50-57V/60-watt PoE via 4-pairs DC 50V-57V/30-watt PoE via 2-pairs Standards Conformance |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 70°C |
| Operating Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
- Bảo hành: 12 tháng.
Giá: 1.260.000 VND
(Đã bao gồm VAT)
