0916 287 068 4 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1105P-EI/M
Trang Chủ >>
Thiết bị mạng >> Switch PoE HIKVISION >> 4 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1105P-EI/M
Mã số:04264342

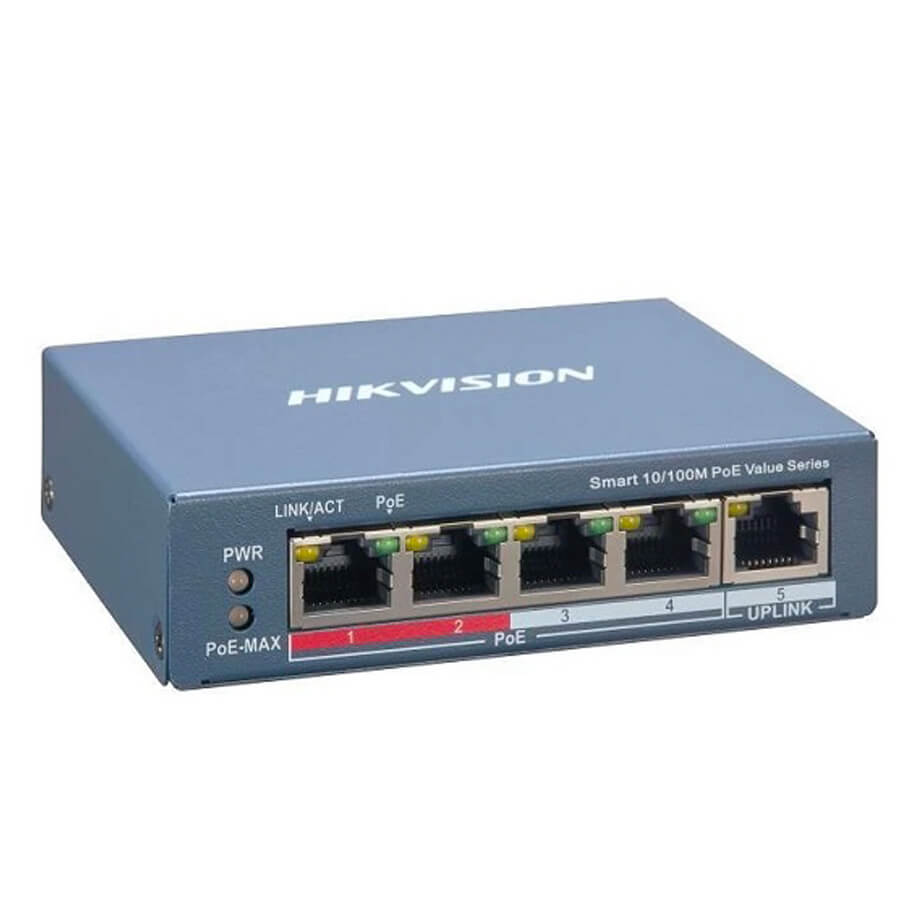

4 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1105P-EI/M
- 4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
Thông số kỹ thuật
| Network Parameters | |
| Ports | 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port |
| Port Type | RJ45 port,full duplex,MDIMDI-X adaptive |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| High Priority Ports | Ports 1 to 2 |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default),Extend mode |
| MAC Address Table | 2 K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| Internal Cache | 768 Kbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 45 W |
| Software Function | |
| Device Maintenance | Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration. |
| PoE Configuration | Support PoE configuration. |
| Port Configuration | Support port configuration (rate/duplex/flow control/port enabling), remote configuratio, and 1-2 high-priority ports. |
| General | |
| Shell | Metal material, fan-free design |
| Weight | 0.2 kg |
| Dimensions (W × H × D) | 105.00 mm × 27.60 mm × 83.10 mm |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 1.04 A |
| Max. Power Consumption | 50 W |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
- Bảo hành: 24 tháng.
Giá: 636.000 VND
(Đã bao gồm VAT)
