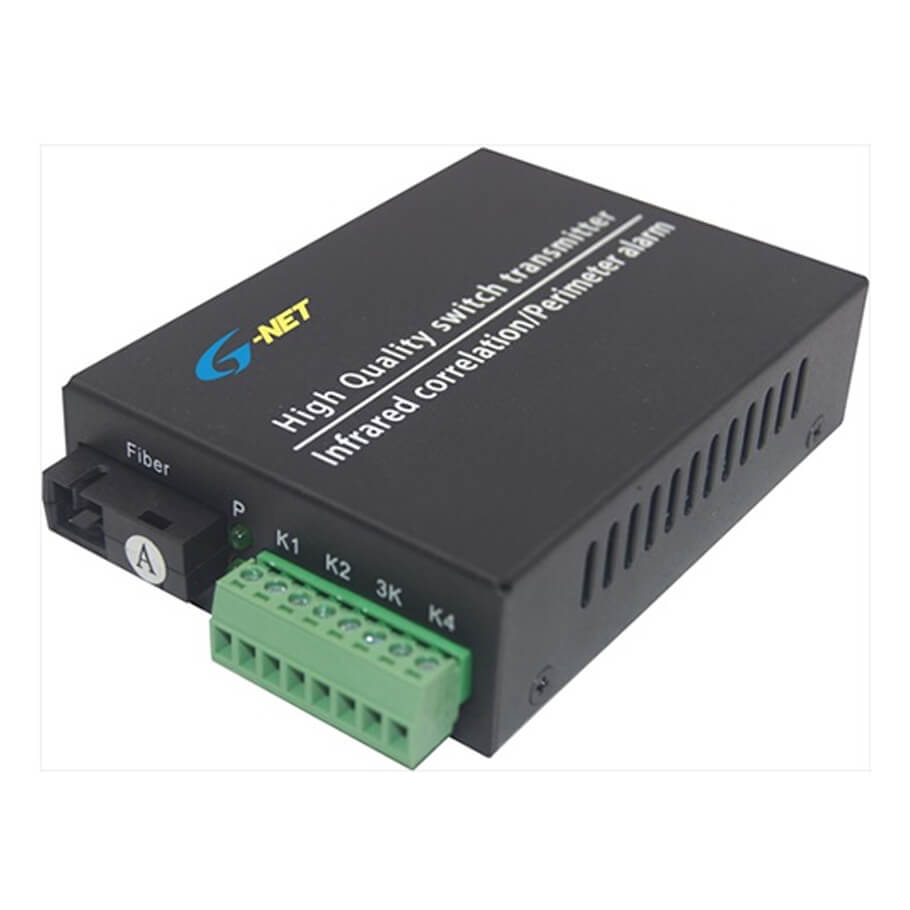

1CH Forward Contact Closure Converter GNET G-2K-FC20T/R
- 2CH Forward Contact Closure (Normal Closed/Normal Open), Single Fiber, 20KM, FC.
- Support Point-to-Point connection.
- LED indicators display the working status,supporting simple trouble shooting.
- Plug and play, no configuration required.
- Desktop, easy to install and use.
Specification
| Contact Closure | |
| Number of Channels | 2 Channel Forward |
| Connector | Terminal Block |
| Data Formats | Contact Closure, TTL |
| Data Rate | DC to 200Kbps |
| Bit Error Rate | < 10E-9 |
| Optical | |
| Fiber mode | Single-mode, Single fiber |
| Connector | Simplex FC/UPC |
| Wavelength | 1310nm, 1550nm |
| Transmission Distance | 20km |
| Power | |
| Power Adapter Input Voltage | AC 100-240V (External Power Adapter) |
| Power Adapter Output Voltage | DC 5V |
| Mechanical | |
| Case | Metal |
| Cooling way | Natural cooling,fanless design |
| Installation | Desktop |
| Dimension | 90 x 70 x 25 mm (L x W x H) |
| Environmental | |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 0-95% (no condensation) |
| MTBF | >100,000 hours |
- Bảo hành: 24 tháng.
