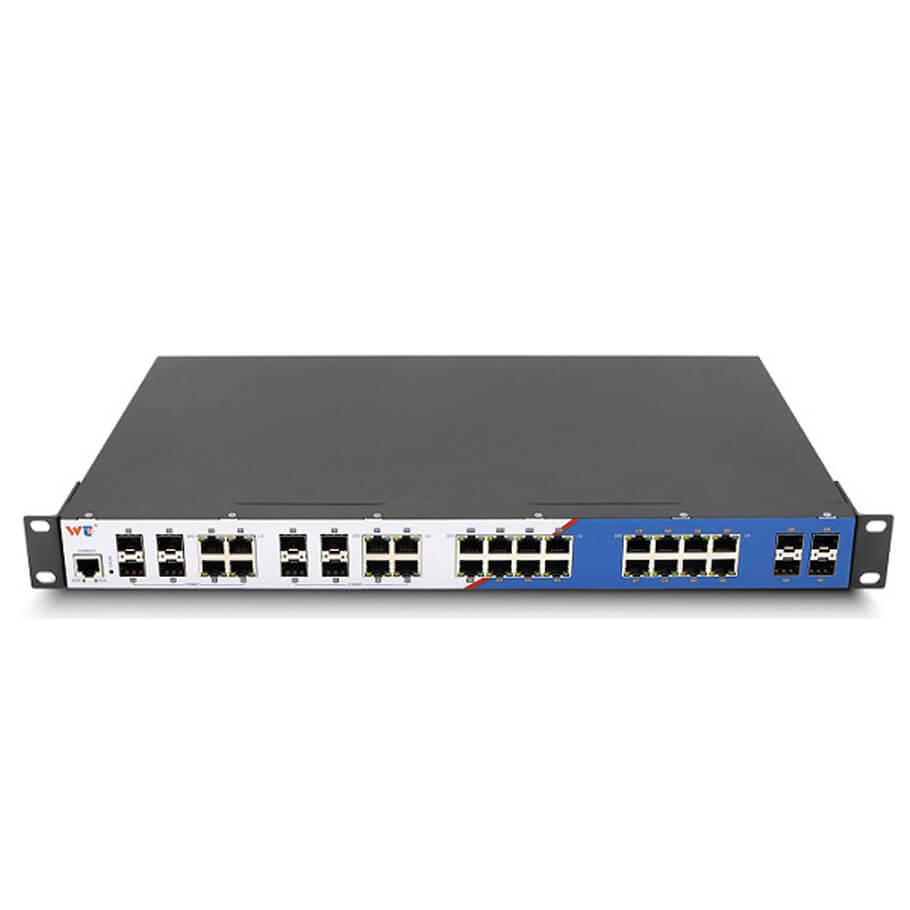

16-port GE + 4-port 1G SFP + 8-port 1G Combo Layer 3 Managed Switch WINTOP YT-CM3728-4GF8GC16GT

Trang Chủ >> Thiết bị mạng >> Switch WINTOP >> 16-port GE + 4-port 1G SFP + 8-port 1G Combo Layer 3 Managed Switch WINTOP YT-CM3728-4GF8GC16GT
Mã số:04578859
16-port GE + 4-port 1G SFP + 8-port 1G Combo Layer 3 Managed Switch WINTOP YT-CM3728-4GF8GC16GT

16-port GE + 4-port 1G SFP + 8-port 1G Combo Layer 3 Managed Switch WINTOP YT-CM3728-4GF8GC16GT

- 4 × 1000Base-X SFP slot + 8 × 1000Base Combo port + 16 × 1000Base-T RJ45 port single power, AC220V with layer 3  Management no fans, support static routing RIP.

Features

- Supports 4K 802.1Q VLAN to simplify network planning.

- Supports IGMP Snooping and GMRP for filtering multicast traffic.

- Support IPv4/IPv6 dual protocol stack.

- Line-speed L2/L3 forwarding capability.

- QoS (IEEE 802.1p and DSCP) improves data delivery certainty.

- RMON provides more effective network monitoring and prediction capabilities.

- Port mirroring function assists in online troubleshooting.

- Supports 255 ACL access controls based on vlan and mac.

- Supports one-click restore to factory settings.

Technical parameters

Support standards IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-T)
IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3ad (port aggregation), IEEE802.3x (flow control)
IEEE 802.1p (priority), IEEE 802.1Q (VLAN)
IEEE 802.1D (STP), IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP), IEEE 802.1p (QoS)
Protocol GMPSnooping, GMRP, GVRP, DHCP, SNMPv1/v2c/v3, TFTP, NTP, SNTP, Ping, Traceroute, RMON, HTTPS, SSH, Telnet, Syslog, ERPS, MLD, LLDP, LACP, ACL
MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
Exchange properties Qos queue: 8
Packet forwarding rate: 126Mpps
VLAN-ID: 1-4094
Backplane bandwidth: 336Gbps
MAC address table: 8K
Message cache size: 32 Mbit
Interface Debug port: RS-232 (Interface type: RJ45 slot)
Gigabit optical port: 1000Mbps (Interface type: SFP slot)
Gigabit electrical port: 10/100/1000Mbps adaptive, Full/Half duplex mode, supports MDI /MDI-X.
LED indicator : PWR,Link/ACT,SPD,RUN
Power requirements Input voltage: AC220V
Physical properties Shell: Iron shell IP30 protection
Size: 440mm x 280mm x 44mm
Weight: 4380g​
Installation method: rack
Environmental restrictions Operating temperature: -40 ~75°C (-40~167°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185 °F)
Ambient relative humidity: 5 ~ 95% (non-condensing)
Standards and Certifications Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4 (4 kv port lightning protection, 4 kv power supply lightning protection),
Vibration resistance: IEC 60068-2-6
Impact resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
Certification: CE, FCC, Rohs, Ministry of Industry and Information Technology network access license, Ministry of Public Security inspection report
MTBF (mean time between failures)  Time: 500000 hours

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
