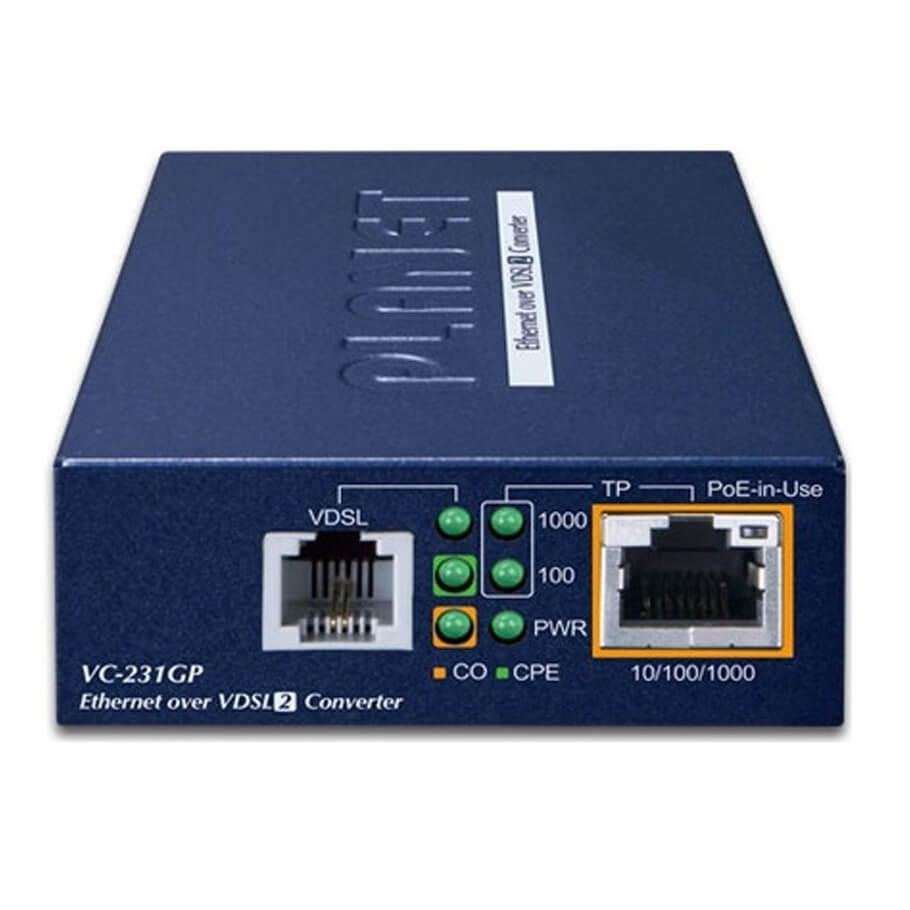

0916 287 068 1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter PLANET VC-231GP
1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter PLANET VC-231GP
- Support 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/802.3at PoE Injector.
- Support 1 RJ11, connector for xDSL port with VDSL2 or ADSL2+ connection.
Power over Ethernet
- Complies with IEEE 802.3at/af PoE Plus end-span PSE
- Supports PoE power up to 30.8 watts per PoE port
- Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
- Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
- Remote power feeding up to 100m
- IEEE 802.3at/af splitter devices compatible
VDSL2 Features
- VDSL2 stand-alone transceiver for simple bridge modem application
- Cost-effective bridge function to connect two Ethernet LANs
- Point-to-multipoint application: Compatible with PLANET and third-party VDSL2 IP DSLAM for last-mile solution
- Point-to-point application: LAN to LAN extension over phone wire
- Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)
- Voice and data communication can be shared simultaneously based on the existing telephone wire with distance up to 1.4km
- ITU-T G.993.2 VDSL2 standard
- ITU-T G.993.5 G.Vectoring and G.INP
- DMT-based coding technology
- CO/CPE mode selectable via DIP switch
- Selectable target band plan (symmetric and asymmetric) and SNR margin
- Supports IEEE 802.1Q VLAN tag transparency
Hardware and Installation
- Compact size, wall-mountable design; ideal solution for space-limited locations
- Advantage of minimum installation time (Simply by Plug and Play)
- Metal case, good for heat sinking
- Supports extensive LED indicators for network diagnosis
- Additional POTS splitter to share voice and data
- Supports 6KV DC Ethernet ESD protection
Đặc tính kỹ thuật
| Hardware Specifications | |
| LAN Port | 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| VDSL Port | 1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km |
| Phone Port | Additional splitter for POTS connection |
| DIP Switch & Functionality | 4-position DIP switch - CO or CPE mode selectable - Selectable G.INP and interleaved mode - Selectable target Band plan - Selectable target SNR mode |
| LED Indicators | 1 Power: Green 1 1000BASE-T LNK/ACT: Green 1 100BASE-TX LNK/ACK: Green 1 VDSL: Green 1 CO: Green 1 CPE: Green 1 PoE-in-use: Amber |
| ESD Protection | 6KV DC |
| Enclosure | Metal |
| Installation | Wall mount or DIN rail with optional kit |
| Dimensions (W x D x H) | 97 x 70 x 26 mm |
| Weight | 206g |
| Power Requirements | DC 54V, 0.74A external power |
| Power Consumption (VDSL2 + Ethernet + PoE) | CO Mode: 32.4 watts/110BTU CPE Mode : 32 watts/109BTU |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at PoE+ PSE |
| PoE Power Output Budget | DC 52V, 30 watts |
| PoE Power Supply Type | End-span |
| Power PIN Assignment | 1/2(+), 3/6(-) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Maximum Packet Size | 1522 bytes |
| System Specifications | |
| VDSL Compliance | VDSL-DMT - ITU-T G.993.1 VDSL - ITU-T G.997.1 - ITU-T G.993.2 VDSL2 (Profile 17a/30a support) - ITU-T G.993.5 G.Vectoring - ITU-T G.998 - G.INP |
| ADSL Compliance | Capable of ADSL2/2+ standard - ITU G.992.3 G.dmt.bis - ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps |
| Performance* (Downstream/Upstream) | - Interleave, Asym, 8dB 200M ----> 190Mbps/90Mbps 400M ----> 163Mbps/64Mbps 600M ----> 110Mbps/34Mbps 800M ----> 73Mbps/18Mbps 1000M --> 49Mbps/10Mbps 1200M --> 39Mbps/8Mbps 1400M --> 25Mbps/6Mbps - Interleave, Sym, 8dB 200M ----> 149Mbps/141Mbps 400M ----> 116Mbps/115Mbps 600M ----> 72Mbps/70Mbps 800M ----> 45Mbps/44Mbps 1000M --> 26Mbps/16Mbps 1200M --> 26Mbps/12Mbps 1400M --> 29Mbps/12Mbps - G.INP, Asym, 8dB 200M ----> 192Mbps/93Mbps 400M ----> 159Mbps/64Mbps 600M ----> 106Mbps/37Mbps 800M ----> 68Mbps/19Mbps 1000M --> 49Mbps/8Mbps 1200M --> 29Mbps/8Mbps 1400M --> 26Mbps/6Mbps - G.INP, Sym, 8dB 200M ----> 150Mbps/150Mbps 400M ----> 114Mbps/113Mbps 600M ----> 69Mbps/69Mbps 800M ----> 49Mbps/39Mbps 1000M --> 27Mbps/24Mbps 1200M --> 26Mbps/12Mbps 1400M --> 21Mbps/11Mbps - Interleave, Asym, 12dB 200M ----> 177Mbps/83Mbps 400M ----> 145Mbps/57Mbps 600M ----> 92Mbps/31Mbps 800M ----> 59Mbps/15Mbps 1000M --> 44Mbps/10Mbps 1200M --> 32Mbps/6Mbps 1400M --> 22Mbps/3Mbps - Interleave, Sym, 12dB 200M ----> 136Mbps/129Mbps 400M ----> 100Mbps/101Mbps 600M ----> 58Mbps/57Mbps 800M ----> 42Mbps/36Mbps 1000M --> 23Mbps/12Mbps 1200M --> 23Mbps/10Mbps 1400M --> 17Mbps/11Mbps - G.INP, Asym, 12dB 200M ----> 177Mbps/85Mbps 400M ----> 144Mbps/51Mbps 600M ----> 87Mbps/29Mbps 800M ----> 55Mbps/15Mbps 1000M --> 40Mbps/8Mbps 1200M --> 38Mbps/8Mbps 1400M --> 26Mbps/4Mbps - G.INP, Sym, 12dB 200M ----> 136Mbps/133Mbps 400M ----> 97Mbps/102Mbps 600M ----> 54Mbps/56Mbps 800M ----> 40Mbps/35Mbps 1000M --> 24Mbps/22Mbps 1200M --> 24Mbps/9Mbps 1400M --> 18Mbps/12Mbps |
| Standards Conformance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998 |
| xDSL Compatibility | |
| VDSL2 | VC-231G VC-234G VC-231 VC-234 VC-820M VDR-301N |
| Environment | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
- Bảo hành: 24 tháng.
