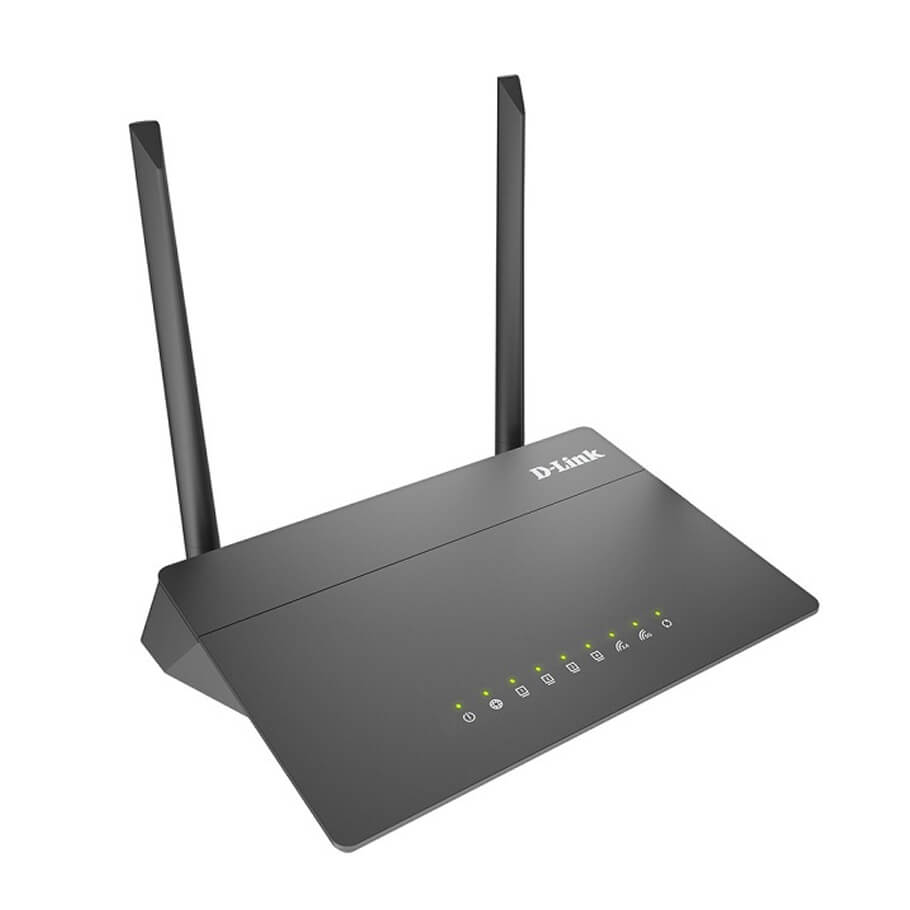

Wireless AC750 Dual Band Router D-Link DIR-806A
Wireless AC750 Dual Band Router D-Link DIR-806A
Wireless Interface
- Using the DIR-806A device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). Simultaneous activity of 2.4GHz band and 5GHz band allows performing a wide range of tasks. The router can operate as a base station for connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at the wireless connection rate up to 733Mbps).
Secure Wireless Connection
- The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, WPS, WMM.
Advanced Capabilities of Wirelss Network
- Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or routers – when the smart adjustment function is configured on each of them, a client always connects to the access point (router) with the highest signal level. Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings and maximum rate limitation. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and resources of the router's LAN.
Security
- The wireless router DIR-806A includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN. In addition, the router supports IPsec and allows to create secure VPN tunnels. Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices.
Easy configuration and update
- You can configure the settings of the wireless router DIR-806A via the user-friendly web-based interface. The configuration wizard allows you to quickly switch DIR-806A to one of the following modes: router (for connection to a wired or wireless ISP), access point, repeater, or client, and then configure all needed setting for operation in the selected mode in several simple steps. Also DIR-806A supports configuration and management via mobile application for Android and iPhone smartphones. You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.
Specifications
Model | DIR-806A |
Hardware | |
Processor | MTK7620DA (480 MHz) |
RAM | 64MB, DDR2, built in processor |
Interfaces | 10/100BASE-TX WAN port 4 10/100BASE-TX LAN ports |
LEDs | Power Internet 4 LAN LEDs 2.4G WLAN 5G WLAN WPS |
Buttons | POWER button to power on/power off WIFI button to enable/disable wireless network WPS button to set up wireless connection RESET button to restore factory default settings |
Antenna | Two external non-detachable antennas (5dBi gain for 2.4GHz and 5GHz) One internal antenna (3dBi gain for 2.4GHz) |
MIMO | 2 x 2 (for 2.4GHz) |
Power connector | Power input connector (DC) |
Software | |
WAN connection types | PPPoE IPv6 PPPoE PPPoE Dual Stack Static IPv4 / Dynamic IPv4 Static IPv6 / Dynamic IPv6 PPPoE + Static IP (PPPoE Dual Access) PPPoE + Dynamic IP (PPPoE Dual Access) PPTP/L2TP + Static IP PPTP/L2TP + Dynamic IP |
Network functions | Support of IEEE 802.1X for Internet connection DHCP server/relay Advanced configuration of built-in DHCP server Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation Automatic obtainment of LAN IP address (for access point/repeater/client modes) DNS relay Dynamic DNS Static IP routing Static IPv6 routing IGMP Proxy RIP Support of UPnP IGD Support of VLAN WAN ping respond Support of SIP ALG Support of RTSP WAN reservation Autonegotiation of speed, duplex mode, and flow control/Manual speed and duplex mode setup for each Ethernet port Built-in UDPXY application |
Firewall functions | Network Address Translation (NAT) Stateful Packet Inspection (SPI) IP filter IPv6 filter MAC filter URL filter DMZ Prevention of ARP and DDoS attacks Virtual servers Built-in Yandex.DNS web content filtering service |
VPN | IPsec/PPTP/L2TP/PPPoE pass-through IPsec tunnels |
Management | Local and remote access to settings through TELNET/WEB (HTTP/HTTPS) Bilingual web-based interface for configuration and management (Russian/English) Support of D-Link Assistant application for Android and iPhone smartphones Notification on connection problems and auto redirect to settings Firmware update via web-based interface Automatic notification on new firmware version Saving/restoring configuration to/from file Support of logging to remote host Automatic synchronization of system time with NTP server and manual time/date setup Ping utility Traceroute utility TR-069 client SNMP agent |
Wireless Module Parameters | |
Standards | IEEE 802.11a/n/ac IEEE 802.11b/g/n |
Frequency range | 2400 ~ 2483.5MHz 5150 ~ 5350MHz 5650 ~ 5725MHz |
Wireless connection security | WEP WPA/WPA2 (Personal/Enterprise) МАС filter WPS (PBC/PIN) |
Advanced functions | Support of client mode WMM (Wi-Fi QoS) Information on connected Wi-Fi clients Advanced settings Smart adjustment of Wi-Fi clients Guest Wi-Fi / support of MBSSID Rate limitation for wireless network Periodic scan of channels, automatic switch to least loaded channel Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence) |
Others | |
Dimensions (L x W x H) | 205 x 136 x 33 mm |
Power | Output: 12VDC, 0.5A |
Temperature | Operating: from 0 to 40 °C Storage: from -20 to 65 °C |
Humidity | Operating: from 10% to 90% (non-condensing) Storage: from 5% to 95% (non-condensing) |
- Bảo hành: 24 tháng.
