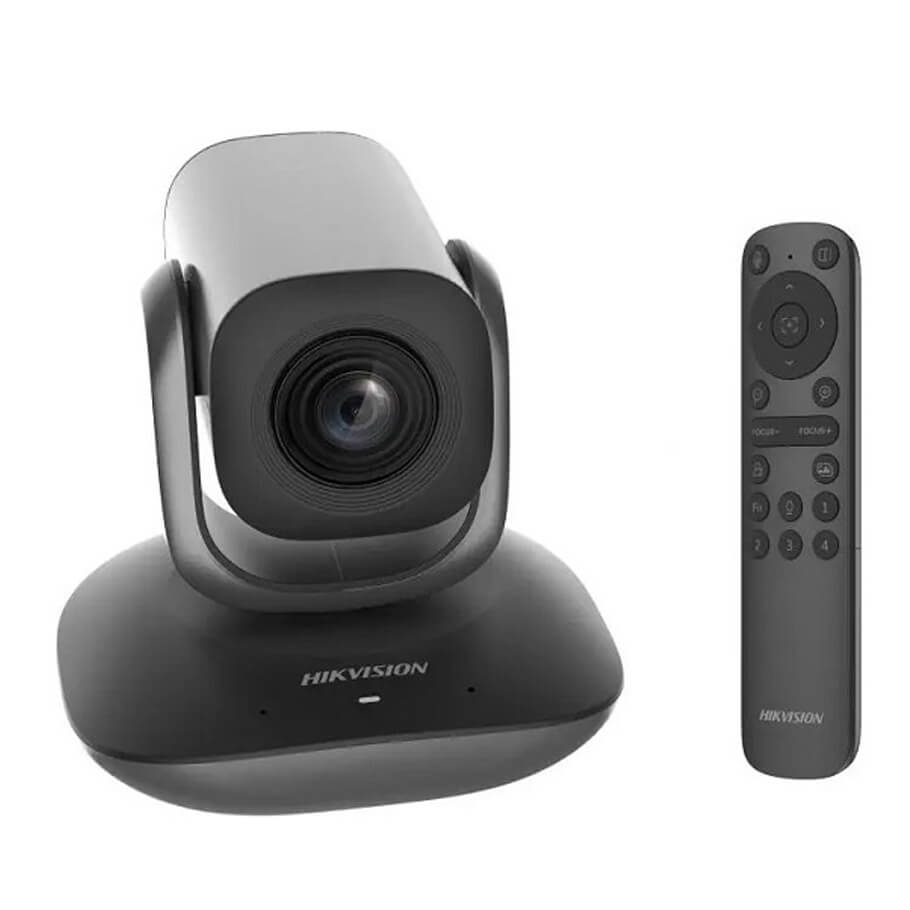

Webcam HIKVISION DS-UVC-P12
- Webcam PTZ chuyên dụng cho phòng họp.
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2MP (1920 × 1080).
- ĐộnNhạy sáng: 0.2 Lux @ (F1.8 to 2.8，AGC ON).
- Ống kính tùy chỉnh từ 3 - 15mm.
- Zoom quang: 5x.
- Zoom số: 4x.
- Góc nhìn: Quay từ -165° đến 165°, quét từ -30° đến 30°.
- Tự động lấy nét.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.2 Lux @ (F1.8 to 2.8，AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: -165° to 165°,Tilt: -30° to 30° |
| Optical Zoom | × 5 |
| Digital Zoom | × 4 |
| Lens | |
| Lens Type | Varifocal lens, 3 to 15 mm |
| Focal Length & FOV | Horizontal FOV: 85° to 24° Vertical FOV: 53° to 14° Diagonal FOV: 93° to 27° |
| Depth of Field | Wide: 0.1 m to ∞; Tele: 0.5 m to ∞ |
| Microphone | |
| Type | MEMS |
| Polar Pattern | 360° omni-directional |
| Pickup Distance | In a radius of up to 5m |
| Amount | dual mic |
| Frequency Response | 100 Hz to 8 kHz |
| Sensitivity | -32 ± 3 dBV/Pa |
| SNR | 70 dB(A) |
| Sampling Rate | 16 kHz/32 kHz/48 kHz |
| Functions | |
| Image Function | Auto/Manual White Balance, Backlight Compensation, Left/Right Flip / Up/Down Flip/Center Mirror |
| Audio Function | Supports steady and transient smart noise reduction, automatic gain control, echo suppression, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high quality |
| LED Indicator | Flashing white: powering on and starting Solid white: normally working Solid red: mute Light off: standby |
| Auto Focus | Yes |
| Communication | |
| Communication Method | USB cable |
| Wired Communication Distance | Cable length: 4.5 m. Transmission distance: 4.5 m. |
| Image | |
| Frame Rate | MJPG/H.264: 1920 × 1080 @60 fps/50 fps/30 fps/25 fps 1280 × 960 @60 fps/50 fps/30 fps/25 fps 1280 × 720 @60 fps/50 fps/30 fps/25 fps 640 × 480 @60 fps/50 fps/30 fps/25 fps 640 × 360 @60 fps/50 fps/30 fps/25 fps |
| YUV: 1920 × 1080 @5 fps 1280 × 960 @5 fps 1280 × 720 @10 fps 640 × 480 @30 (default) /25 fps 640 × 360 @30 fps/25 fps |
|
| NV12: 1920 × 1080 @5 fps 1280 × 960 @10 fps 1280 × 720 @15 fps 640 × 480 @30 fps/25 fps 640 × 360 @30 fps/25 fps |
|
| Wide Dynamic Range (WDR) | ≥120 dB |
| Interface | |
| Device Interface | USB Type C interface, Power interface |
| Audio | 1 line in, 3.5 mm connector 1 line out, 3.5 mm connector |
| Cable | USB Cable: Type C to Type A interface Adapter Extension Cable: DC plug to DC socket |
| Compatibility | |
| System Requirement | Windows 7/8/10/11 Android 8.1 and above version Linux 4.14 and above version macOS 10.12 and above version |
| General | |
| Power | 12 VDC ± 5%, max. 8.4 W |
| Operating Condition | -10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing) |
| Material | Metal, plastic |
| Color | Space gray |
| Dimension | 145.3 mm × 145.6 mm × 145.8 mm |
| Package Dimension | 365 mm × 210 mm × 183 mm |
| Weight | Approx. 960 g |
| With Package Weight | Approx. 2400 g |
| Accessory | |
| Packing List | Camera (including lens cover) × 1 Remote Control × 1 Power Adapter (1.2 m) × 1 Power Adapter Extension Cable (3 m) × 1 Power Adapter Plug × 3 (for British, American, and European standards) USB 2.0 Cable (4.5 m) × 1 Bracket × 1 Screws × 1 Battery × 2 Quick Start Guide × 1 |
- Bảo hành: 24 tháng.
