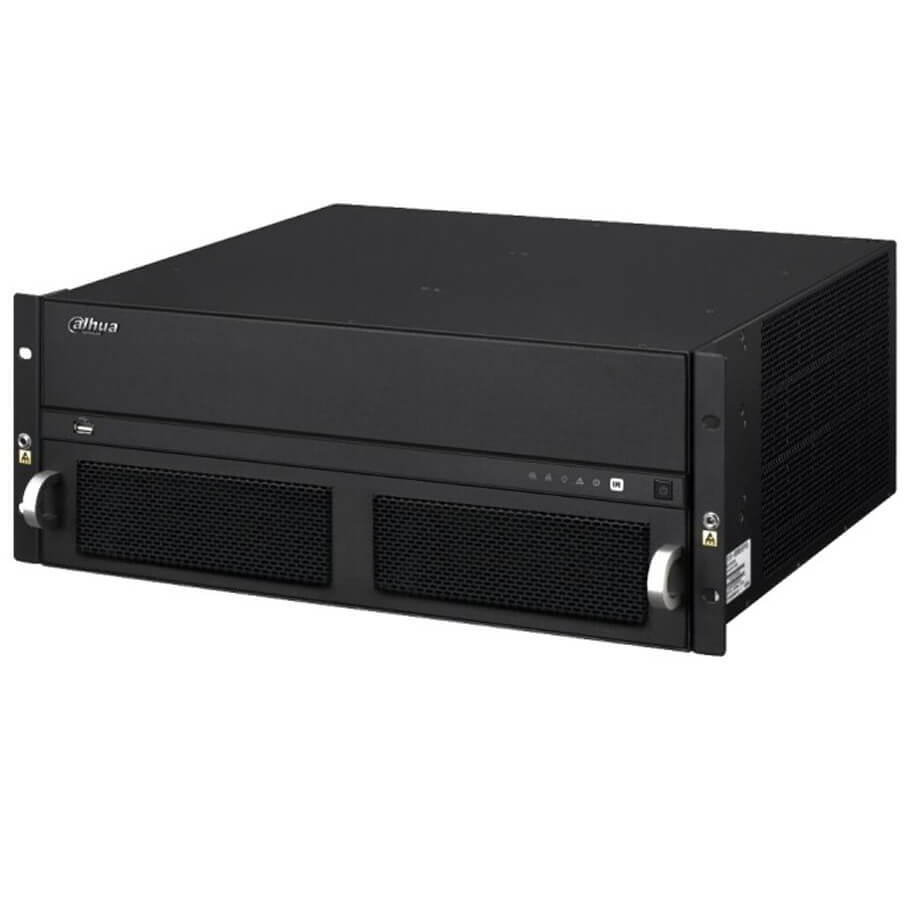

0916 287 068 Trung tâm quản lý cho giải pháp video wall DAHUA M70-4U-E
Trung tâm quản lý cho giải pháp video wall DAHUA M70-4U-E
- 19 inch standard 4U ATCA industry box
- Easy and flexible configuration with pluggable card module design
- 80ch@1080P or 320ch@D1 signal encoding (full configured)
- 80ch@4K or 320ch@1080P or 720ch@720P or 1500ch@D1signal decoding (full configured)
- Support 320ch@1080P H.265 signal decoding (full configured)
- Support 240@D1 nonstandard stream signal decoding (full configured)
- Support max 60 screens splicing
- Support analog/digital video signals input and matrix output
- Support SD/HD video signal matrix switch and output
- Support non-compressed digital signal encoding output
- 6 RJ-45 gigabit network ports for matrix control, preview and online central storage
- Support TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE and etc. network protocols
- Remote cast analog/digital video onto the video-wall
- Remote reboot/upgrade/default setting and etc. operations
- Support VGA signal automatic adjustment
Thông số kỹ thuật
| System Parameter | |
| Main Processor | Quad-core embedded microprocessor |
| Operating System | Embedded Linux |
| Bus | PCI-E |
| Slot | 12 (2 Main Control Board Slot, 10 Video and Audio Function Board) |
| Mainframe | Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan |
| Video Input Card | Max. 10 |
| Video Output Card | Max. 10 |
| Decoding Card Video-Wall Splicing | |
| Splicing | Support video-wall splicing (max 60 LCD display units) |
| Video-Wall | Support Splicing Zoom/ Merge/ Roam/ Overlay |
| Input Source | HD/SD, Digital/Analog (support mixed input) |
| Output Port | HDMI |
| Control Mode | PC client-end/Local Operate Menu/Network Keyboard/IPAD |
| Network | |
| Interface | 6 RJ-45 ports (10/100/1000M), 2 in mainboard and 4 in control board |
| Serial Port | 4 RS232 ports (4 RJ45), for console and control 1 RS485 port |
| USB | 3 USB2.0, 1 USB3.0 |
| Environmental | |
| Power Supply | 100~120V AC, 200~240V AC |
| Power Consumption | ≤600W |
| Dimension | 4U, 482.6×496×177.8 mm |
| Weight | ≤25Kg |
- Bảo hành: 24 tháng.
