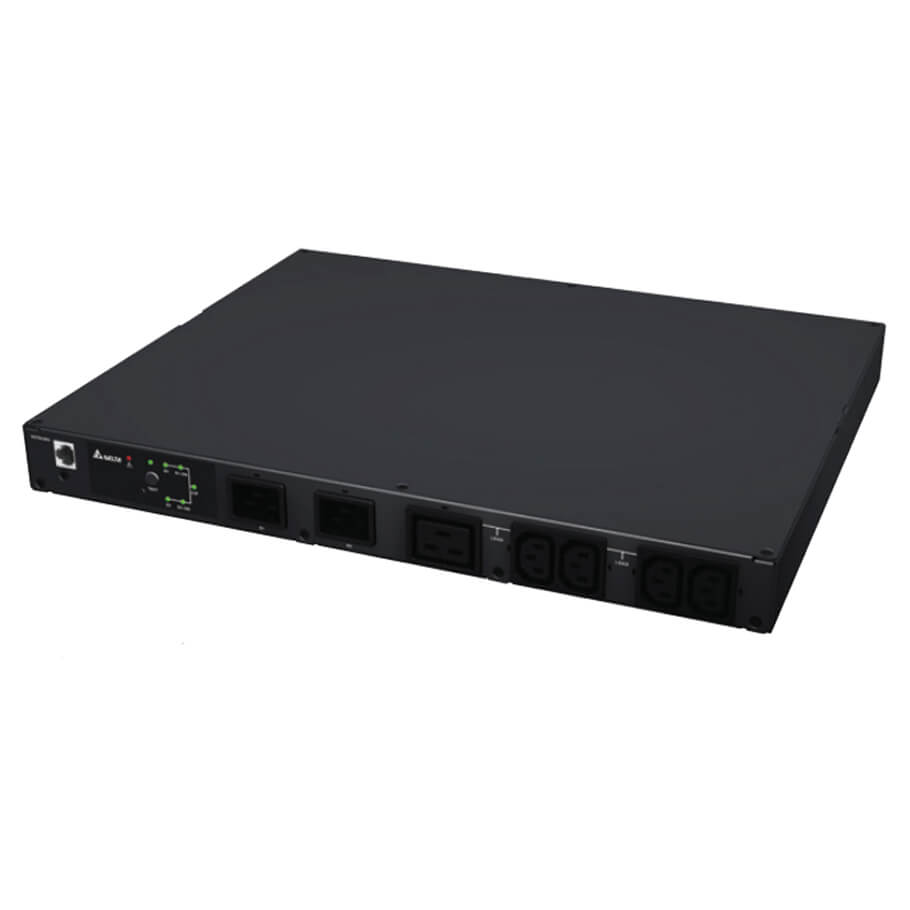

Rack-Mount Static Transfer Switch DELTA STS 1U (16A)
Part number: STS16002SR00035
- The Static Transfer Switch (STS) safeguards the uninterrupted operation of mission critical IT equipment.
- Powered by two independent power sources, the STS rapidly switches from one source to the other automatically when the power supply used to power its connected load fails.
- For datacenter applications the STS allows power drop risk to be shared or distributed to each rack to prevent power loss for the whole system.
- The STS offers an efficient and reliable switch that supports the high redundancy requirements of mission critical power systems.
- Adopts SCR with a relay in parallel as a switching device to increase reliability without sacrificing efficiency.
- Supports power redundant configurations for high reliability.
- Monitors the health of the power source and performs the transfer automatically.
- Rack-mounted type with 1U size for easy installation and relocation.
- Built-in SNMP for remote management.
- LED indicators show power flow.
- Self-test function.
Đặc tính kỹ thuật
| Rated Current | 16A |
| Regulatory | CE / UL |
| Nominal Voltage | 200/208/220/230/240 VAC |
| Display | LED |
| Connection Input | C20 x 2 pcs |
| Connection Output | C13 x 4 + C19 x 1 pcs |
| Communication | SNMP |
| Operating temperature | 0~40°C |
| Typical Transfer Time | 6~10ms |
| Storage temperature | -15~50°C |
| Humidity | 0%~95% RH (non-condensing) |
| Audible Noise (at one meter) | <40 dB |
| Dimensions | 43 x 440 x 385 mm |
| Weight | 4.85kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 3 năm.
