0916 287 068 SFP Transceiver 100Base-BX-U Single-Mode D-Link DEM-220R
Trang Chủ >>
Chuyển đổi Quang-điện >> SFP Transceiver D-Link >> SFP Transceiver 100Base-BX-U Single-Mode D-Link DEM-220R
Mã số:04050232

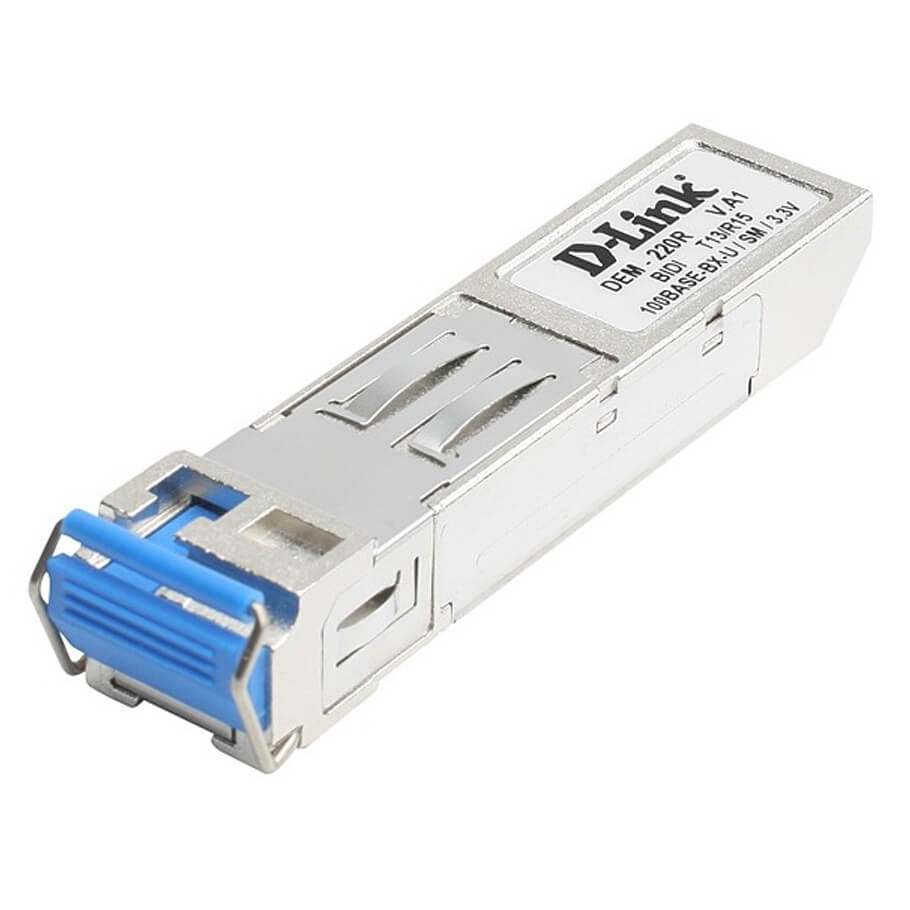

SFP Transceiver 100Base-BX-U Single-Mode D-Link DEM-220R
- Bi-directional SFP-transceivers DEM-220T/ 220R Fast Ethernet optical cable - is external transceivers designed to be installed in ports SFP (Small Form-Factor Pluggable) network devices to transmit and receive data over fiber. Transceivers are made in a compact and provide a 100Base-BX interface for high-speed, reliable transmission of data over long distances and the flexibility needed in today's fiber networks.
Specifications
| Model | DEM-220R |
| Standards | IEEE 802.3ah 100BASE-BX |
| Wavelength | Tx: 1550nm Rx: 1310nm |
| Connector | Simplex LC connector |
| Fiber type | 9/125um Single-mode Fiber |
| Maximum Fiber Cable Length | 20km |
| Transmit Power Range | -14 to -8dBm |
| Receive Power Range | -32 to -3dBm |
| Sensitivity | -32dBm |
| Power budget | Minimum: 18dB Maximum: 30dB |
| Power | 3.3V |
| Supply Current | 200mA |
| Dimensions | 55.5 x 13.4 x 28.11mm |
| Weight | 19.1g |
- Bảo hành 36 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
