0916 287 068 Sensor Speaker TAKEX PV-12(E)
.jpg "Sensor Speaker TAKEX PV-12(E)")

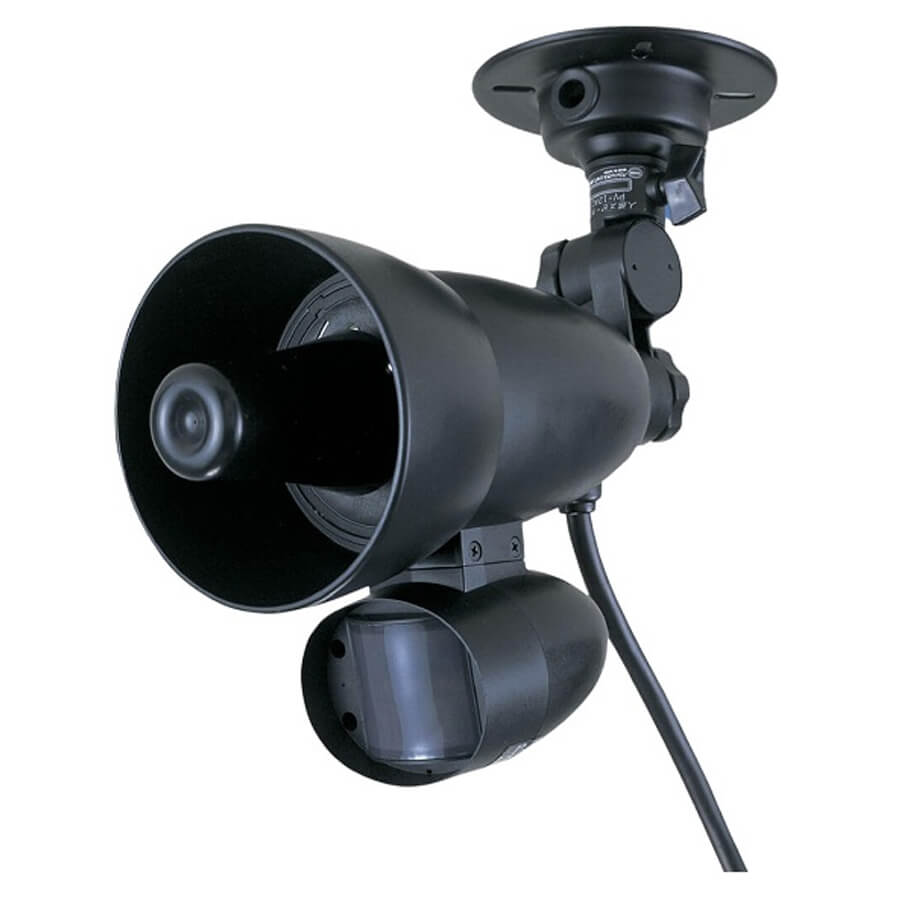

Sensor Speaker TAKEX PV-12(E)
- Sensor Speaker is designed to detect movement when the sensor detects people or cars, it switches on the announcement recorded in the internal speech synthesised LSI.
- General Description: Sensor Speaker is the product which combines a passive infrared sensor to detect the infrared（=body temperature）emitted from a human body or vehicles and trigger the speech synthesis LSI. Sensor Speaker is designed for wide applications such as an announcement speaker in various institutions or alarm/warning speaker at dangerous areas or construction sites.
- Genuine speech synthesis device with PIR sensor: It sends a message only when the built-in sensor detects people or cars. The horn speaker with max. 100dB/1m will be suitable for professional use.
- Easy recording and playback: Max. recording time:8 sec. Simple recording by facing the microphone. Possible to record various messages any time, so applications are variable.
- Output contact convenient to trigger other systems: Dry contact relay equipped. Easy to connect to lights, chimes buzzer, and camera system, etc.
- Others
+ Sound volume adjustment.
+ Memory back-up; max.20 days record reserved after power off.
+ Rain proof.
Specification
| Description | Sensor Speaker |
| Model number | PV-12 |
| Detection system | Passive infrared |
| Detection Area | Wide angle (max. : 12m, 39') |
| Sensitive zone | 24 zones (12 pairs) |
| Sensitivity volume | Variable 20 to 180% (medium: 100%) |
| Power voltage | DC12V+/-2V (non-polarity) |
| Current consumption | (Standing by) below 20mA (Operating) below 500mA (Max. Vol.) |
| Output signal | Dry contact relay : 1C Contact capacity : AC/DC 30V, 0.5A (Resistive load) Output time : eight (8) seconds |
| Power timer | Sixty (60) seconds (no detection, recording O.K.) |
| Sound synthesis method | ADM method |
| Record method | Built-in condenser microphone |
| Record/Playback time | Eight (8) seconds Sound memory capacity : 256 Kbit S-RAM |
| Record memory back-up time | More than 20 days with non-electrified conditions (temp.=25C, electrified over 30 minutes). |
| Sound output motion | One-shot eight (8) seconds playback motion by detection signal (no retrigger during playback). |
| Sound output power | Max. 2W Over 100dB (1m ahead) at a right record level. |
| Sound volume adjustment | Continuously variable from 0 to max. |
| Indication LED | [ Record ] Level indicator xfunction Right: blink, underrate: LED on, overrate: LED off. [ Playback ] LED on during playback. |
| Ambient temperature | -20C to +50C (no dew, no frost) |
| Installation place | Indoor/outdoor (rainproof) |
| Wiring method | Lead wire (5 core), 40' / 1m attached. |
| Installation Method | Screw on flange. |
| Weight | 1050g, including wire / 100g. |
| External appearance | Black (PC resin) |
| Attachments | Installation flange, fixing screws. |
- Bảo hành: 12 tháng.
