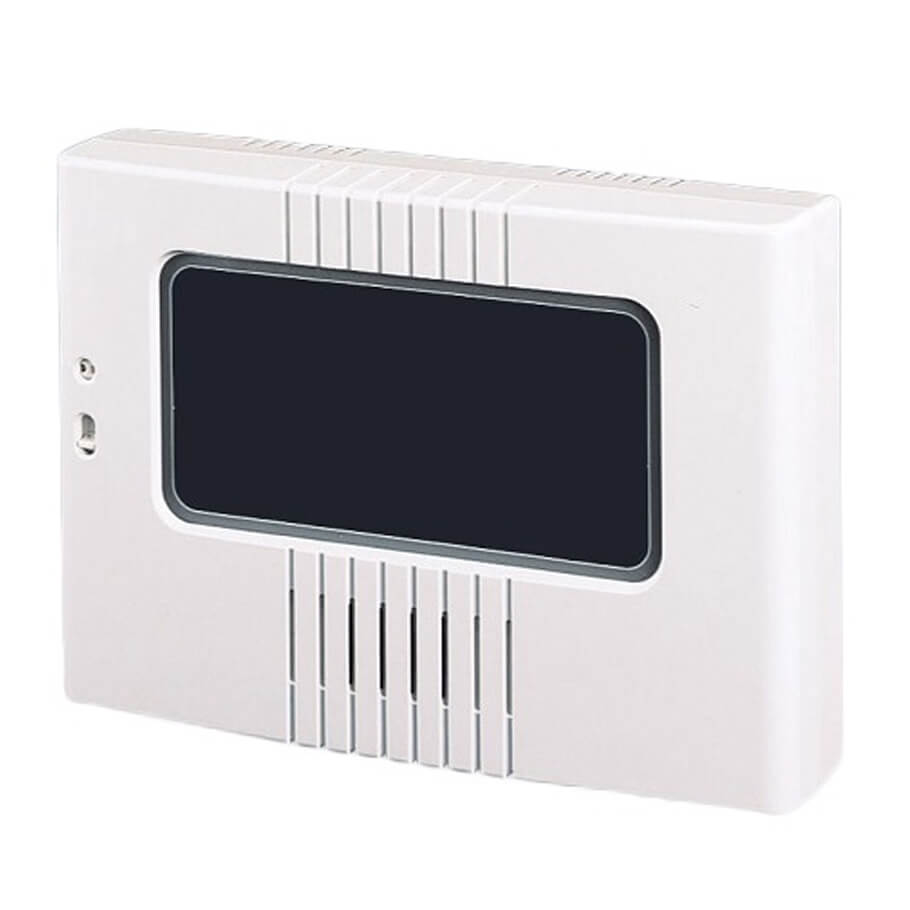

Repeater TAKEX BUS-RT1A

Trang Chủ >> Báo cháy-Báo trộm >> Báo động TAKEX >> Repeater TAKEX BUS-RT1A
Mã số:13308157
Repeater TAKEX BUS-RT1A

Repeater TAKEX BUS-RT1A

- By connecting the controller to the terminal device, it is possible to extend 1,000m (total wiring 4,000m). In addition, since up to three repeaters can be connected in series, the maximum distance between the controller and the final terminal is 4,000m.

- Applicable models are BUS-C630-2, BUS-C630-3, BUS-C730-3, BUS-C800.

Đặc tính kỹ thuật

Power-supply voltage Number of connections on the bus line terminal side: 30 or less 10.5 to 28 VDC (with polarity)
Number of connections on the bus line terminal side: 31 or more, 20 to 28 VDC (with polarity)
Current consumption 150mA + [Number of bus line terminals] x 3.5mA
Number of terminals that can be connected Compliant with connection controller
Transmission method Bus net method (time division multiplex transmission method)
Wiring length (terminal side) When using Φ0.9mm AE wire (OP wire)
Longest part: 1000m
Branch: No restriction (1000m or less)
Total wiring length: 4000m
Transmission speed About 8-16msec / 1 unit
Indicator light Power indicator: Energized: Green light
Wiring connection M4 self-up terminal
Usable ambient temperature -15°C to + 55°C (no condensation)
Installation location Indoor (wall mounted)
mass 600g
appearance Resin (white)

- Xuất xứ: Nhật Bản.

- Bảo hành: 18 tháng.



Giá: Vui lòng gọi (Đã bao gồm VAT)
