0916 287 068 Rack Chassis G-NET HHD-G14M

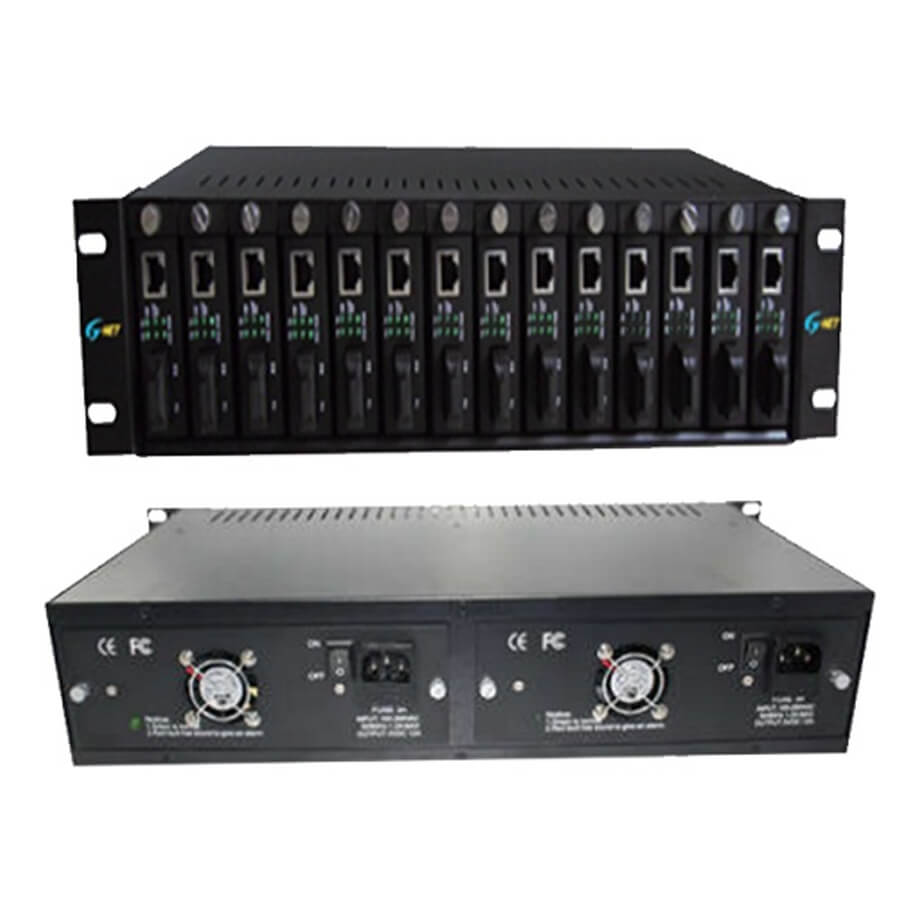

Rack Chassis G-NET HHD-G14M
- G-NET HHD-G14M is specially designed for accommodating up to 14 pieces 10/100M, 10/100/1000M Standalone Media Converters. The chassis employs a 220 VAC Switch Mode Power Supply (SMPS) design, which reduces the possibility of a single module failure causing a shutdown or a major failure of other modules within the chassis.
- Metal case, Satndard 19 inch, 2U height.
- Max support 14 pieces 10/100M, 10/100/1000M Standalone Media Converters.
- Redundant AC 220V power supply, enabling the system can work uninterruptibly.
- Supporting simultaneous operation of several module type media converters at different rates, which greatly improves system adaptability.
- Each card supports hot swapping.
- Applicatory media converter types: 10/100M or 10/100/1000M Standalone Media Converter.
Đặc tính kỹ thuật
| Rack | 19 inch 2U height |
| Power Supply | Redundant 90-265VAC/-48VDC power supply |
| Fan | Built-in redundant fan for cooling |
| Slots | 14 slots for 10/100M or 10/100/1000M Standalone Media Converter |
| Hot swappable | Avaliable for power card and media converter module |
| Environmental | Working Temperature: 0~50°C Storage Temperature: -20~70°C Working humidity: 10%~90%non-condensing Storage humidity: 5%~90% non-condensing |
| Dimensions (L x W x H) | 485 x 245 x 90 mm |
| Weight | 6.2kg |
