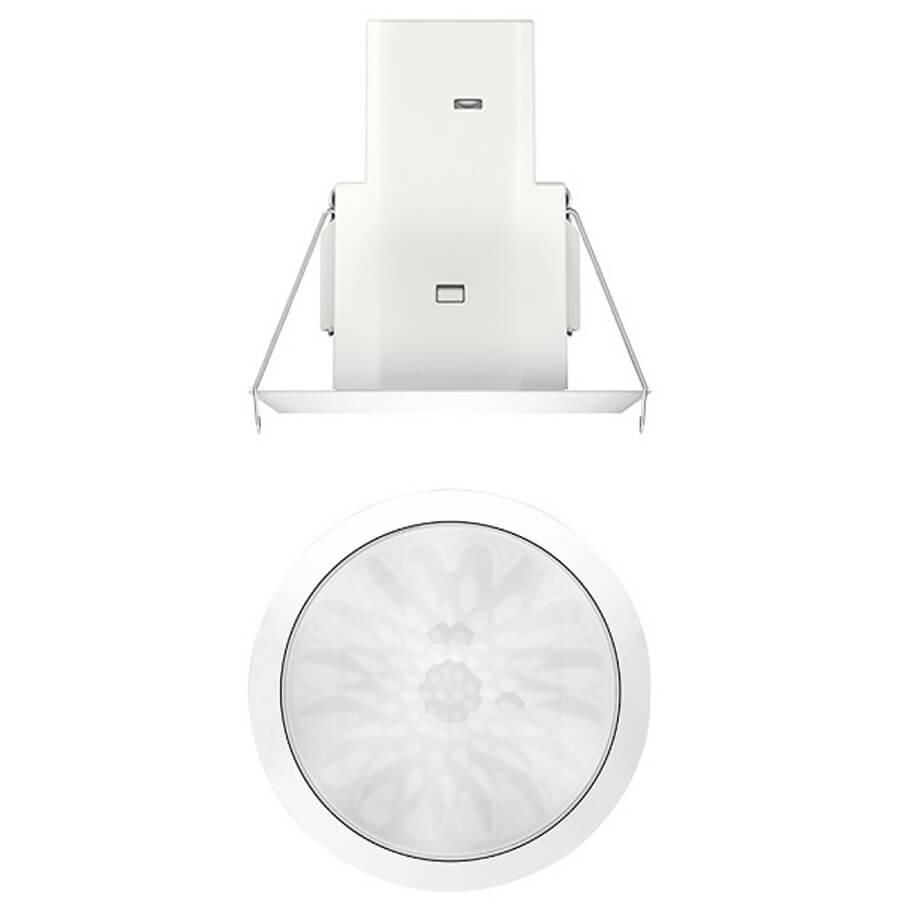

0916 287 068 Presence Detector THEBEN theRonda S360-100 FLAT DE WH
Presence Detector THEBEN theRonda S360-100 FLAT DE WH
- Passive infra-red presence detector for ceiling installation.
- Circular detection area 360°, up to Ø8m (50m²) at mounting height 3m.
- 1 channel light (Relay, 230V).
- Automatic motion and brightness-dependent control for lighting.
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
- Operation as fully automatic device.
- Brightness switching value configurable, teach-in function.
- Pulse function for staircase light time switch.
- Time delay configurable.
- Detection sensitivity configurable.
- Test mode for checking function and detection area.
- Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.).
- One of these optional remote controls is required for changing the values and attitudes:
+ Management remote control SendoPro.
+ Installation remote control theSenda P.
+ Optional user remote control: theSenda S.
Đặc tính kỹ thuật
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Installation height | 2 – 4 m |
| Minimum height | > 1,7 m |
| Installation type | Ceiling mounting |
| Colour | White |
| Switching output | Light |
| Light measurement | Mixed light measurement |
| Setting range brightness | 30 – 3000 lx |
| Light switch-off delay | 10 s - 60 min |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/halogen lamp load | 2300 W |
| Inrush current | max. 400 A / 200 µs |
| LED lamp < 2 W | 25 W |
| LED lamp 2-8 W | 250 W |
| LED lamp > 8 W | 250 W |
| Type of connection | Screw terminals |
| Max. cable cross section | max. 2 x 2,5 mm² |
| Detection range | 50 m² (ø 8 m | 360°) |
| Ambient temperature | -15°C ... 50°C |
| Impact resistance | IK04 |
| Type of protection | IP 54 (when fitted) |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
