0916 287 068 Presence Detector THEBEN thePrema S360-101 E UP GR

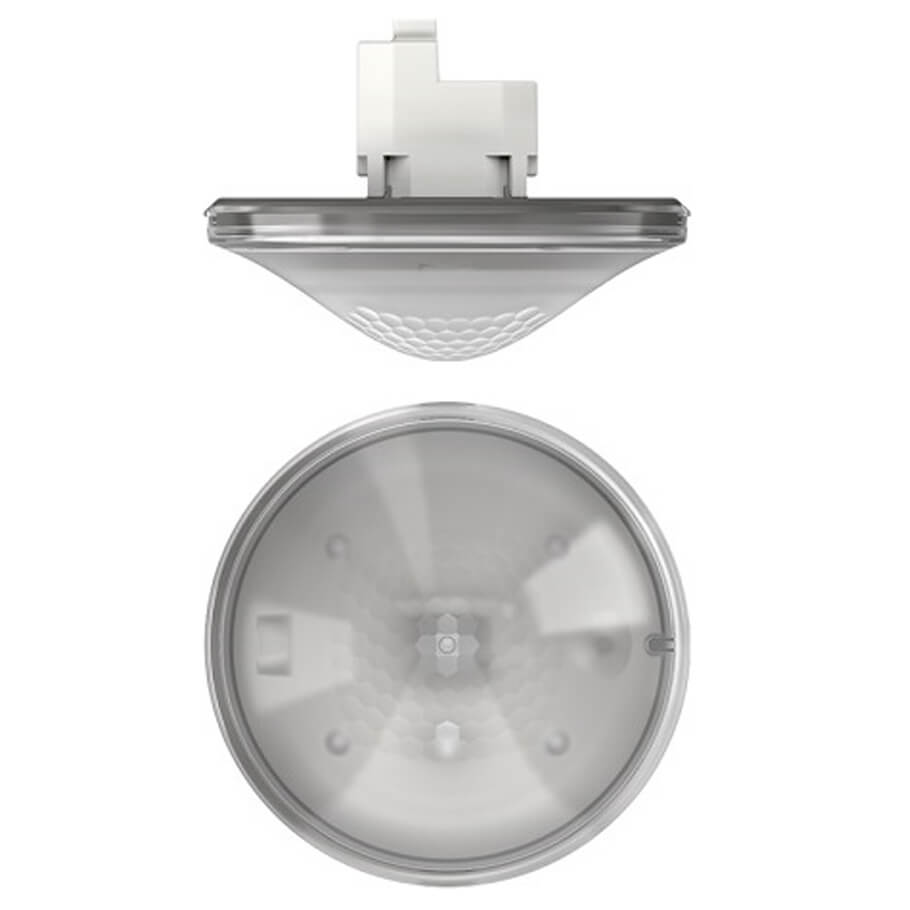

Presence Detector THEBEN thePrema S360-101 E UP GR
- Passive infra-red presence detector for flush-mounted ceiling installation.
- Square detection area 360°, 7 x 7 m, (49m²) at mounting height 3m.
- 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control).
- Automatic presence- and brightness-dependent control for lighting and HVAC.
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
- Choice of fully or semi-automatic operation.
- Adjustable brightness switching value, teach-in function.
- Self-learning time delay.
- Reduction of switch-off delay time in the event of short presence (brief-presence).
- Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch.
- Pulse function for staircase light time switch.
- Channel H, presence: relay, floating e.g. for HVAC control.
- Switch-on delay and switch-off delay configurable.
- Room monitoring with selective movement detection.
- Ready for immediate use due to factory preset.
- Exceptionally easy configuration of the energy-saving behaviour with the new (eco plus) function.
- Test mode for checking function and detection area.
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other.
- Flexible relay operating modes.
- Ceiling installation in flush-mounted socket.
- Ceiling installation also possible with surface-mounted frame.
- User remote control theSenda S, management remote control SendoPro (optional).
Đặc tính kỹ thuật
| Operating voltage | 110 – 230 V AC ± 10 % |
| Frequency | 50 – 60 Hz |
| Installation height | 2 – 3 m |
| Minimum height | > 1,7 m |
| Installation type | Ceiling installation |
| Colour | Grey |
| Switching output | Light | Presence |
| Power consumption | ~0.1 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 5 – 3000 lx |
| Light switch-off delay | 10 s – 60 min |
| Type of contact light | Relay 230 V/10 A µ-contact |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/halogen lamp load | 2300 W |
| Compact and flourescent lamps | 1150 VA (cos φ = 0,5) |
| Inrush current | max. 800 A / 200 µs |
| Energy saving lamps | 16 x 54/58 W, 24 x 35/36 W, 8 x 2 x 54/58 W, 12 x 2 x 35/36 W |
| LED lamp < 2 W | 60 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Switch-on delay presence | 0 s – 10 min / Room surveillance |
| Presence switch-off delay | 10 s – 120 min |
| Type of contact presence | Relay potential-free |
| Switching capacity presence | 50 W / 50 VA (max. 2 A), min. 0,5 mV/ 10mA |
| Type of connection | Screw terminals |
| Max. cable cross section | max. 2 x 2,5 mm² |
| Size of concealed housing | Ø 55 mm (NIS, PMI) |
| Detection range | 49 m² (7,0 x 7,0 m) |
| Ambient temperature | 0°C ... 50°C |
| Impact resistance | IK04 |
| Type of protection | IP 40 (when fitted) |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
