0916 287 068 Presence Detector THEBEN LUXA 103 S360-100-28 AP WH

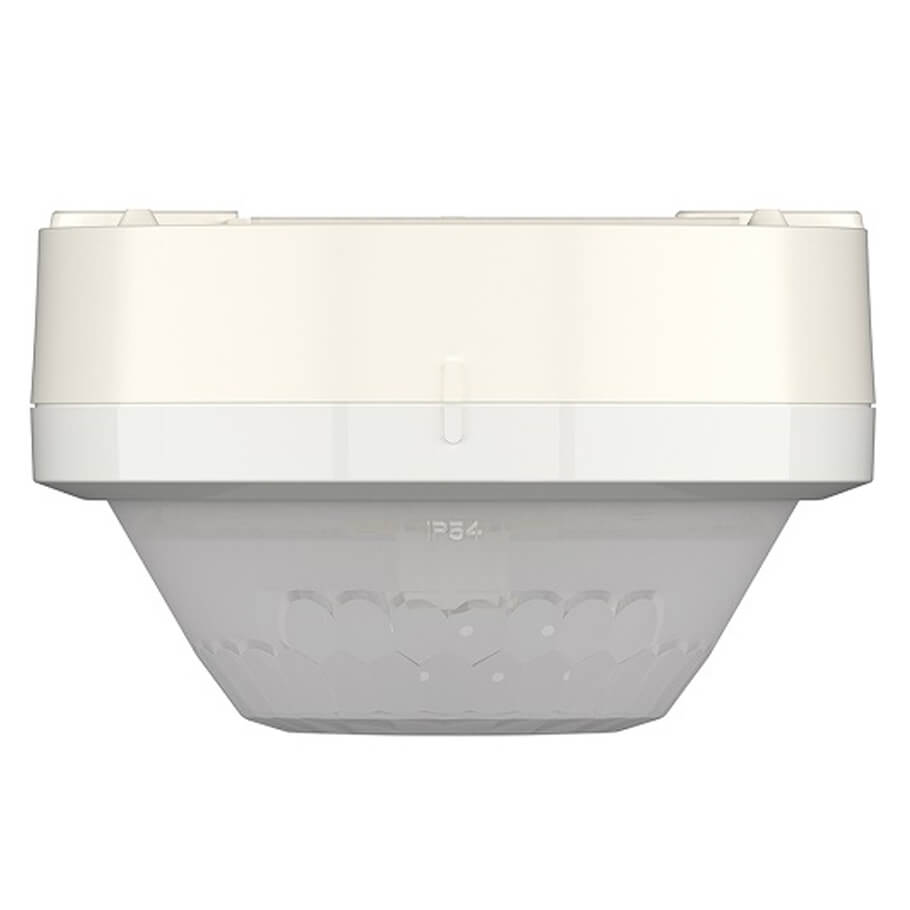

Presence Detector THEBEN LUXA 103 S360-100-28 AP WH
- Passive infrared presence detector, for surface-mounting.
- Rectangular detection area 360°, 28 x 5 m (140m²) at 3 m mounting height.
- 1 channel light (relay 230V).
- Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel.
- Networking with wall detector theMura Slave possible.
- Connection option for push-button for manual switching.
- Operation as fully or semi-automatic possible.
- One directional brightness measurement (mixed light measurement).
- Teach-in function, pulse function, test function, staircase lighting function.
- Ready for operation immediately due to factory presetting.
- Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
- App/universal remote control theSenda B.
- Service remote control theSenda P.
- Optional user remote control for manual override theSenda S/theSenda B.
- Restriction of the detection range possible.
Đặc tính kỹ thuật
| Operating voltage | 230 VAC |
| Frequency | 50 Hz |
| Stand-by consumption | ca. 0.5 W |
| Light measurement | Mixed light measurement |
| Colour | White |
| Switching output | Light |
| Installation type | Ceiling installation |
| Setting range brightness | 5 – 1000 lx |
| Detection angle | 360° |
| Installation height | 2.5 – 3.5 m |
| Light switch-off delay | 15 s - 30 min |
| Incandescent/halogen lamp load | 2300 W |
| Inrush current | max. 500 A / 200 µs |
| LED lamp 2-8 W | 400 W |
| LED lamp > 8 W | 400 W |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Remote controlled | Yes |
| Ambient temperature | -25°C ... 55°C |
| Type of protection | IP 54 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
