0916 287 068 Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-60TX
Trang Chủ >>
Báo cháy-Báo trộm >> Báo động TAKEX >> Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-60TX
Mã số:13306842

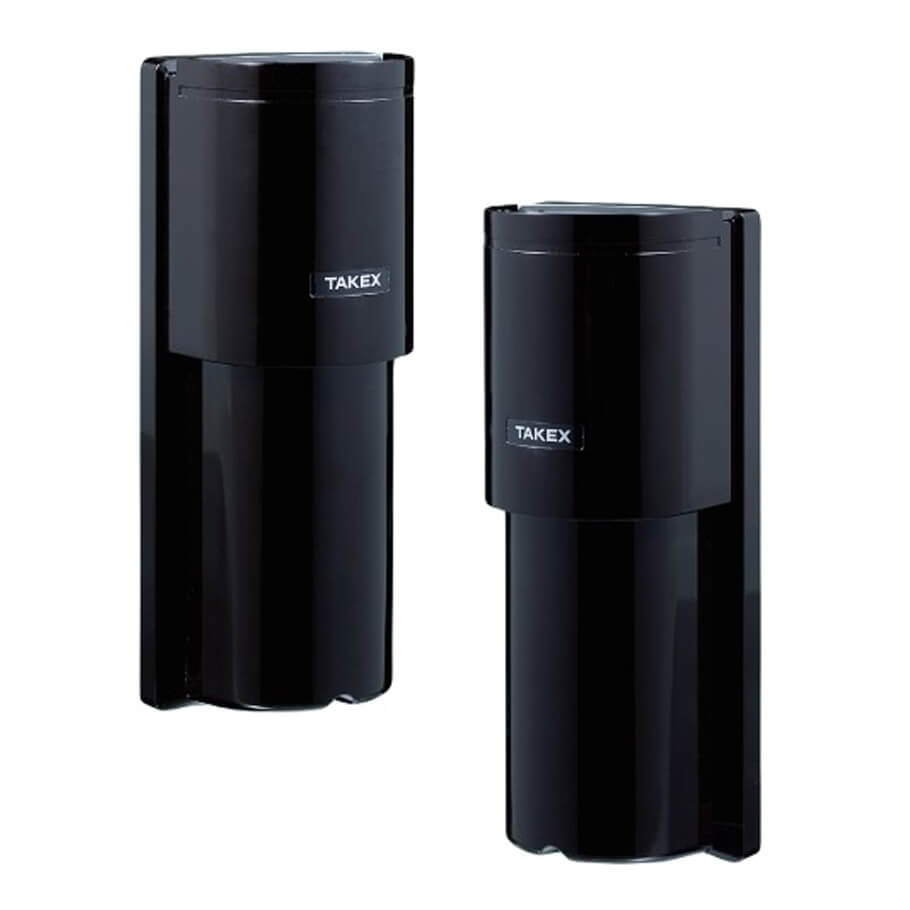

Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-60TX
- 2 Selectable operation ranges: 30/60m.
- 2x Synchronised high power beams.
- Double modulation for increased light immunity.
- 4 Selectable beam channels to prevent crosstalk.
- Alarm output mode selectable (Standard/Real time).
- Advanced sound check.
- ±95° horizontal/±10° vertical adjustment.
- IP55 Housing.
Specifications
| Detection system | Near infrared pulsed beam interruption system (TR-RE 2 beam simultaneous interruption) |
| Protection distance | Outdoor 60m or less |
| Distance margin (maximum arrival distance) | 10 times 600m |
| Protection distance setting | 30m, 60m (2 distances selectable) |
| Response time | 0.05sec., 0.1sec., 0.25sec., 0.7sec. (4-level changeover) |
| Power supply voltage | 10~28V DC (non-polarity |
| Current consumption | 37mA (max.) |
| Alarm output | Dry contact(semi-conductor) output: N.C./N.O. selectable - Contact capacity: 30V (AC/DC) 0.25A max. (Resistive load) Protective resistor - Contact operation: Standard/Real time selectable (Dip switch) Standard: Interruption time (Min. 2sec.) Real time: Interruption time |
| Tamper output | Dry contact relay output: N.C. - Contact capacity: 30V (AC/DC) 0.1A (Resistive load) Protective resistor - Contact operation: Activated when the cover is detached |
| Transmission LED | Red LED (Transmitter): ON when powered (when the cover is open) |
| Alarm/sensitivityattenuation LED | Red LED (Receiver): ON when an alarm is output/Blinks when beam is attenuated |
| Functions | Modulation frequency selectable, Tamper, Response time adjustment, Monitor jack, Sound check |
| Beam adjustment | Horizontal: ± 95° Vertical: ± 10° |
| Ambient temperature | –25°C to +60°C (–13°F to +140°F) (No freezing or condensation) |
| Mounting position | Outdoor, Indoor IP55 |
| Wiring | Terminals |
| Weight | Transmitter: 380g Receiver: 400g |
| Appearance | Cover: Resin (Wine red) Base: Resin (Black) |
- Bảo hành: 12 tháng.
Giá: 4.680.000 VND
(Đã bao gồm VAT)
