0916 287 068 Photoelectric Beam Sensor TAKEX PR-1B(E)
.jpg "Photoelectric Beam Sensor TAKEX PR-1B(E)")

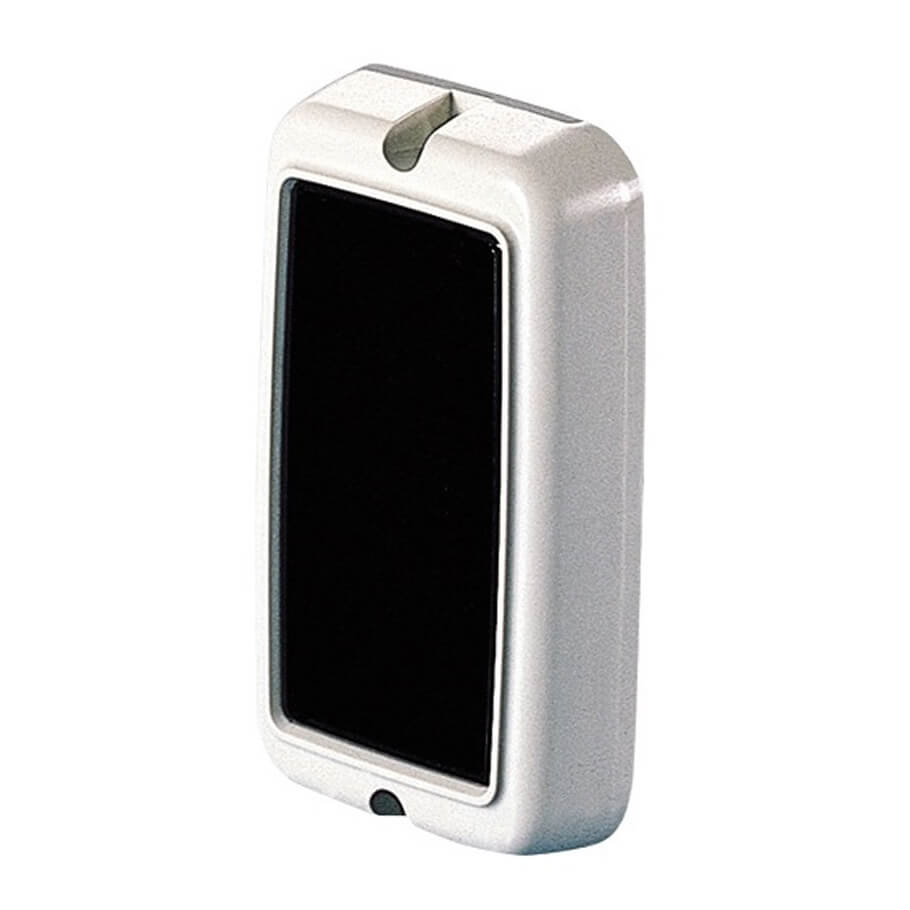

Photoelectric Beam Sensor TAKEX PR-1B(E)
- Without Reflector: Direct reflection system eliminates reflector unit that is necessary for current reflection type beam sensor.
- Convenient Sensltivlty Adjustment: Sensitivity is adjustable to fit for installation sites. (Sensitivity is set at factory so that the sensor can detect human body 1m away.).
- Wide Application: PR-1B is usable in various applications where the detection of motionless objects is required.
- Easy Installation: Both a transmitter and a receiver are incorporated in one unit. This reduces installation time.
+ Slim and compact (23.5mm thickness of unit).
+ Terminal wiring.
+ Flush mount is availabe with optional attachment BP-5B/BP-5D
+ Application further expands with optional L fitting BL-5.
Specification
| Product name | Photoelectric beam sensor |
| Model | PR-1B (E) |
| Detection system | Near infrared (Direct reflective detection of motionless objects) |
| Protection distance | 1m(3.3')or less |
| Response time | 100msec. or more |
| Alarm output | Dry contact relay outoput: 1c Contact activation: detection time + off delay(approx.0.5sec.) Contact capacity: 30V AC/DC,0.5A or less |
| Supply voltage | 10.5V to 22V DC(non-polarity) |
| Current consumption | 60mA or kess(at 12VDC) |
| Ambient temperature range | -20C to +50C (-4F to +122F) |
| Mounting position | Indoor |
| Weight | Approx.75g(2.6oz) |
| Appearance | ABS resin(off-white) |
- Bảo hành: 12 tháng.
