0916 287 068 Omada AX3000 Gigabit VPN Router TP-LINK ER706W
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng TP-LINK >> Omada AX3000 Gigabit VPN Router TP-LINK ER706W
Mã số:04101957

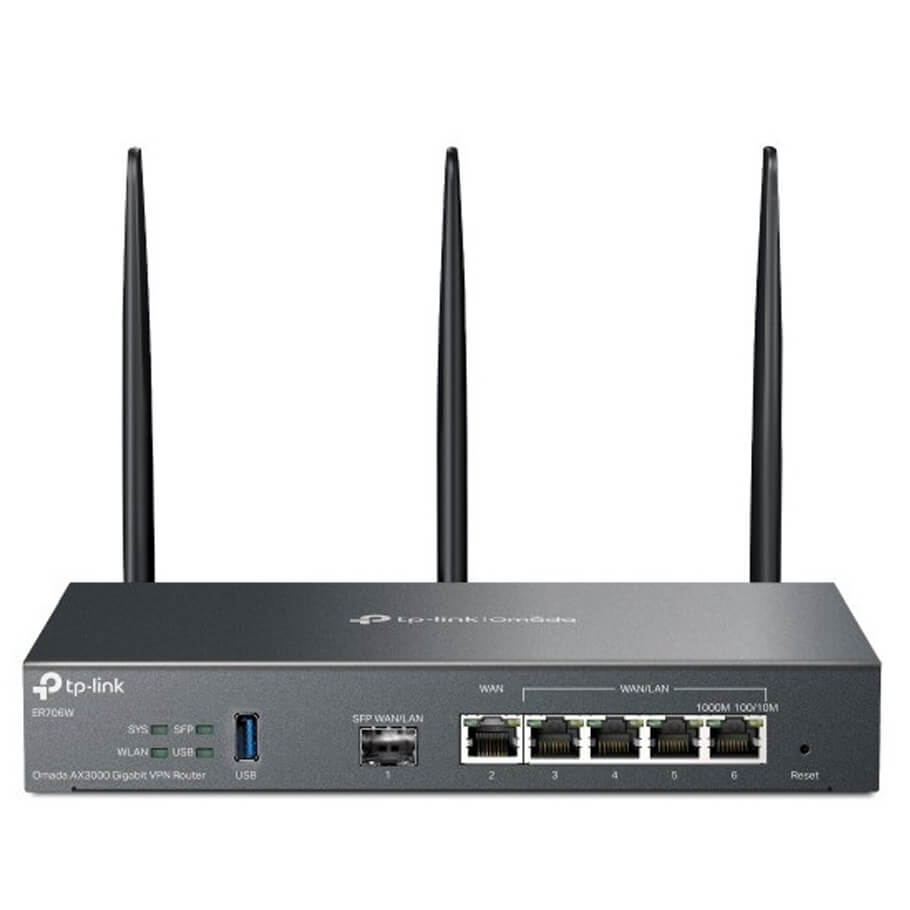

Omada AX3000 Gigabit VPN Router TP-LINK ER706W
- AX3000 Dual-Band WiFi: Supports 2402Mbps on 5GHz and 574Mbps on 2.4GHz.
- 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
- High-Security VPN: Supports multiple VPN protocols including IPSec/SSL/Wireguard/PPTP/L2TP VPN, helping users to establish remote connections more flexibly.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Specifications
| Hardware | |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, 802.11a/b/g/n/ac/ax |
| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN port 4 Gigabit LAN/WAN ports |
| USB | 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Wi-Fi Speed | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps HE160 |
| Antennas | 2.4 GHz: 2x 3 dBi dual-band detachable antennas 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset button |
| Power Supply | 12VDC / 2A Power Adapter |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Max Power Consumption | EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) US:22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| Surge Protection | 4kV surge protection |
| Mounting | Desktop/ Wall-mounting |
| Dimensions ( W x D x H ) | 226 × 131 × 35 mm (Antenna dimensions not included) |
| SDN Support | |
| Hardware Controller (OC200/OC300) | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| Software Controller | |
| Omada App | |
| Performance | |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| Static IP NAT Throughput (Upload / Download) | 937.2 Mbps/936.1Mbps |
| DHCP NAT Throughput (Upload / Download) | 945.8 Mbps /940.6Mbps |
| PPPoE NAT Throughput (Upload / Download) | 942.9 Mbps/942.9Mbps |
| L2TP NAT Throughput (Upload / Download) | 837.4 Mbps /881.5Mbps |
| PPTP NAT Throughput (Upload / Download) | 803.0 Mbps/910.5 Mbps |
| 66 Byte Packet forwarding rate (Upload / Download) | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate (Upload / Download) | 81274 pps/ 91275 pps |
| IPSec VPN Throughput | ESP-SHA1-AES256: 646.9Mbps ESP-SHA256-AES256: 642.8Mbps ESP-SHA384-AES256: 648.9Mbps ESP-SHA512-AES256: 658.4 Mbps |
| GRE | Unencrypted: 624.2Mbps Encrypted: 301.5Mbps |
| WireGuard VPN | 393.5Mbps |
| SSL VPN | 126.7Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 1034.0 Mbps Encrypted: 570.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 1165.0 Mbps Encrypted: 209.0 Mbps |
| Basic Functions | |
| WAN Connection Type | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| MAC Clone | Modify WAN Address |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / NonAddress mode |
| Stateful ACL | √ |
| mDNS Repeater | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| VLAN | 802.1Q VLAN |
| Wireless Function | |
| Wireless Encryption | WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Multiple SSIDs | 16 in total (8 per radio) |
| Enable/Disable Wireless Radio | √ |
| Enable/Disable SSID Broadcast | √ |
| Guest Network | √ |
| Automatic Channel Selection Algorithm | √ |
| Transmit Power Control | Adjust transmit Power on dBm |
| Seamless Roaming | √ |
| Mesh | √ (with EAP that supports Mesh) |
| OFDMA | √ |
| Beamforming | √ |
| MU-MIMO | √ |
| Rate Limit | Based on SSID/Client |
| Load Balance | √ |
| Airtime Fairness | √ |
| Band Steering | √ |
| RADIUS Accounting | √ |
| MAC Authentication | √ |
| Reboot Schedule | √ |
| Wireless Schedule | √ |
| Support Data Rates | 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS11, NSS = 1 to 2 VHT20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| Transmission | |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Port Forwarding Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing RIP OSPF |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| VPN | |
| IPSec VPN | 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10) 50 Tunnels L2TP over IPSec |
| GRE | Only in Standalone Mode |
| WireGuard VPN | √ |
| SSL VPN | 50 Tunnels |
| OpenVPN | OpenVPN Server OpenVPN Client (5) 55 OpenVPN Tunnels 'Certificate + Account' Mode Full Mode |
| Security | |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | Web Group Filtering URL Filtering Web Security |
| DNS Proxy | DNSSEC, DoH, and DoT |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Access Control | Source/Destination IP Based Access Control |
| Authentication | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User/ Voucher/ SMS/ Radius) External Radius Server External Portal Server LDAP |
| Management | |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | ER706W, Power Adapter, Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
Giá: Vui lòng gọi
(Đã bao gồm VAT)
