0916 287 068 Omada 8-Port Gigabit Easy Smart Switch TP-LINK DS108GE
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng TP-LINK >> Omada 8-Port Gigabit Easy Smart Switch TP-LINK DS108GE
Mã số:04105761

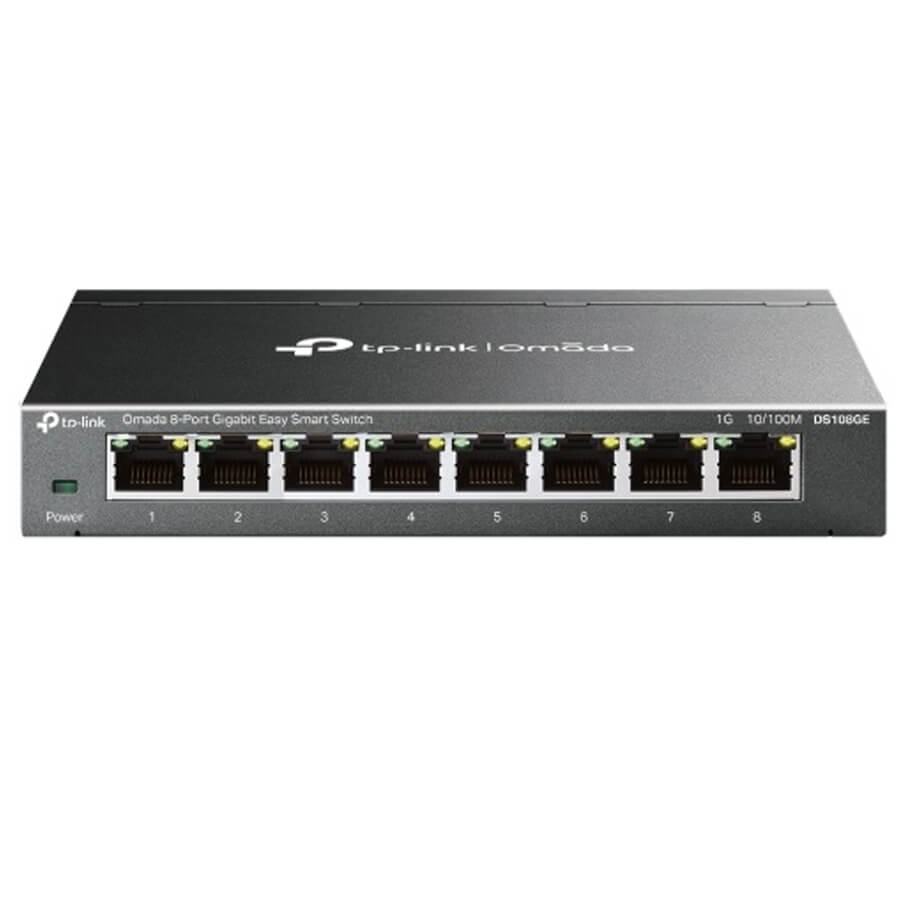

Omada 8-Port Gigabit Easy Smart Switch TP-LINK DS108GE
- 8 x 10/100/1000Mbps RJ45 ports.
- Plug and play for instant connectivity.
- Simple configuration via web-based user interface and management utility*.
- Durable metal casing of superior quality and professional appearance.
- Green technology reduces power consumption.
- Note: This Omada Easy Smart switch does not support Omada SDN central management.
Thông số kỹ thuật
| General | |
| Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interfaces | • 8 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Performance | |
| Forwarding Method | Store-and-Forward |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mbit |
| Jumbo Frame | 16 KB |
| Physical & Environment | |
| Power Supply | External Power Adapter (5 V/0.6 A |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX: UTP category 5 or above cable (maximum 100m) • 1000BASE-T: UTP category 5e or above cable (maximum 100m) |
| Maximum Power Consumption | 4.26 W |
| Maximum Heat Dissipation | 14.84 BTU/h |
| Dimensions (W×D×H) | 6.2 x 4.0 x 1.0 in. (158 x 100.7x 25.4 mm) |
| Physical & Environment | |
| Fan Quantity | Fanless |
| Installation | Desktop/Wall Mounting |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90%RH, non-condensing |
| Storage Humidity | 5%–90%RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Software Features | |
| L2 Features | • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention |
| VLAN | • 32 VLANs (out of 4K VLAN IDs) • MTU/Port-Based/802.1Q VLAN |
| QoS | • 4 Priority Queues • Port-Based/802.1p/DSCP QoS • Bandwidth Control • Storm Control |
| Management | • Web-Based Graphic User Interface (GUI) • Easy Smart Configuration Utility |
- Bảo hành: 36 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
