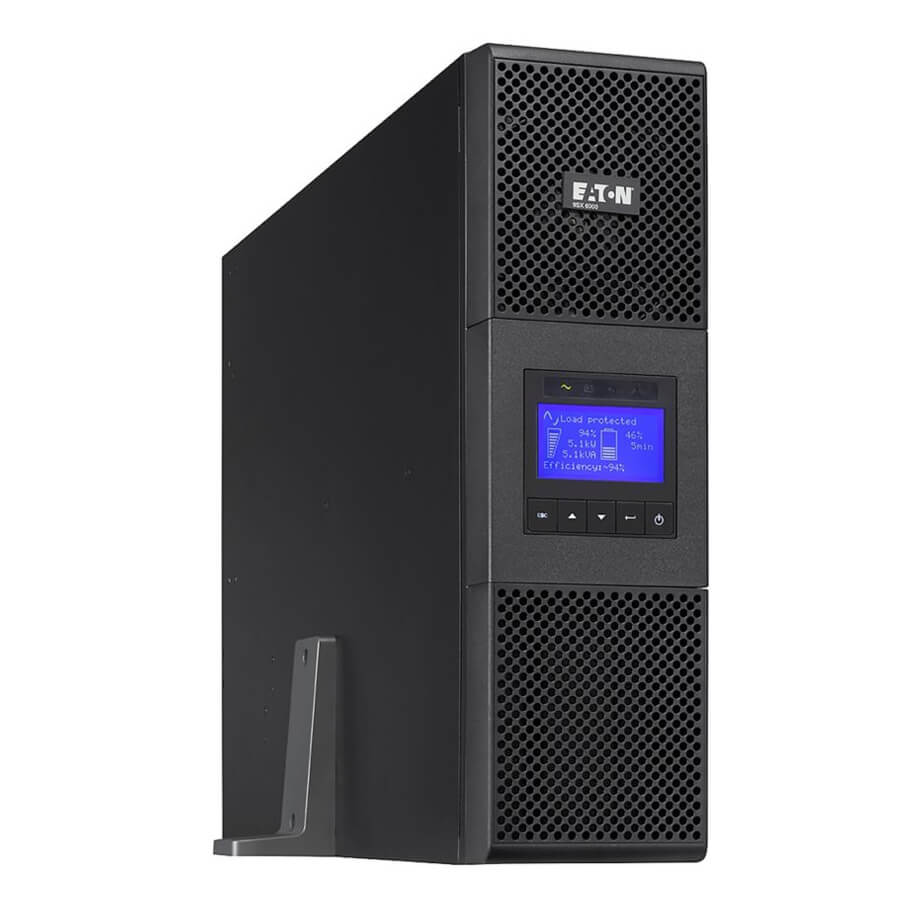

Nguồn lưu điện UPS EATON 9SX5KiRT
- Công suất: 5000VA/4500W; Rack 3U/Tower.
- Công nghệ: Chuyển đổi kép trực tuyến (Online double-conversion).
- Dải điện áp và tần số đầu vào rộng: 176-276VAC, 40-70Hz.
- Điện áp đầu ra: 220VAC±1%.
- Tần số: 50/60Hz (tự động nhận).
- Bao gồm màn hình LCD, cổng kết nối RS232, USB, Dry contact, EPO, khe cắm mở rộng cạc giao tiếp (Network hoặc Modbus hoặc relay).
- Kết nối nguồn vào UPS: bảng đấu nối dây (terminal block).
- Kết nối nguồn ra thiết bị: bảng đấu nối dây (terminal block) + 2 x 4 IEC C13 có thể bật tắt theo 2 nhóm + 2 IEC C19.
- Thời gian lưu điện: 13 phút ở 50% tải, 10 phút ở 70% tải (hệ số công suất 0.7) và có thể mở rộng với modun ắc quy ngoài.
- Phần mềm giám sát UPS (miễn phí), hỗ trợ Window, VMware.
- Kích thước (CxRxS): 440(19”) x 130(3U) x 685 mm.
- Khối lượng: 48kg (bao gồm ắc quy trong).
Đặc tính kỹ thuật
| Model | 9SX5KiRT |
| Battery | |
| Battery Management | ABM & Temperature compensated charging method (user selectable)|Automatic battery test|Deep discharge protection|Automatic recognition of external battery units |
| Battery Replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery Quantity | 15 |
| Battery Type | Sealed, lead-acid |
| Extended Battery Capability | Yes |
| Electrical Output | |
| Receptacle | (8) C13, (2) C19, Hardwired |
| Topology | Online/Double-conversion |
| Wattage | 4500 W |
| VA Rating | 5000 VA |
| Output Waveform | Sine wave |
| Voltage | 230V |
| Output Power Factor | 0.9 |
| Output Nominal Voltage | 230V default (200/208/220/230/240V) |
| Output Voltage Range | 200/208/220/230/240 V +/- 1% |
| Voltage Distortion Output (linear load) - max | 2 |
| Output Frequency | 50/60 Hz |
| Feed Type | 1 |
| Electrical Input | |
| Input Connection | Hardwired/fixed connection |
| Input Nominal Voltage | 230V default (200/208/220/230/240/250V) |
| Input Voltage Range | 176-276 V (100-276 V with derating) |
| Nominal Frequency | 50/60 Hz |
| Input Frequency Range | 40-70 Hz |
| Input Power Factor | >.99 |
| Communications | |
| Communication | USB port (HID compliant)/ Serial port (RS232)/ Mini terminal block for remote On/Off/ Mini-terminal block for remote power off/ Dry contacts (4 outputs, relay, DB9) |
| Expansion Slots | One slot for optional communication card |
| Ethernet Interface | No |
| Includes Network Card | No |
| Software Compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User Interface | Multilingual graphical LCD display |
| Type of Interface | Other |
| Potential Free Switch Contact | Yes |
| Environmental | |
| Altitude | 3000m |
| BTU Rating | Online: 922 |
| Noise Level | |
| Relative Humidity | 0-95% non-condensing |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Additional Specifications | |
| Form factor | Rack/tower |
| Rack size | 3U |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Internal Bypass | Yes |
| Hot Swap Power | No |
| Auto Shutdown Function | Yes |
| Dimensions (LxHxW) | 68.5 x 13 x 44 cm |
| Weight | 48kg |
- Bảo hành: 24 tháng.
