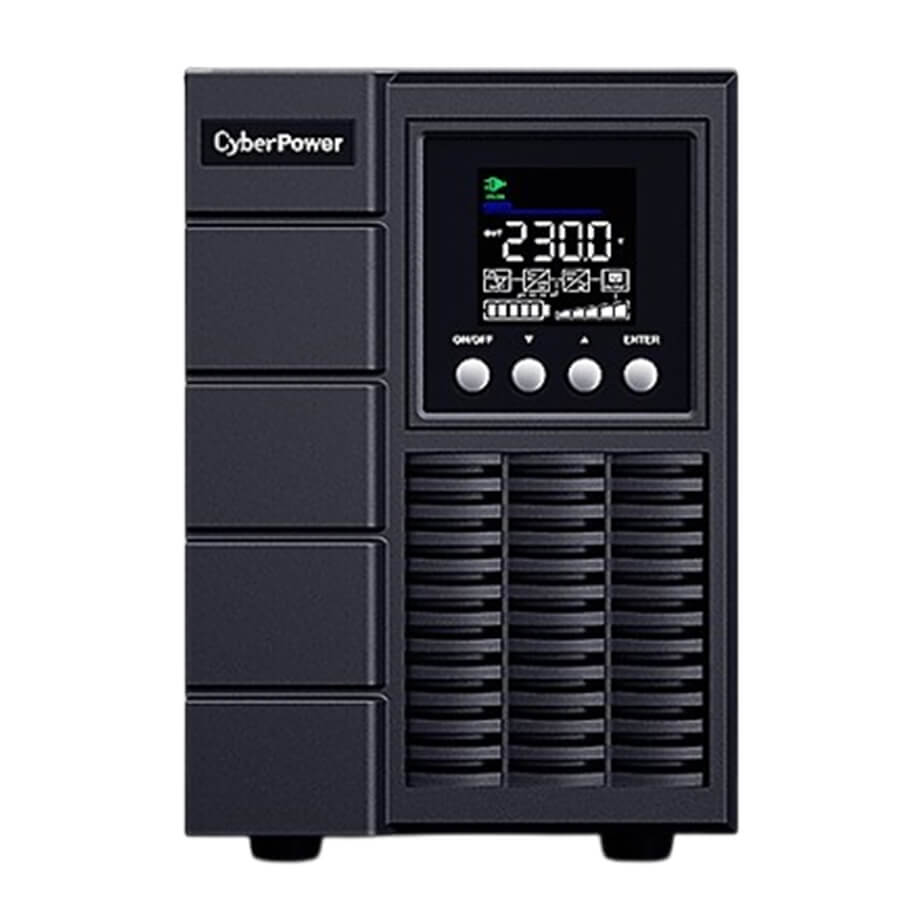

Nguồn lưu điện UPS CyberPower OLS2000EA
- Công suất: 2000VA/1800W.
- Thời gian chuyển mạch: 0ms.
- Dải điện áp đầu vào: 200 ~ 300VAC.
- Tần số nguồn vào: 50/60Hz ±10.
- Điện áp ra: 208Vac ± 1%, 220Vac ± 1%, 230Vac ± 1%, 240Vac ± 1%.
- Tần số đầu ra: 50/60Hz ± 0.5%.
- Thời gian sạc: 4 giờ.
Đặc tính kỹ thuật
| General | |
| UPS Topology | Online Double Conversion |
| Energy Saving Technology | Online ECO Mode E ciency > 95% |
| Active PFC Compatibility | Yes |
| Input | |
| Generator Compatibility | Yes |
| Nominal Input Voltage (Vac) | 230 ± 10% |
| Input Voltage Range (Vac) | 200 ~ 300 |
| Input Frequency (Hz) | 50 ± 10, 60 ± 10 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current (A) | 9 |
| Input Power Factor | 0.98 |
| Input Connector Type | IEC C14 |
| Output | |
| Capacity (VA) | 2000 |
| Capacity (Watts) | 1800 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage(s) (Vac) | 208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1% |
| Output Voltage Setting | Configurable |
| On Battery Frequency (Hz) | 50 ± 0.5%, 60 ± 0.5% |
| Output Frequency Setting | Configurable |
| Power Factor | 0.9 |
| Overload Protection | Internal Current Limiting, Circuit Breaker, Fuse |
| Overload Protection (Line Mode) | 110~120% Load for 1 min, >120% Load Immediately |
| Overload Protection (Battery Mode) | 110~120% Load for 10 sec, >120% Load Immediately |
| Overload Protection (Bypass Mode) | >130% Load Immediately |
| Harmonic Distortion (Linear Load) | THD＜3% |
| Harmonic Distortion (Non-linear Load) | THD＜5% |
| Outlet(s) - Total | 4 [IEC/Schuko/FR] |
| Outlet Type | IEC C13 x 4 or Schuko x 2, IEC C13 x 2 or French x 2, IEC C13 x 2 |
| Outlet(s) - Battery & Surge Protected | 4 [IEC] or 2 [Schuko], 2 [IEC] or 2 [FR], 2 [IEC] |
| Typical Transfer Time (ms) | 0 |
| Battery | |
| Runtime at Half Load (min) | 11.9 |
| Runtime at Full Load (min) | 4 |
| Typical Recharge Time (Hours) | 4 |
| Smart Battery Management (SBM) | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| Compatible Extended Battery Module (EBM) | BPSE48V40A |
| Max. EBM Quantity (pcs) | 3 |
| Surge Protection & Filtering | |
| Surge Suppression (Joules) | 345 |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LCD Panel | Yes |
| LCD Types | Color LCD |
| HID Compliant USB Port(s) | 1 |
| Serial Port | RS232 |
| Dry Contact (with Relay) | Yes |
| Emergency Power O (EPO) Port | Yes |
| Power Management Software | PowerPanel Business (Recommended) |
| SNMP/HTTP Remote Monitoring | Yes - with optional RMCARD205 |
| Physical | |
| Form Factor | Tower |
| Physical Size - UPS Module | |
| Dimensions (WxHxD) (mm.) | 151 x 225 x 394 |
| Weight (kg.) | 16.9 |
| Environmental | |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) (%) | 20 ~ 90 |
| Online Thermal Dissipation (BTU/hr) | 682 |
| Certifications | |
| Certifications | CE |
| RoHS | Yes |
- Xuất xứ: Trung Quốc.
- Bảo hành: 2 năm.
