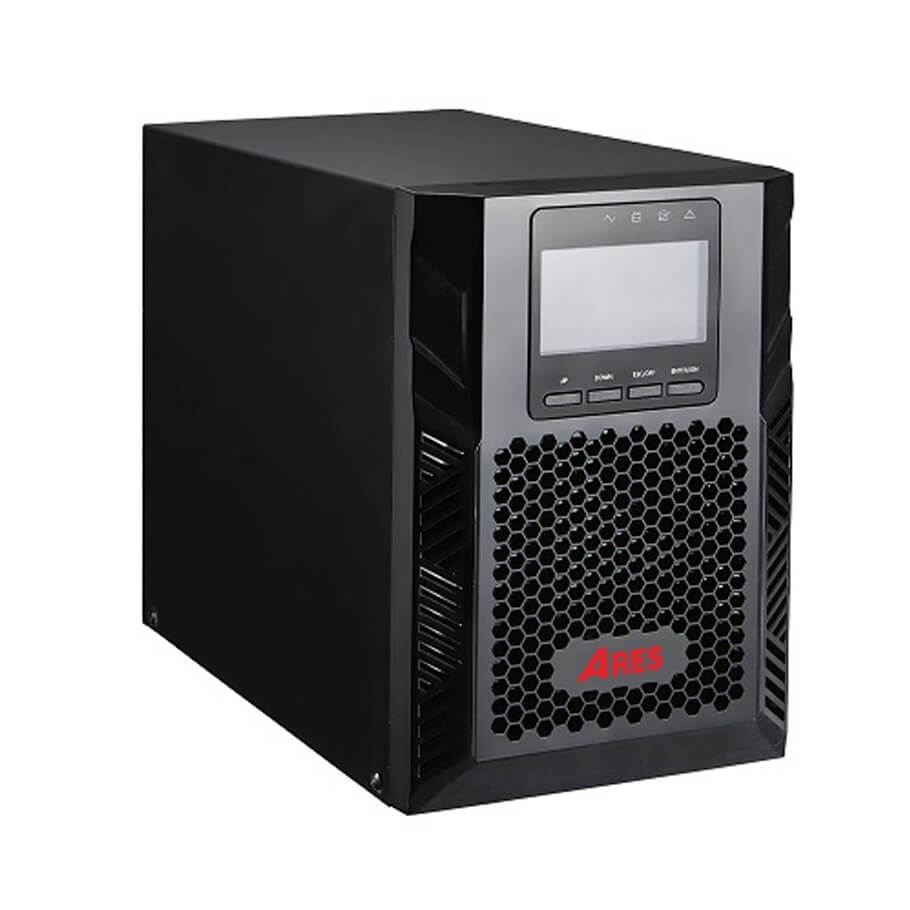

Nguồn lưu điện UPS ARES AR-MP3KS
- Công suất: 3KVA/3KW.
- Sóng sine chuẩn.
- Công nghệ: Online.
- Tích hợp sẵn ắc quy và cổng SB50 để mở rộng thời gian lưu điện.
- Thời gian chuyển mạch: 0ms.
- Điện áp ắc quy: 6x12V/9AH.
Thông số kỹ thuật
| Capacity | 3KVA/3KW |
| INPUT | |
| Nominal voltage | 208/220/230/240Vac |
| Input voltage range | 110~300Vac (176~280Vac @ 100% load) |
| Frequency range | 40~70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 0.9 |
| Voltage regulation | ±1% |
| Output frequency | Line Mode: 46~54Hz or 56~64Hz Bat. Mode: (50/60±0.1%)Hz |
| Crest factor | 3:01 |
| Harmonic distortion (THDv) | ≤3% Linear load ≤5% Non linear load |
| Transfer time | AC mode to Bat.Mode: 0ms Inverter to Bypass: 4ms (Typical) |
| Output waveform | Pure Sinewave |
| EFFICIENCY | |
| AC mode | 91% |
| Battery mode | 88% |
| BATTERY | |
| Battery number | 6 |
| Capacity (Standard unit) | 9Ah/12V |
| Typical recharging time | 4 hours (to 90% of full capacity) |
| Charging voltage | 82.2Vdc±1% |
| Charging current (Max) | 1A |
| INDICATORS | |
| LED display | Line mode, Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault |
| LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Battery low | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| PHYSICAL | |
| Dimension W x D×H | 191 x 460 x 337 mm |
| Weight | 24.5 kg |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | <50db at 1 Meter |
| STANDARDS | |
| Safety | IEC/EN62040-1,IEC/EN62477-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
- Bảo hành: 24 tháng.
