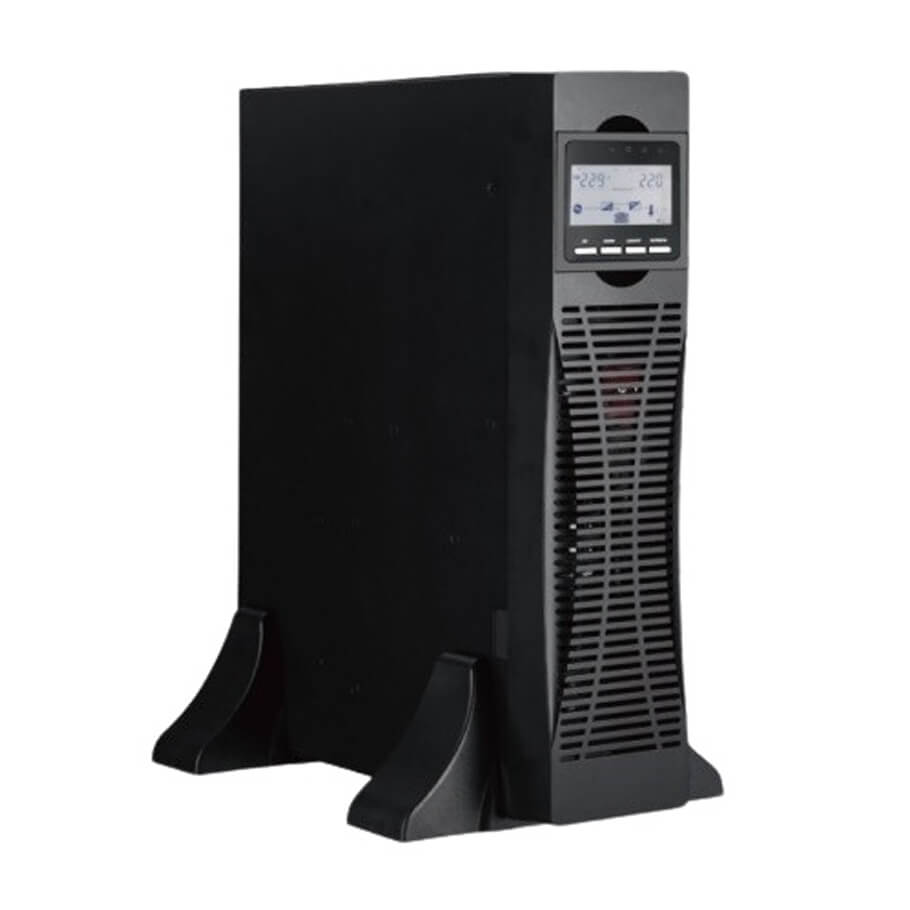

Nguồn lưu điện UPS ARES AR-MP10KRT
- Công suất: 10KVA/10KW.
- Sóng sine chuẩn.
- Công nghệ: Online.
- Thời gian chuyển mạch: 0ms.
- Điện áp ắc quy: ±96/108/120 (Optional).
- Kích thước (W x D × H): 440 x 625 x 86.5 mm.
- Trọng lượng: 18kg.
(Bộ lưu điện chưa bao gồm ắc quy)
Thông số kỹ thuật
| Model | AR-MP10KRT |
| Capacity | 10KVA/10KW |
| INPUT | |
| Nominal votage | 208/220/230/240Vac |
| Input voltage range | 110-286Vac |
| Frequency range | 40-70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
| Bypass voltage range | Max.voltage: 220V: +25% (Optional+10%, 15%, 20%) 230V: +20% (Optional+10%, 15%, 20%) 240V: +15% (Optional+10%) Min.voltage: -45% (Optional-20%, -30%) |
| OUTPUT | |
| Output voltage | 208/220/230/240Vac |
| Power factor | 0.9 |
| Voltage regulation | ±1% |
| Output frequency | Line Mode: ±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional) Bat. Mode: (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THDv) | ≤2% Linear load ≤5% Non linear load |
| Transfer time | AC mode to Bat.Mode: 0ms Inverter to Bypass: 0ms (Typical) |
| Output wave form | Pure Sinewave |
| Overload | Line Mode: Load≤110% last 60 min; ≤125% last 10 min; ≤150% last 1 min; >150% turn to bypass mode immediately Bypass Mode: 63A(Breaker) |
| Efficiency | 94% |
| BATTERY | |
| Battery voltage | ±96/±108/±120Vdc (Adjustable) |
| Capacity (standard unit) | 9Ah/12V (7Ah/12V optional) |
| Typical recharging time | 6-8 hours (to 90% of full capacity) |
| Charging current | 1A (standard unit); Long run unit Max.curent 10A (charging current can be set according to battery capacity) |
| INDICATORS | |
| LED display | Line mode, Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault |
| LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature& Remaining battery backup time |
| ALARM | |
| Battery mode | Beeping every 4 seconds |
| Battery low | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously beeping |
| PHYSICAL | |
| Dimension (W x D×H) | 440 x 625 x 86.5 mm |
| Weight | 18 kg |
| ENVIRONMENT | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -25℃~55℃ |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) |
| Altitude | <1500m,derating required when>1500m |
| Noise level | |
| STANDARDS | |
| Safety | IEC/EN62040-1, IEC/EN62477-1 |
| EMC | IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 |
- Bảo hành: 24 tháng.
