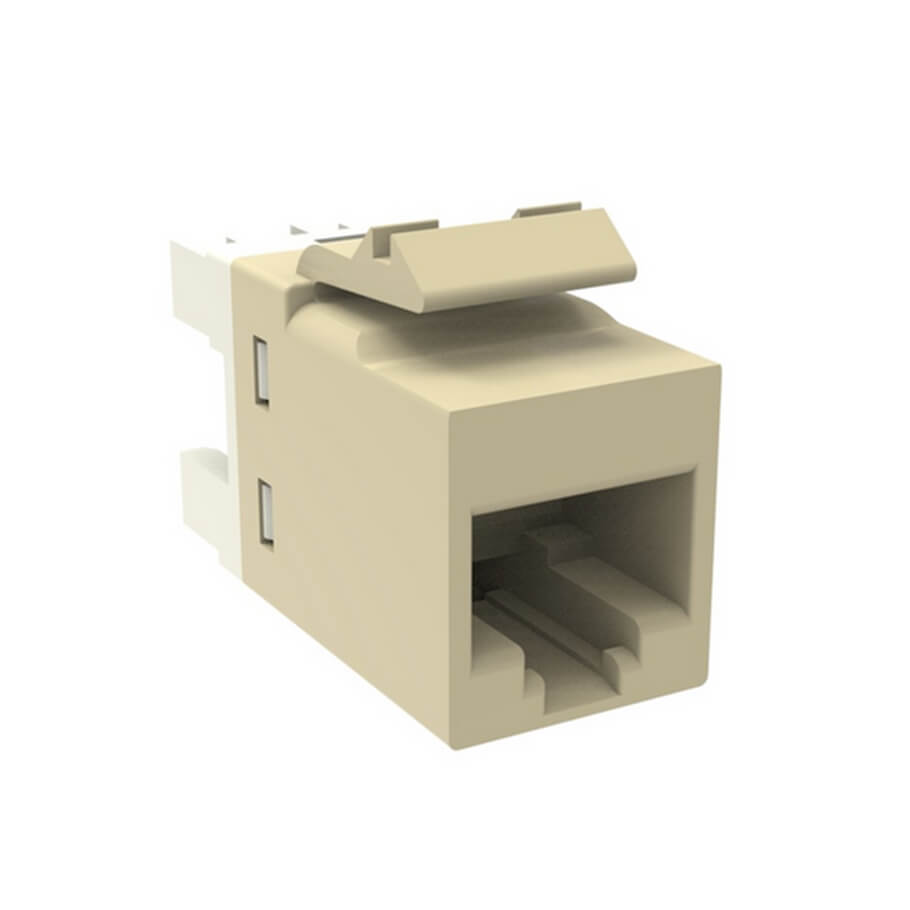

Modular Jack COMMSCOPE CAT5E UTP (1375191-1)

Modular Jack COMMSCOPE CAT5E UTP (1375191-1)

- Part Number: 1375191-1.

- ANSI/TIA Category: 5e.

- Cable Type: Unshielded.

- Color: Electrical ivory.

- Conductor Type: Solid: Stranded.

- Mounting: SL Series faceplates and panels.

- Mounting Note: Color matches with SL-style Ivory Faceplates and Surface Mount Boxes.

- Outlet Type: Standard.

- Termination Punchdowns, minimum: 200 times.

- Termination Tool: SL Termination tool.

- Termination Type: IDC.

- Transmission Standards: ANSI/TIA-568-C.2, ISO/IEC 11801 Class D.

- Wiring: T568A, T568B.

- Panel Cutout, recommended: 14.78 x 20.07 mm.

- Panel Thickness, recommended: 1.6 mm.

- Height: 16.26 mm.

- Width: 14.48 mm.

- Depth: 0.48 mm.

- Compatible Insulated Conductor Diameter, maximum: 1.45 mm.

- Contact Plating Thickness: 1.27 µm.

- Compatible Conductor Gauge, solid: 24–22 AWG.

- Compatible Conductor Gauge, stranded: 26–24 AWG.

- Operating Temperature: -40°C to +70°C.
