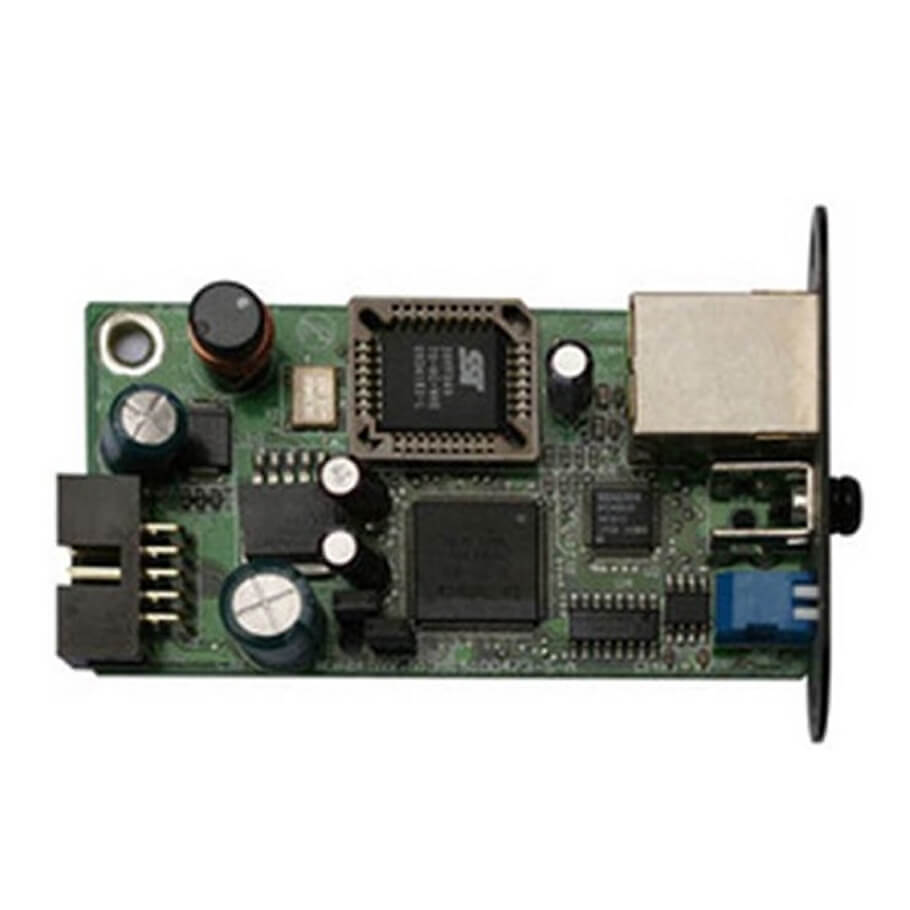

Mini SNMP Card for UPS DELTA N 1/2/3kVA

Mini SNMP Card for UPS DELTA N 1/2/3kVA

Part Number: 3915100473-S

- SNMP Card (fit in mini slot) for N 1/2/3kVA UPS Delta.

Network

- SNMP - SNMPv1 protocol support; accepts NMS monitoring as well as actively sends Trap packets to target hosts.

- HTTP - Monitor and set up through network browser with built-in web server.

- Others - Telnet, TFTP, FTP, BOOTP, SMTP, SNTP, DHCP and WOL.

- MIB - Supports RFC1628 and Delta proprietary UPSv4 MIB.

Management

- Regular power on and off - Can set up UPS power on and off time.

- Regular testing - Battery discharge test to ensure the battery is in good condition.

- Smart power off - Can send power off signal to connected host actively if the host computer has the InsightPower Client or SNMP power off proxy installed.

Diagnosis

- Event log - Keep date, time, and event sequence in event log file

- History records - Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing

Reaction to events

- UPS shutdown - Define delay time for UPS power off to avoid deep discharge.

- Email - Send email notification to predefined recipients in case of power event.

Technical Specifications

- Network Connection: RJ-45 jack connector

- Operating Temperature: 0 ~ 40° C

- Power Input: 3.3VDC

- Power Consumption: 1W max

- Dimensions (L x W): 60.5 x 40 mm

- Weight: 30g.

- Bảo hành: 1 năm.
