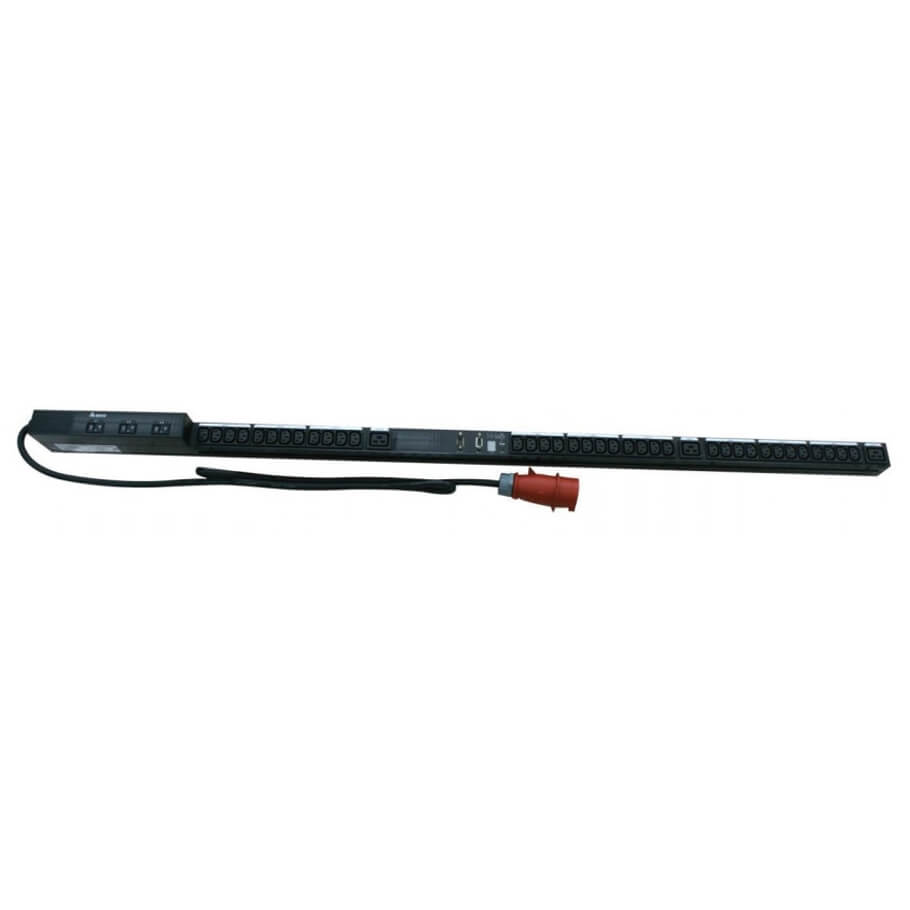

Metered PDU Full Rack DELTA 3 phase (PDU2421A3910001)
Part Number: PDU2421A3910001
- Power distribution unit for standard rack cabinet installation. PDU provides optimal power distribution for devices supplied by UPS.
- Metered PDU with 2 x RS232 interface, display, LEDs and optional SNMP card (P/N: 3915100766-S00).
- Tool-less installation in Delta's standard rack cabinets.
- Brackets included for mounting in other brands rack cabinets.
- Zero-U installation saving valuable rack space.
- Three phase input voltage available.
- LED current (rms value) display and overload warning indicator.
- Branch circuit breaker protection.
- International standards of cables and power plugs/receptacle.
- Upgradable firmware for maintaining optimal function.
- Integrated with the InfraSuite management software.
- Optional SNMP card for remote monitoring.
Specifications
| Input Voltage (Vac)/Phase | 230/240V Three Phase |
| Plug Type | IEC309-16A-5W |
| Output Voltage (Vac) | 200-240V Single Phase |
| Outputs (Number) | 36 x IEC320 C13 |
| 3 x IEC320 C19 | |
| Interface | RS232-1: Connect to a PC for remote operation or a firmware upgrade |
| RS232-2: Connect to an SNMP card or to another PDU | |
| Protection | 3 x 20A/2P breaker |
| Display | Current in Amperes for selected load group |
| LEDs | Alarm conditions |
| Temperature | Operating: 0 ~ 45˚C, Storage: -20 ~ 65˚C |
| Relative Humidity | Operating: 5 ~ 95% |
| Elevation | Operating: 0 ~ 2000m |
| Storage: 0 ~ 15000m | |
| Dimensions | 48 x 1560 x 50mm |
| Weight | 6.06kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 3 năm.
