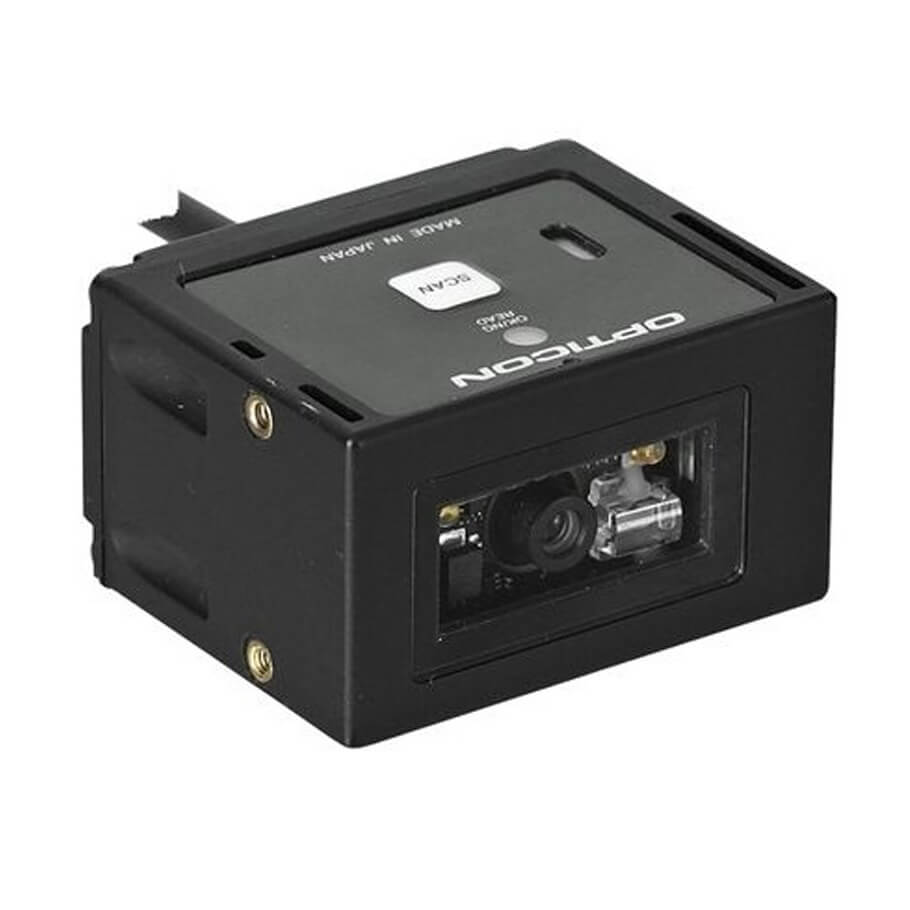

Máy quét mã vạch OPTICON NLV-3101-RS232C + PS

Operating indicators

Visual

1 LED (red/green/orange)

Non-visual

Buzzer

Operating keys

Entry options

1 scan key

Communication

RS232

DB9 PTF connector with external power supply

Power

Voltage requirement

6V ± 5%

Current consumption

Max. 200mA

2D Imager Optics

2D Light source

Aiming green LED, illumination LEDs

2D Scan method

CMOS area sensor, 752 x 480 pixels, gray scale

2D Scan rate

Up to 60 fps

2D Image format

Windows Bitmap, JPEG, TIFF

2D Gradulation

256, 16, 2

2D Image output mode

4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)

2D Curvature

R>16 mm (10-digit Codabar), R>20 mm (12-digit UPC)

2D Min. Resolution at PCS 0.9

0.169 mm / 7 mil at PDF417, 0.212 mm / 8 mil at QR Code and DataMatrix

2D Min. PCS value

0.3

2D Field of view

Horizontal 40.6º, Vertical 26.4º

2D Depth of field

At Code 39, 85 - 125 mm / 3.35 - 4.92 in (0.127 mm / 5 mil), 65 - 205 mm / 2.56 - 8.07 in (0.254 mm / 10 mil), 60 - 295 mm / 2.36 - 11.61 in (0.508 mm / 20 mil), at QR Code, 90 - 115 mm / 3.54 - 4.53 in (0.212 mm / 8.4 mil), 55 - 195 mm / 2.17 7.68 in (0.381 mm / 15 mil

Supported Symbologies

Barcode (1D)

UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on, JAN-8, JAN-13, Code 39, Tri-Optic, Codabar (NW-7), Industrial 2 of 5, Interleaved 2 of 5, S-Code, IATA, Code 93, Code 128, MSI/Plessey, UK/Plessey, TELEPEN, Matrix 2of5, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-Databar, Composite GS1-128, Composite EAN, Composite UPC

Postal code

Chinese Post, Korean Postal Authority code

2D code

PDF417, MicroPDF417, Codablock F,QR code, Micro QR Code, Data Matrix (ECC200/EC0-140), Maxi Code (modes 2~5),Aztec Code, Chinese Sensible Code

Durability

Temperature in operation

-20 to 50 ºC / -4 to 122 ºF

Temperature in storage

-20 to 60 ºC / -4 to 140 ºF

Humidity in operation

20 - 85% (non-condensing)

Humidity in storage

20 - 90% (non-condensing)

Ambient light immunity

Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max

Antistatic electricity

15kV (non-destructive)

Drop test

0.75 m / 2.5 ft drop onto concrete surface

Vibration test

10 100 Hz with 2G for 1 hour

Protection rate

IP65

Regulatory & Safety

Product compliance

CE, FCC Class B, VCCI Class B, RoHS, IEC 62471, EN55022, EN55024, FDA CDRH Class II

Physical

Dimensions (w x h x d)

41.1 x 33 x 24 mm

Weight body

Ca. 30 g / 1.06 oz (excl. cable)

Case

ABS, Black
