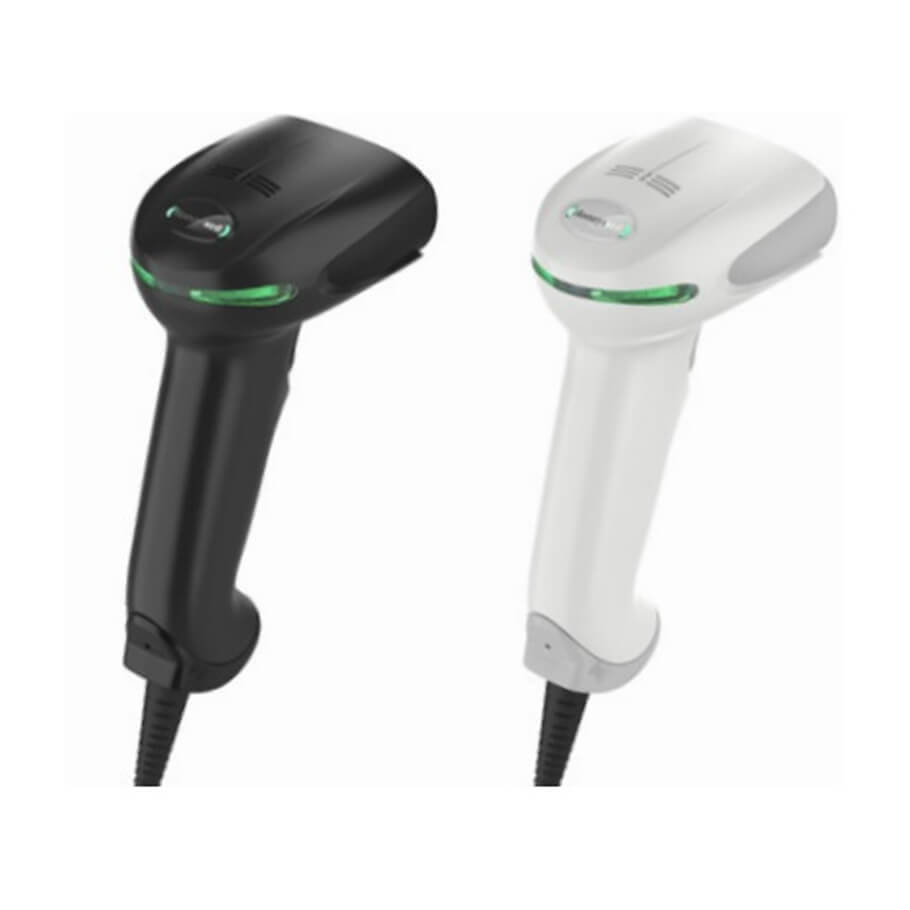

Máy quét mã vạch 2D Honeywell 1950GUD
- Honeywell 1950GUD là dòng máy quét mã vạch Ultra Hitgt Density (UD): Dòng cực cao cấp khả năng giải mã mã vạch nhỏ nhất lên đến 2mil.
- Đọc được các mã vạch chuẩn như: 1D, PDF, 2D.
- Độ rộng vạch nhỏ nhất: 2mil code 39, 4mil QR, 5mil DM.
- Kiểu quét mã vạch: Area Image (1280 x 800 pixel array).
- Giao tiếp hệ thống: USB, Option: Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX.
Đặc tính kỹ thuật
| MECHANICAL/ELECTRICAL | |
| Dimensions (L x W x H) | 99 mm x 64 mm x 165 mm |
| Scanner Weight | 160 g |
| Input Voltage | 4.4V DC – 5.5V DC |
| Operating Power (Charging) Bases | 2.5W (500mA @ 5VDC) |
| Host System Interfaces | USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX |
| User Indicators | Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional) |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C |
| Electrostatic Discharge (ESD) (Scanners and Cradles) | ±8 kV indirect coupling plane, ±15 kV direct air |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Tumble Spec | 2.000 0.5 m (1.6 ft) tumbles (impacts) |
| Drop | Engineered to withstand 50 1.8 m (6 ft) drops to concrete |
| Environmental Sealing | IP41 |
| Light Levels | 0 to 100.000 lux (9.290 foot-candles) |
| SCAN PERFORMANCE | |
| Scan Pattern | Area Image (1280 x 800 pixel array) |
| Motion Tolerance | Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus |
| Scan Angle | SR: Horizontal: 48°; Vertical: 30° HD: Horizontal: 48°; Vertical: 30° |
| Print Contrast | 20% minimum reflectance difference |
| Roll, Pitch, Skew | ±360°, ±45°, ±65° |
| Decode Capabilities | Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies |
- Bảo hành: 12 tháng.
