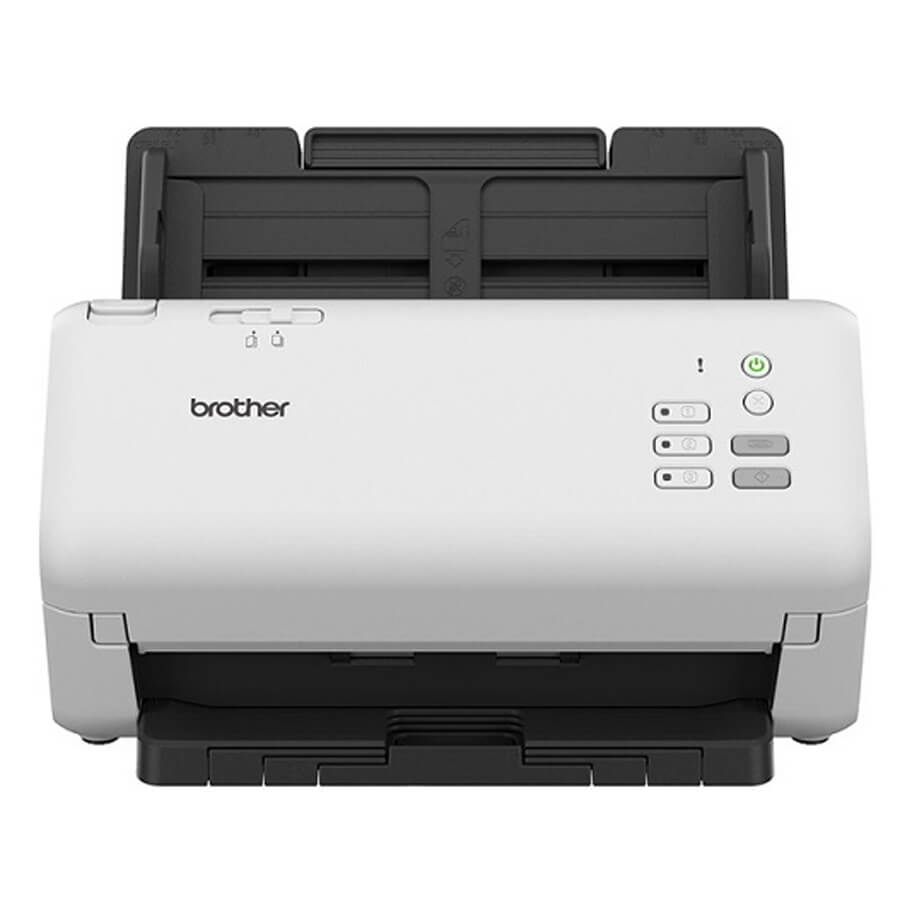

Máy quét hai mặt Brother ADS-4300N
- Máy quét 2 mặt tự động.
- Bộ nhớ: 512MB
- Kết nối mạng có dây: 10Base-T/100Base-TX Ethernet.
- Tốc độ scan (A4): 40ppm (trang trên phút)/ 80ipm (hình ảnh trên phút).
- Độ phân giải quang học: 600 x 600 dpi.
- Hỗ trợ các định dạng file: PDF (single, multi, PDF/A-1b), JPEG, TIFF (single, multi).
- Tính năng scan cơ bản: Scan to PC, Direct Scan (USB Host - up to 128GB), Network (SMB), FTP/SFTP.
- Khay nạp giấy ADF: 80 tờ.
- Kích thước (W x D x H): 300 x 216 x 190 mm.
- Trọng lượng: 2.64kg.
Đặc tính kỹ thuật
| General | |
| Product Form Factor | Sheet Fed Desktop Document Scanner |
| Backup Clock | Up to 24 hours |
| Wired Network Interface | Wired Network interface (10Base-T/100Base-TX) |
| Scanner Type | Dual CIS (contact Image Sensor), LED Array Light Source |
| Local Interface | SuperSpeed USB 3.0, USB 2.0 Host (Rear) |
| Mobile Scan | View scans on your mobile device from your Brother scanner |
| Control Panel | LED, 7 Keys (4 + 3 configurable shortcut keys for quick access) |
| Scan | |
| Scan Speeds (A4) (Colour & Mono) | Up to 40 (pages per minute) |
| InterpolatedScan Resolution | Up to 1,200 x 1,200dpi (dots per inch) |
| Colour Depth | 48-bit internal 24-bit external |
| Scan Speeds 2-sided (A4) | Up to 80 (images per minute) |
| Wake-up Time | USB connected, approx 5 sec from sleep mode |
| Grey Scale | 256 levels (8 bit) |
| Optical Scan Resolution | Up to 600 x 600dpi (dots per inch) |
| Scanner Functions | |
| Image Processing | Auto Deskew (Feed), Auto Image Rotation, Auto Colour Detect Adjust, Blank Page Removal, Auto Scan Size, Scan Margin |
| File Format Support | Including PDF (single, multi, PDF/A-1b, secured, signed), JPEG, TIFF (single, multi) |
| Standard Functions | Scan to PC, Image, Network (SMB), FTP/SFTP |
| Scan Profiles | Create up to 25 preset scan to SFTP/FTP/Network profiles |
| Direct Scan | Scan directly to a USB (acceptable memory size upto 128GB) |
| Feed Control | Ultra Sonic Multi Feed Sensor, Separation Switch |
| Software | |
| Windows Drivers | TWAIN, ISIS, WIA Windows 10 (Home/Pro/Education/Enterprise) (32 or 64 bit editions), Windows 8.1(32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012 |
| Windows Software | Brother ScanEssentials, Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup |
| Macintosh Drivers | AirPrint Scan Support, TWAIN, macOS 10.14.x or greater |
| Macintosh Software | Brother iPrint&Scan for Desktop, Remote Setup |
| Linux Drivers | SANE |
| Media Handling | |
| Automatic Document Feeder (ADF) | 80 Sheet |
| Media Sizes | Width 50.8 - 215.9mm, Height 50.8 - 355.6mm, Long Paper 5000mm |
| Media Types | Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card |
| Media | Paper Weight 40 - 200gsm Plastic Card Thickness Up to 1.32mm embossed, Up to 1.10mm without emboss |
| Mobile and Web Connectivity | |
| Brother Mobile Connect | Use a Brother app to scan to a mobile device running iOS or Android operating system |
| Dimensions & Weights | |
| Dimensions (WxDxH) | 300 x 216 x 190 mm |
| Weights | 2.64kg |
| Duty Cycle | |
| Maximum Daily | 6,000 Sheets |
| Environment | |
| Power Requirements | AC: 100-240V, 50/60 Hz, DC: 24V, 1.9A |
| Power Saving Modes | Sleep, Power Down Auto Power On after power outage |
| Operating Environment | Humidity 20 - 80 % 5°C - 35°C, 41°F - 95°F |
| Power Consumption | Scanning 24W Ready 6.8W Sleep 1.7W Network Standby 2.1W Power O 0.1W |
| Sound Power | Scanning <59dB |
| Storage Environment | Humidity 10 - 90 % -20°C to 60°C, -4°F to 140°F |
- Bảo hành: 12 tháng.
