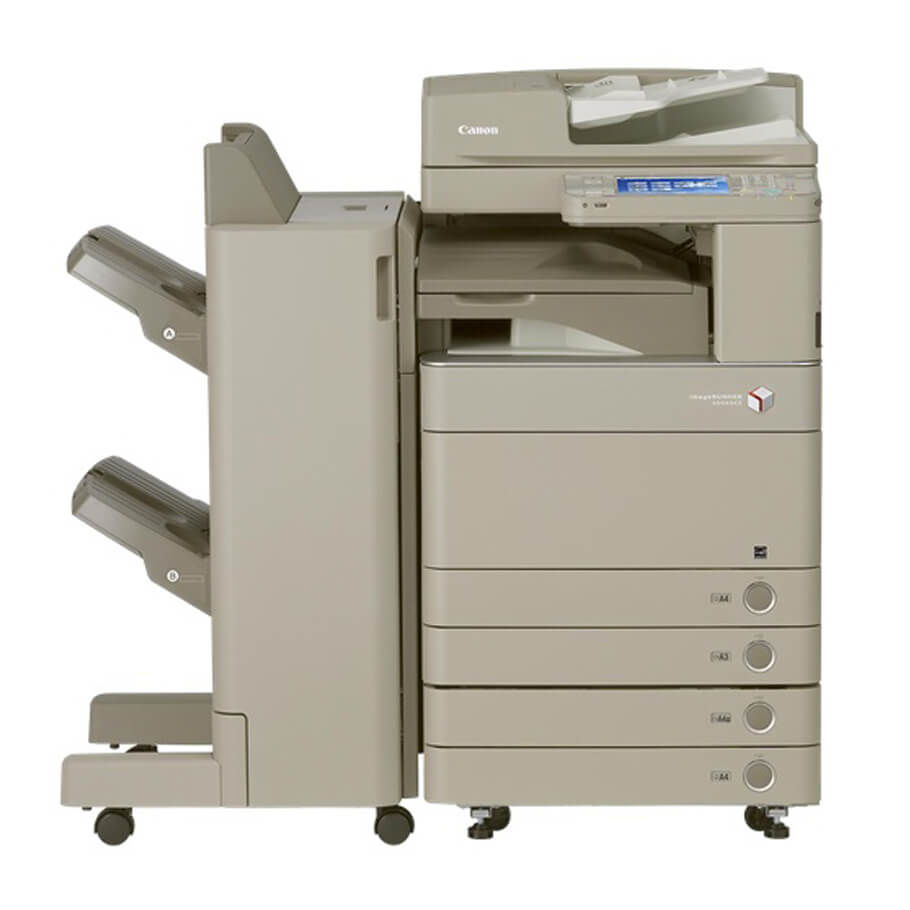

Máy Photocopy màu Canon iR-Advance C5240

Type

Reader, Printer Separated, Desktop

Maximum Original Size

A3

Copy Sizes

Cassette

305 x 457mm, A3, A4, A4R, A5R, B4, B5, B5R

Custom Size 139.7 x 182mm to 304.8 x 457.2mm

Optional Envelope Feeder, No.10 (COM10), Monarch, DL, ISO-C5

Stack Bypass

A5R - SRA3 (320 x 450mm), Envelopes

Custom Size 99 x 140mm to 320 x 457mm

Resolution

Reading

600 x 600dpi

Copying

600 x 600dpi

Printing

1200 x 1200dpi (text / line only)

Copy / Print Speed

A4 (B&W / Colour)

40 / 35ppm

A3 (B&W / Colour)

20 / 18ppm

Magnification

Zoom

25 - 400%

First Copy Time

Black-and-White

5.4secs.

Full Colour

8.1secs.

Warm-Up Time

31 seconds

Multiple Copies / Prints

1 to 999 sheets

Duplexing

Standard automatic stackless

Paper Weight

Cassette

52 to 220gsm

Stack Bypass

52 to 256gsm

Paper Capacity

Standard

550 sheets x 2 cassettes (80 gsm)

Stack Bypass: 100 sheets (80 gsm)

Optional

550 sheets x 2 cassettes (80 gsm)

Paper Deck

2.700 sheets (80 gsm)

Total capacity

5.000 sheets

CPU

1.2GHz

Memory

Standard

2GB RAM

Maximum

2.5GB RAM

Hard Disk Drive

Standard

160GB (Available Disk Space: 15GB)

Maximum

1TB (Available Disk Space: 629GB)

Interface Ethernet

(1000BaseT / 100Base-TX / 10Base-T)

Wireless LAN

(IEEE802.11b/g, Optional), USB2.0

Power Supply

220 - 240V AC, 50 / 60Hz

Power Consumption

1.3kW max.

Dimensions (H x W x D)

Only the Main Unit

800 x 620 x 700 mm

With the Duplex Colour Image Reader Unit-E1

950 x 620 x 715 mm

With the Colour Image Reader Unit-F1

931 x 620 x 712 mm

With the Colour Image Reader Unit-F2

831 x 620 x 700 mm

Weight

Only the Main Unit

Approximately 139kg

With the Duplex Colour Image Reader Unit-E1

Approximately 153kg

With the Colour Image Reader Unit-F1

Approximately 148kg

With the Colour Image Reader Unit-F2

Approximately 144kg

Print Specification

PDL

UFRII (Standard), PCL 5c/6 (Optional), Adobe PostScript 3 (Optional)

Resolution

1200 x 1200dpi (Text / Line only), 600 x 600dpi

Memory

2GB (Uses Main unit RAM)

Hard Disk

Standard 160GB (Available Disk Space: 15GB)

CPU

Canon Custom Processor, 1.2GHz (Uses Main unit CPU)

Supported OS

PCL

Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7

Adobe PostScript 3

Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7, MacOSX (10.4.9 or later)

UFR II

Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7 / Linux, Mac OSX (10.4.9 or later)

Mac-PPD

Mac OS 9.1 or later, Mac OSX (10.2.8 or later)

Interface

Ethernet (1000Base-T / 100Base-TX / 10Base-T), Wireless LAN (IEEE802.11b/g, Optional), USB2.0

Network Protocol

TCP / IP (LPD / Port9100 / WSD / IPP / IPPS / SMB / FTP), IPv6, IPX / SPX (NDS, Bindery), AppleTalk

Pull Scan

Network TWAIN Driver (75 to 600dpi 24 bits colour / 8 bits grayscale / 2 bits Black & White)

Send Specification (Standard)

Scan Resolution

100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Destinations

E-Mail / Internet FAX (SMTP), PC (SMB, FTP), iWDM, WebDAV

Address Book

LDAP, Local (Max.1800)

File Format

TIFF, JPEG, PDF, XPS, High compression PDF / XPS, PDF / A-1b, Optimize PDF for Web
