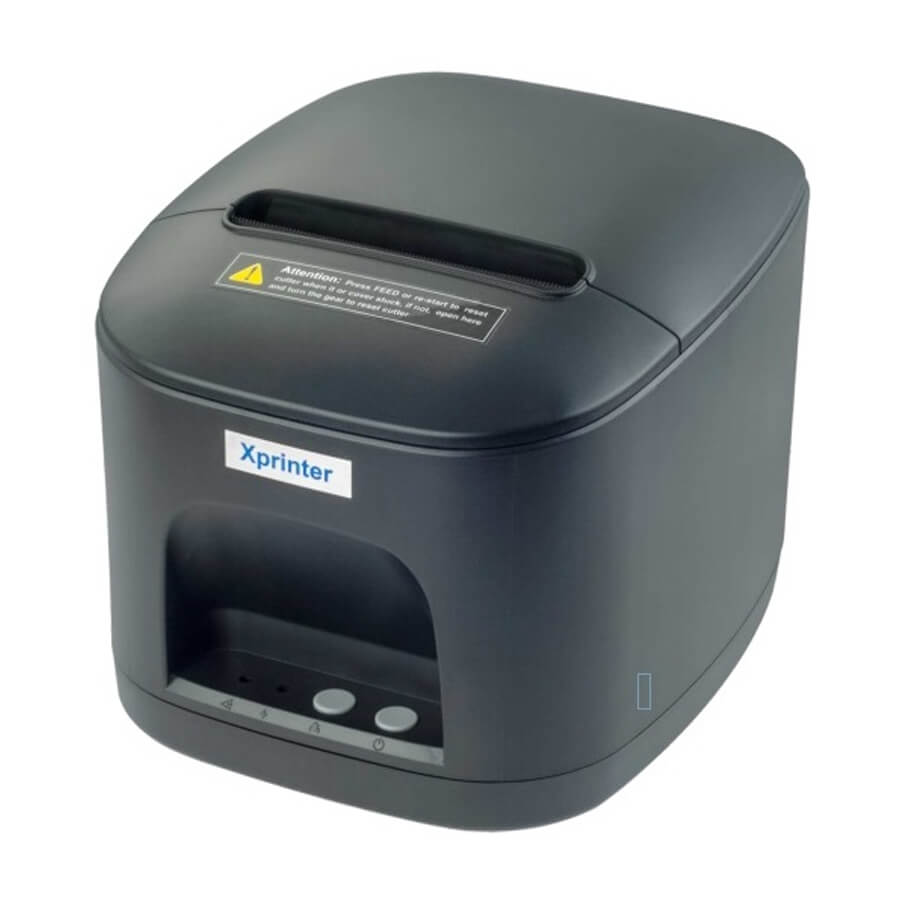

Máy in hóa đơn Xprinter XP-Q80B
- Phương pháp in: Nhiệt trực tiếp.
- Chiều rộng giấy in: 79.5±0.5mm/Φ80mm.
- Chiều rộng bản in: 72mm.
- Khả năng in cột: 576 chấm/dòng hoặc 512 chấm/dòng.
- Tốc độ in: 230 mm/giây.
- Giao diện: Tùy chọn USB/USB + Serial hoặc Lan/USB + Lan.
- Thiết kế kích thước nhỏ và tiêu thụ điện năng thấp.
- Hỗ trợ chức năng báo lỗi và nhắc nhở.
- Hỗ trợ nâng cấp trực tuyến IAP.
Thông số kỹ thuật
| Printing method | Direct thermal |
| Media width | 79.5±0.5mm/Φ80mm |
| Print width | 72mm |
| Column capacity | 576 dots/line or 512 dots/line |
| Printing speed | 230 mm/s |
| Interface | USB/USB + Serial; Lan/USB + Lan |
| Line spacing | 3.75mm (Adjustable by commands) |
| Character size | ANK, Font A: 1.5 x 3.0 mm (12x24 dots), Font B: 1.1 x 2.1mm (9x 10 dots) Simplified/Traditional Chinese: 3.0 x 3.0 mm (24 x 24 dots) |
| Barcode Character | |
| Extension character sheet | PC37 (Standard Europe)/ Katakana/PC850 (Multilingual)/PC860 (Portugal)/PC863 (canadian)/PC865 (Nordic)/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/PC866(Cyrillc#2)/PC852 (Latin2)/PC858/Iranll/Latvian/Arabic/PT151(1251) |
| 1D Barcode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D | QR CODE |
| Input buffer | 64 Kbytes/ 256 Kbytes |
| NV Flash | 256 Kbytes |
| Power | |
| Power adaptor | Input: AC 100~240V, 50~60Hz, output: DC 24V/2.5A |
| Printer Input | DC 24V/2.5A |
| Cash drawer | DC 24V/1A |
| Physical characteristics | |
| Weight | 0.8kg |
| Dimensions | 180 x 145 x 130 mm (D x W x H) |
| Environmental Requirements | |
| Work environment | Temperature (0~45°C) humidity (10~80%) |
| Storage environment | Temperture (-10~60°C) humidity (10~90%) |
| Reliability | |
| Auto cutter | Partial |
| Cutter life | 1.5 million cuts |
| Printer head life | 150km |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/OPOS/Linux/Android/Mac |
- Bảo hành: 12 tháng.
