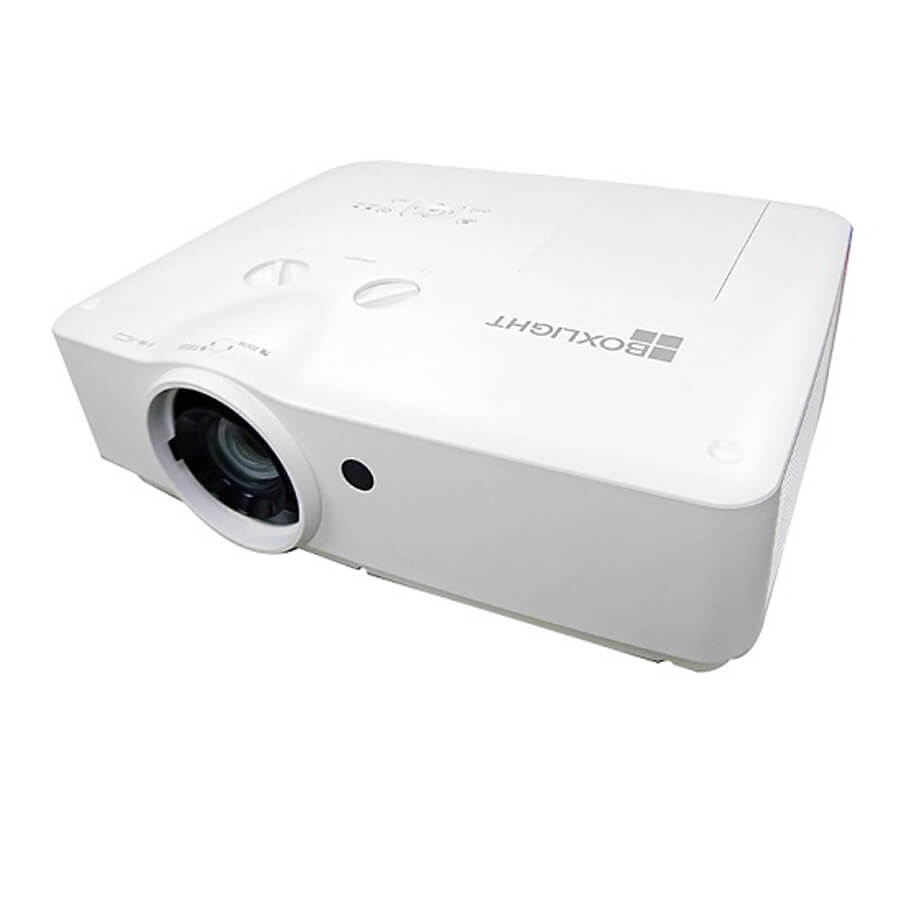

Máy chiếu BOXLIGHT KTX600
- BOXLIGHT KTX60 là dòng máy chiếu sử dụng công nghệ hiển thị 3LCD.
- Cường độ chiếu sáng: 6.000 Ansi lumens.
- Độ phân giải: XGA (1024 x 768 pixels).
- Độ tương phản: 15.000:1.
- Tuổi thọ bóng đèn: 5000H (Normal)/ 10000H (ECO).
- Tỷ lệ trình chiếu: 4:3 (Standard)/ 16:9 (Compatible).
- Loa tích hợp: 1 x 10W.
- Tỷ lệ zoom quang học: 1.6x.
- Kích thước màn chiếu: 40-inch ~ 300-inch.
- Lens Shift: ±40% (Manual), H:±10% (Manual).
- Kết nối Wifi (Wifi Dongle Option) .
- Cổng kết nối :
+ Ngõ vào: VGA x2, Audio in (mini jack, 3.5m) x1, YCbCr/Component x1 (share with VGA in 1), Video x1, Audio in (L/R)-RCA x2, S- Video x1 (share with VGA in 1), HDMI x2 (one is compatible with MHL), USB-A x1 (Support Memeory viewer & WiFi Dongle (Optional Accessory), USB-B x1 (Display), RJ 45 x1.
+ Ngõ ra: VGA x1 (Share with VGA IN 2), Audio out (mini-jack, 3.5mm) x1.
- Ngôn ngữ: 26 ngôn ngữ, trong đó có Tiếng Việt
- Kích thước (W x D x H)): 395 x 318 x 128mm.
- Trọng lượng: 4.45kg
Đặc tính kỹ thuật
| Model | KTX600 |
| Optical Spec. | |
| Brightness | 6000 |
| Display Technology | 3LCD |
| Contract Ratio | 15000:1 (with IRIS&ECO mode) |
| Resolution | XGA (1024x768) |
| Lamp Consumption | Ushio: 280W |
| Noice | ECO: MAX 33.5dB¦Normal: 40dB |
| Lamp Lifetime | 5000H (Normal)/ 10000H (ECO) |
| Display Panel | 3x0.63-inch |
| Aspect Ratio | 4:3 (Standard)/ 16:9 (Compatible) |
| Projection Lens | |
| Zoom/Focus | Manual |
| Zoom Ratio | 1.6x optics |
| Throw Ratio | 70-inch@2.0m; 1.4~2.26:1 |
| F | F: 1.65~2.25 |
| f | f=18.20~29.38mm |
| Screen Size | 1.124m~13.966m (40-inch~300-inch) |
| Lens ShiG V | ±40% (Manual) |
| Lens ShiG H | ±10% (Manual) |
| Generic Spec. | |
| Speaker | 1x10W |
| Scranning Frequency | Hsync Frequency 15~100KHz / Vsync Frequency 48~85Hz |
| Computer Signal Input | PC, VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA, Mac |
| Videp Compatibility | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i |
| Power Requirements | 100~240V @ 50/60Hz |
| Power Consumption | 375W(ECO: <0.5W) |
| ECO Standby Mode Power Consumption | <0.5W |
| Network standby Power Consumption | <5W |
| Keystone Correction | V: ±30°(auto+manual), H: ±15°(manual), Pincushion/Barrel Correction, Corner Keystone |
| OSD (Languages) | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| Input Terminals | VGA x2, Audio in (mini jack, 3.5m) x1, YCbCr/Component x1 (share with VGA in 1), Video x1, Audio in (L/R)-RCA x2, S- Video x1 (share with VGA in 1), HDMI x2 (one is compatible with MHL), USB-A x1 (Support Memeory viewer & WiFi Dongle (Optional Accessory), USB-B x1 (Display), RJ 45 x1 |
| Output Terminals | VGA x1 (Share with VGA IN 2), Audio out (mini-jack,3.5mm) x1 |
| Other Terminals | RS-232x1, RJ45 x1 (control), USB-Bx1 (for up-grade) |
| Mechanical Spec. | |
| Power Supply | AC 100 - 240 V ~ 50-60 Hz |
| Net. Weight | 4.45 kg |
| Max Dimensions (WxHxD) | 395 x 318 x 128 mm |
| Standard Accessories | |
| Standard | Power cord, VGA cable, Remote control, Service Card, QSG (for Projector) |
- Công nghệ Mỹ.
- Xuất xứ: Trung Quốc.
- Bảo hành: Thân máy bảo hành 24 tháng, bóng đèn bảo hành 12 năm hoặc 1000h cho bóng đèn (tùy theo điều kiện nào đến trước).
