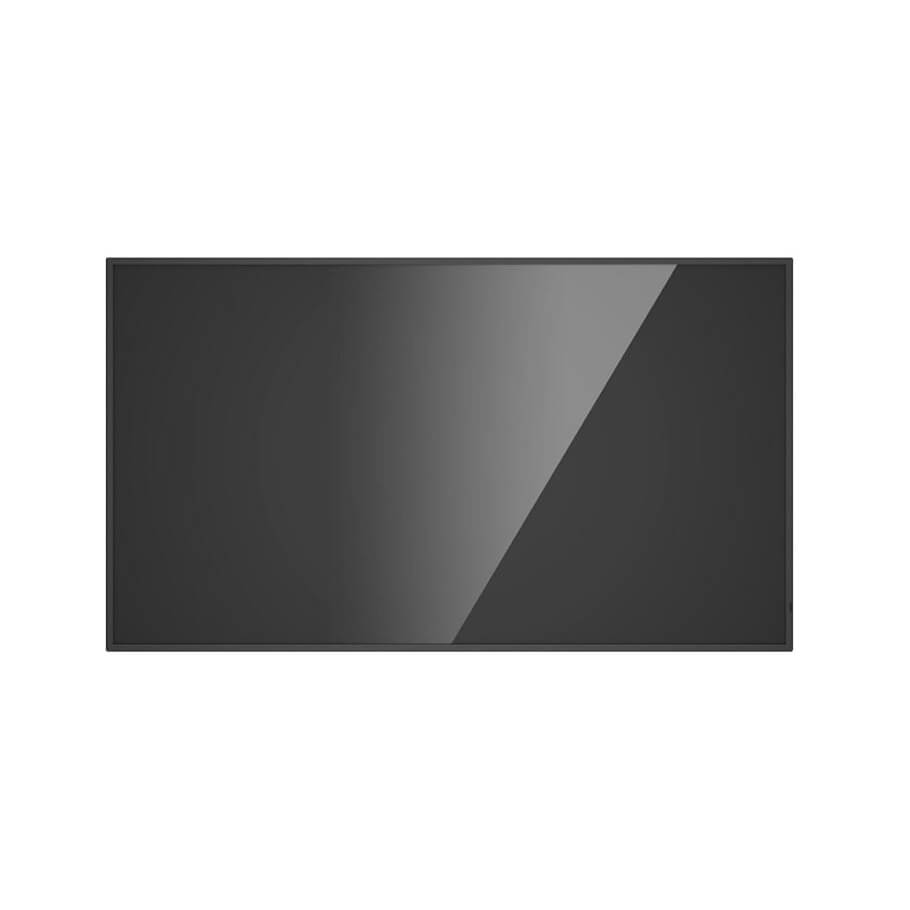

Màn hình chuyên dụng giám sát 86-inch HIKVISION DS-D6086UN
- Độ phân giải: 3840 × 2160 pixel.
- Công nghệ đèn nền DLED Backlit.
- Góc nhìn rộng: 178°(H) /178°(V).
- Độ sáng: 500 cd/m²
- Hệ điều hành: Android 8.0.
- Tích hợp 2 loa 10W.
- Cổng kết nối: DVI-I × 1, HDMI2.0 × 2, DP1.2 × 1, Audio line in × 1, DP1.2 × 1, Audio line out × 1, USB 2.0 × 2, TF Card × 1.
- Hỗ trợ kết nối mạng LAN và Wifi.
Thông số kỹ thuật
| Display | |
| Viewing Angle | 178°(H) /178°(V) |
| Contrast Ratio | 1200:1 |
| Screen Size | 86 inch |
| Active Display Area | 1895.04(H) × 1065.96 (V) mm |
| Backlight | DLED |
| Pixel Pitch | 0.4935 (H) × 0.4935 (V) mm |
| Resolution | 3840 × 2160 |
| Brightness | 500 cd/m² |
| Color Depth | 1.07G(8 Bits+FRC) |
| Response Time | 13 ms |
| Color Gamut | 72% NTSC |
| Reliability | 7 × 24 H |
| Refresh Rate | 60 Hz |
| Built-in System | |
| Operation System | Android 8.0 |
| Processor | A73*2+A53*2，1.7GHz |
| Memory | 3 GB |
| Built-in Storage | 32 GB |
| Interface | |
| Video & Audio Input | DVI-I × 1, HDMI2.0 × 2, DP1.2 × 1, Audio line in × 1 |
| Video & Audio Output | DP1.2 × 1, Audio line out × 1 |
| Network Interface | LAN × 1, Wi-Fi × 1 |
| Data Transmission Interface | USB 2.0 × 2, TF Card × 1 |
| Processing Performance | |
| Decode Capacity | Support 1 channel multimedia video (4K); support decoding 2 MP video stream. |
| Internal Function | |
| Loudspeaker | Built-in speaker (10 W) × 2 |
| Working Environment | |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 104 °F) |
| Storage Humidity | 10% to 90% RH |
| General | |
| Material Type | DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG |
| Power Supply | AC 100V-240V |
| Power Consumption | 375W+/- 10%(TYP), 570W(MAX) |
| Standby Consumption | ≤ 0.5 W |
| Working temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working humidity | 20% to 80% RH |
| Product Dimensions (W × H × D) | 1929 × 1100 × 95.3 mm |
| Net weight | 49.5 kg |
- Bảo hành: 24 tháng.
