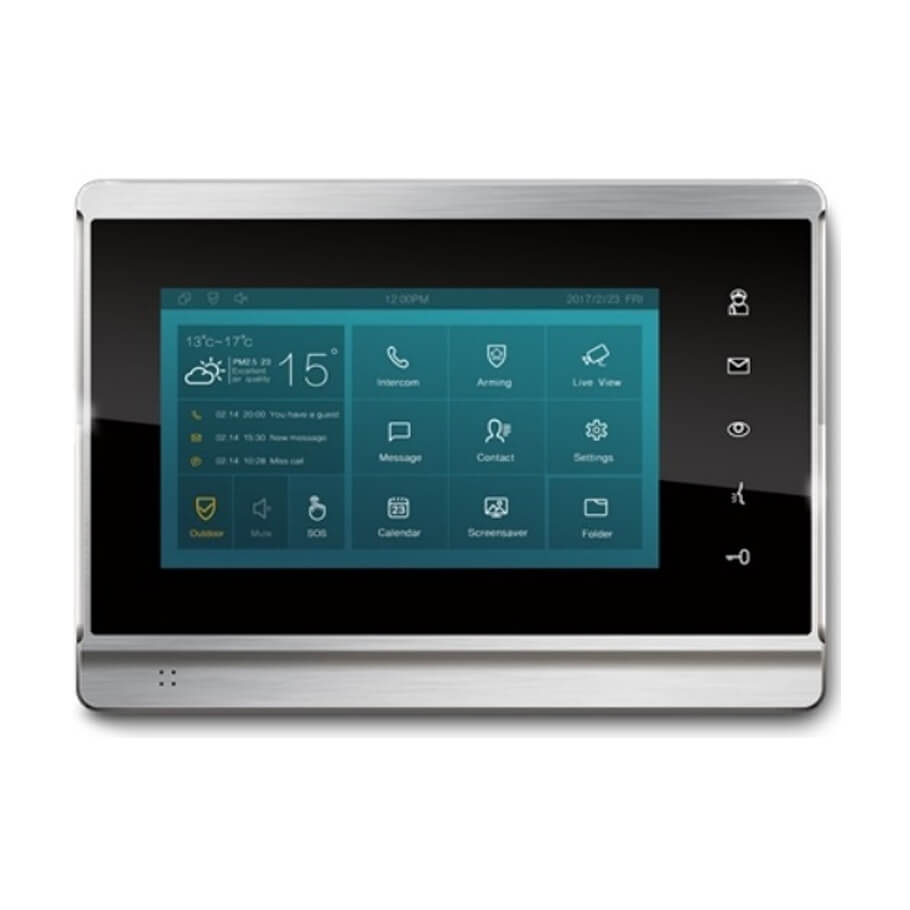

Màn hình chuông cửa AKUVOX IT82C

Màn hình chuông cửa AKUVOX IT82C

- Ultra clear, stylish appearance

- Thin profile and small footprint

- 7” capacitive touch screen with energy saving mode

- 1M pixels CMOS camera

- Reception of a HD picture from the door communicator

- Two-way communication with other units in the network, based on SIP v2.0 protocol

- Powered by PoE or external source

Specifications

Touch Screen Display

- Display Type: Active matrix TFT, transmissive type

- Size: 7 inch (176 mm) diagonal

- Aspect Ratio: 16:9

- Resolution: 1024x600

- Brightness: 300nits (cd/m²)

- Contrast: 800:1

- Color Depth: 24-bit, 16M colors

- Illumination: Edgelit LED

- Viewing Angle: ±80° Left, ±80° Right, ±60° Upper, ±70° Lower

- Touch Screen: Projected Capacitive

Camera

- Camera: 1M pixels, CMOS

Buttons

- Hard Keys: 5 capacitive pushbuttons, programmable, pre-labeled with icons for “SOS”, “Message”, “Live View”, “Dial”, and “Unlock”

Memory

- RAM: 2GB

- Flash: 8GB

Communications

- Ethernet: 2x10/100 Mbps ports, auto-switching, autodiscovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant

Video

- Streaming Formats: H.264

Audio

- Features: Built-in microphone and speaker

Environmental

- Temperature: 14° to 112°F (-10° to 45°C)

- Humidity: 10% to 90% (non-condensing)

Mechanical parameters

- Dimensions (W x H x D): 232 x 160 x 21 mm

- Bảo hành: 24 tháng.
