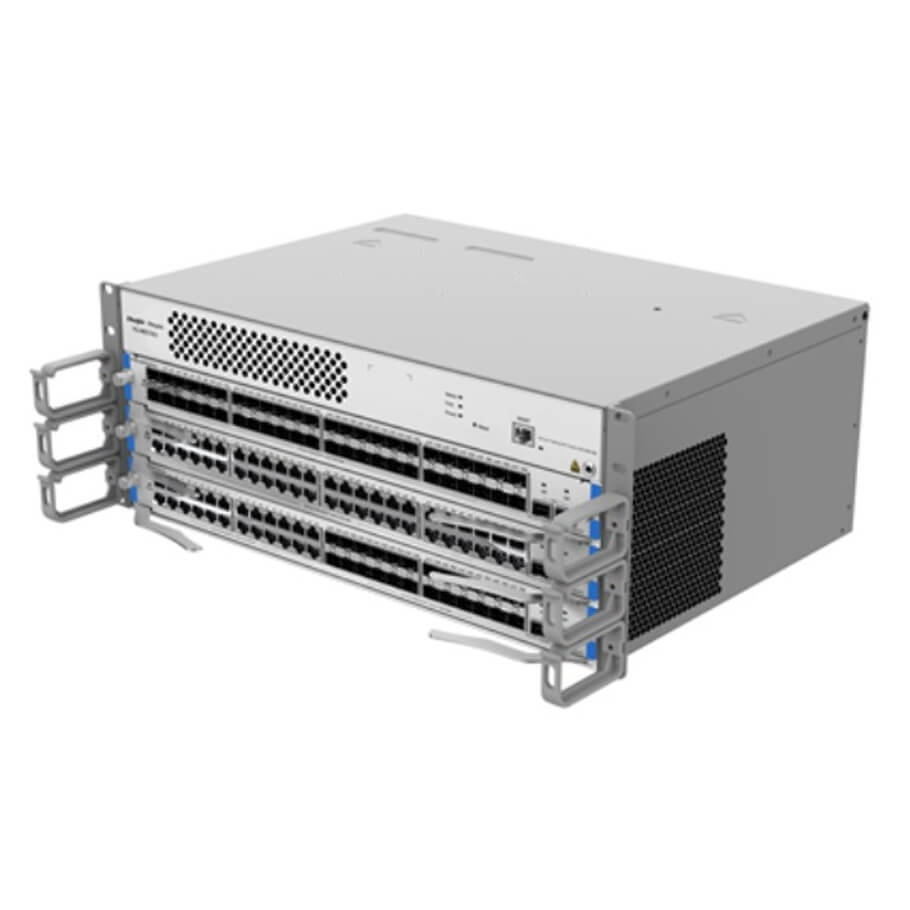

Layer 3 Chassis Cloud Managed Switch RUIJIE RG-NBS7003
- Hỗ trợ 144 x 10/100/1000BASE-T SFP ports (Maximum), 48 x SFP+ ports (Maximum).
- Công suất chuyển mạch: 480Gbps.
- Tốc độ chuyển tiếp: 360Mpps.
- Kích thước bảng địachỉ MAC: 32000.
- Kích thước (W x D x H): 442 x 313 x 175 mm 4U.
Thông số kỹ thuật
| Basic | |
| 10/100/1000Base-T ports | 144 x 10/100/1000BASE-T ports (Maximum) |
| SFP ports | 144 x SFP ports (Maximum) |
| SFP+ ports | 48 x SFP+ ports (Maximum) |
| Layer Type | Layer 3 |
| Switching capacity | 480Gbps |
| Forwarding rate | 360Mpps |
| Packet Buffer | 16 Mbit |
| MAC address table | 32000 |
| Maximum VLAN Support | 4094 |
| Dimensions (W x D x H) | 442 mm x 313 mm x 175 mm 4U |
| Weight (With package) | 9.6kg |
| MTBF | > 400,000 |
| Layer 2 Features | |
| Jumbo Frame | 9216 |
| Flow Control | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | - |
| Port Fast | Yes |
| BPDU Guard | Yes |
| Errdisable Recovery | Yes |
| Max. Aggregation Group | 16 |
| Max. Member per Group | 8 |
| Unknow Unicast Storm Suppression | Yes |
| Multicast / Broadcast Storm Suppression | Yes |
| Many-to-One Mirroring | Yes |
| VLAN Range | 1-4094 |
| Port-based VLAN | Yes |
| MAC-based VLAN | Yes |
| IP-based VLAN | Yes |
| Voice VLAN | Yes |
| RLDP | Yes |
| LLDP / LLDP-MED | Yes |
| Cable Testing | Yes |
| IGMP Snooping v1/v2/v3 | Yes |
| Software Features | |
| Ping | Yes |
| Traceroute | Yes |
| ACL Entries | 1900 |
| Static Routing | Yes |
| IP Standard ACL | Yes |
| MAC-based Extended ACL | Yes |
| IP-based Extended ACL | Yes |
| Port-based Rate Limit (Ingress/Egress) | Yes |
| SNMP v1/v2c/v3 | Yes |
| OSPF | Yes |
| RIP | Yes |
| IPv6 | Yes |
| SNMP | Yes |
| 802.1X | Yes |
| DHCP Server | Yes |
| Web Management | Yes |
| Management IP | 10.44.77.200 |
| HTTP/HTTPS | Yes |
| Cloud Management | Yes |
| SON (Self-Organizing Network) with IP | Yes |
| Camera Recognition | Yes |
| Loop Prevention | Yes |
| Loop Notification | Yes |
| PoE Usage Alarm | - |
| Protection Port | Yes |
| IP Source Guard | Yes |
| Anti-ARP Spoofing | Yes |
| DHCP Snooping | Yes |
| DHCP Client | Yes |
| Physical Features | |
| Reset Button | Rear |
| Cable Hot-swappable | Yes |
| Power Supply Slot | 2 |
| Power Supplies | Modular Power Supply |
| Power Consumption | ≤ 50W |
| EEE | Yes |
| Fan | 1 |
| Airflow | Left/right-to-Rear |
| Fan Adaptive Speed Adjustment | Yes |
| Acoustic Noise | < 50dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Port Surge | 6 kV |
| Operating Altitude (meters) | -500 to 5000 |
| Certificate | CE, RoHS |
- Bảo hành: 5 năm.
