0916 287 068 Glass Break Sensor TAKEX GS-2000E

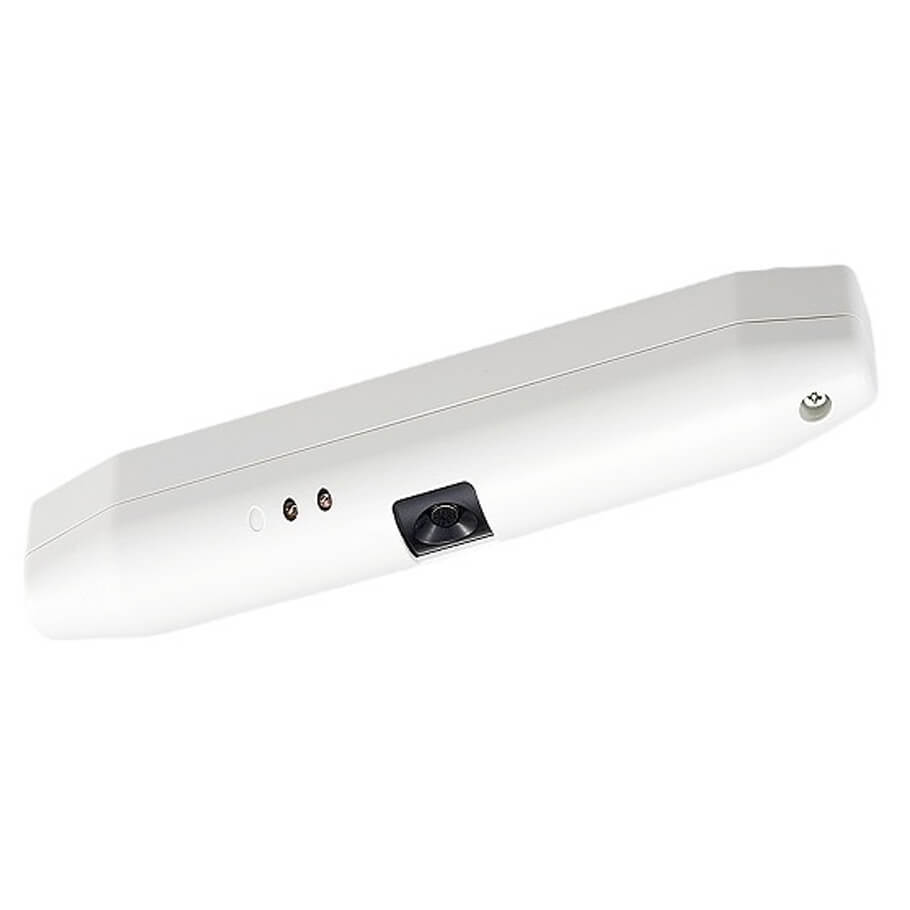

Glass Break Sensor TAKEX GS-2000E
- Glass break sensor TAKEX GS-2000E is an ultrasonic sensor designed to detect the sound of breaking glass such as plate glass windows, doors, showcases etc. Its slim and inconspicuous body allows the unit to be used in various places.
Feature
- Easy operation check: The alarm LED and the environmental LED are available for easy operational and environmental check.
- Alarm memory function: When the unit has been activated, the alarm LED (Red) will flash for 3 minutes, and remain lit for 47 minutes afterward. This makes identification of triggered devices easier when multiple units are used in the same location.
- Easy installation: The protection area is vertically 7m max. and horizontally 8m max.
(Variable range : vertically 30°in front direction)
- Other features:
+ Sensitivity adjustment;
+ Slim and compact design (height 45mm x depth 32mm);
+ Glass checker EG-2000 available (Optional);
+ Screw-less terminal block.
Specification
| Detection method | Ultrasonic Detection |
| Operation area | Distance direction: 8m Extension direction: 7m |
| Area adjustment scope | Vertical direction: 30° (by 5° pitch) Horizontal direction: ±4° (by using base mounting hole) |
| Power supply voltage | DC 9V to 28V (no polarity) |
| Consumption current | 25mA or less |
| Alarm output | Contact method: Dry solid-state contact (N.O. /N.C. selectable) Contact operation: One-shot (approximately 2 sec) Contact rating: DC 30 V (AC 24 V)/0.25 A (resistive load) (built-in contact protection resistance 3.3 Ω) |
| Tamper output | Contact method: Dry contact (N.C.) Contact operation: Continuous output when the sensor unit is detached (until the sensor unit is mounted) Contact rating: DC 30 V/0.1 A (resistive load) |
| Alarm indicator | Red LED In check mode: Blinks (approx. every 2 sec) When the alarm is set off: Lights up (for approx. 2 sec) In memory operation: Auto resets after blinking for 3 min, and being lit up for 47 min When the alarm for abnormalities is set off: Lights up (continuously) (Available to set only the alarm and memory display to ON/OFF using the mode selector) |
| Environmental indicator | Orange LED When environmental error occurs: Lights up (in check mode) When checking the sensitivity: Lights up (in check mode) |
| Auxiliary functions | Check mode function, Noise reduction function, Self-diagnosis function, Tamper function |
| Ambient operating temperature | 14°F to 122°F (–10°C to +50°C) (No condensation) |
| Installation place | Indoor: Ceiling and wall surfaces |
| Wiring connection | Terminals |
| Weight | Approx. 4.2oz (120g) |
| Appearance | Resin |
- Bảo hành: 12 tháng.
