0916 287 068 Firewall Fortinet FortiGate FG-100F-BDL-950-36
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng FORTINET >> Firewall Fortinet FortiGate FG-100F-BDL-950-36
Mã số:04758874

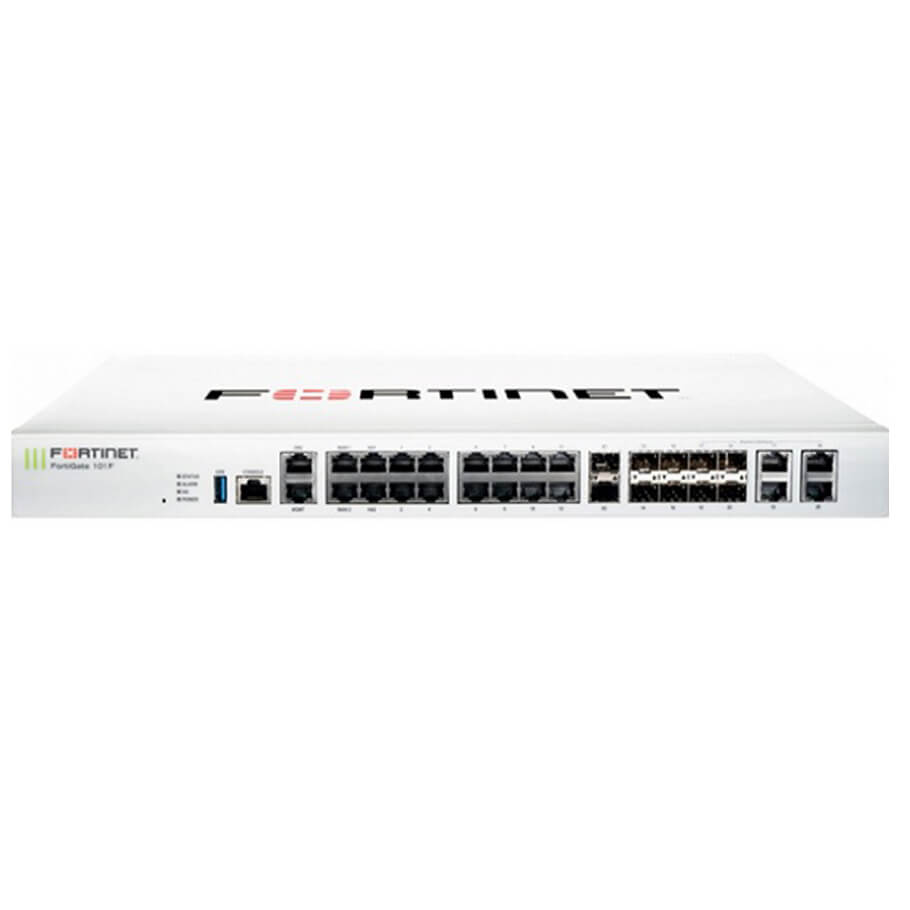

Firewall Fortinet FortiGate FG-100F-BDL-950-36
- Fortinet FortiGate FG-100F-BDL-950-36 Bundle Security Appliance 22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.
- Hardware plus 3 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and 24x7 FortiCare).
Specifications
| Hardware Specifications | |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/HA /DMZ Ports | 1/2/1 |
| GE SFP Slots | 4 |
| 10 GE SFP+ Slots | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | - |
| Included Transceivers | 0 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput2 | 2.6 Gbps |
| NGFW Throughput2, 4 | 1.6 Gbps |
| Threat Protection Throughput2, 5 | 1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 5 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56 |
| Firewall Policies | 10 |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,5 |
| Client-to-Gateway IPsec VPN Tunnels | 16 |
| SSL-VPN Throughput | 750 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS)3 | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 1,8 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 135 |
| Application Control Throughput (HTTP 64K)2 | 2.2 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 3.29 kg |
| Environment | |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Heat Dissipation | 119.77 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
