0916 287 068 Extended Module ZKTeco EX0808
Trang Chủ >>
Access Control-Kiểm soát cửa >> Access Control ZKTeco >> Extended Module ZKTeco EX0808
Mã số:37054440

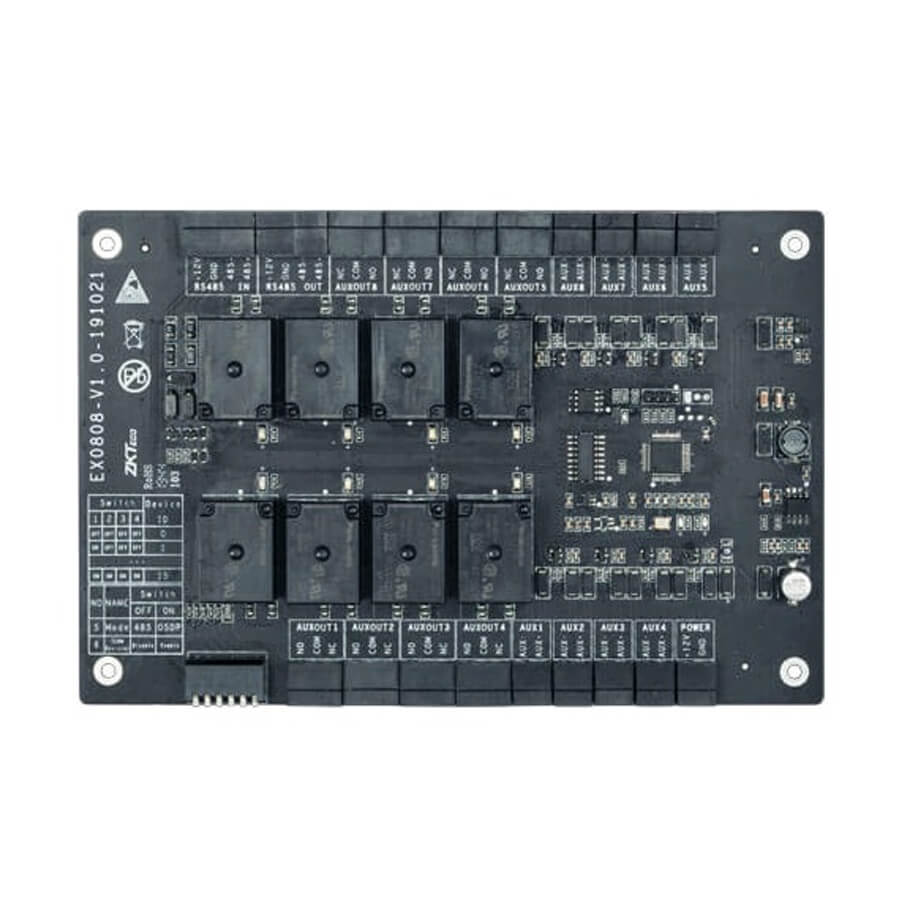

Extended Module ZKTeco EX0808
- EX0808 consists of 8 AUX inputs and 8 AUX outputs. It reduces the cost of projects needed to fulfill extended I/O requirements. It can provide a professional access control solution with inBio Pro panels, C3 Pro panels and the ZKBioSecurity software, a very powerful allin-one access control platform. EX0808 can also be set to OSDP communication, and can be integrated with other OSDP panels smoothly. Each inBio Pro and C3 Pro panel can support up to 8 EX0808 boards (maximum 64 AUX inputs and 64 AUX outputs). Clients could also choose to purchase a metal case for easy installation.
Specifications
| Aux. Input | 8 |
| Aux Output Relay | 8 |
| Communication | RS485 and OSDP (version 2.1.7) |
| Baud Rate for RS-485 / OSDP | 9,600bps |
| RS485 / OSDP Address | Set by the DIP switch |
| Dimension (L x W) | 160 x 106 mm |
| Net Weight | 0.2kg |
| Consumption | 3.6W @ 12V DC 300mA |
| Power Supply | 12V DC 300mA |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 20% to 80% |
| Output Relay | 3 Form-C Relays-SPDT 5A@ 30V DC or 10A @ 30V AC |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
