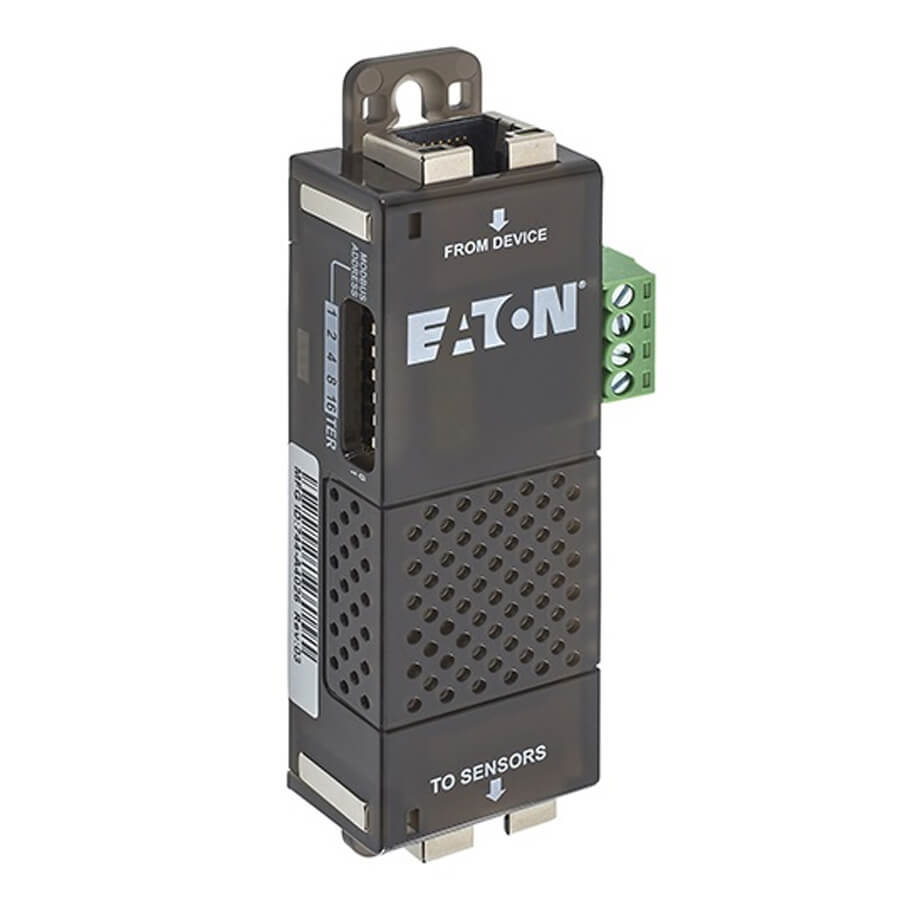

Environmental Monitoring Probe Gen 2 EATON EMPDT1H1C2 (744-A4026)
- The Eaton Environmental Monitoring Probe (EMP) Gen 2 (EMPDT1H1C2) is a second-generation environmental monitoring probe for the Eaton Gigabit Network Card and Eaton rack PDUs including G3 (firmware 4.x or later), G3HD and G3+. The new EMP maintains all the functionality of the previous generation of sensors (temperature, humidity and dry-contact monitoring) while adding the ability to be daisy-chained (up to 3 per host), allowing multiple sensors to connect to a single host. For optimum air intake measurement within an enclosure, the EMP Gen 2 provides tie wrap mounting options for front and rear door perforation to specifically measure air flow at the intake point. This enhances the richness of rack-level environmental data for the top, middle and bottom of the rack.
Đặc tính kỹ thuật
| Type | Environmental monitoring device |
| Compatible with | Network-M2 and Eaton rack PDUs including G3 (firmware 4.x or later), G3HD and G3+ |
| Mounting options | The EMP Gen 2 includes bottom and side mounting capabilities for both UPS and PDU installation – see diagram below |
| Sensor capability | Temperature, humidity and two dry-contact sensors for expansion |
| Measurement accuracy | Measure temperatures from 0°C to 70°C with an accuracy of ±2°C and relative humidity from 10% to 90% with an accuracy of ±5% |
| Dimensions (H x W x D) | 57.6 x 37.6 x 29.3 mm |
| Weight | 34 g |
- Bảo hành: 24 tháng.
