0916 287 068 Electronical Latching Relay THEBEN OKTO ES12-UC
Trang Chủ >>
Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Electronical Latching Relay THEBEN OKTO ES12-UC
Mã số:13142628

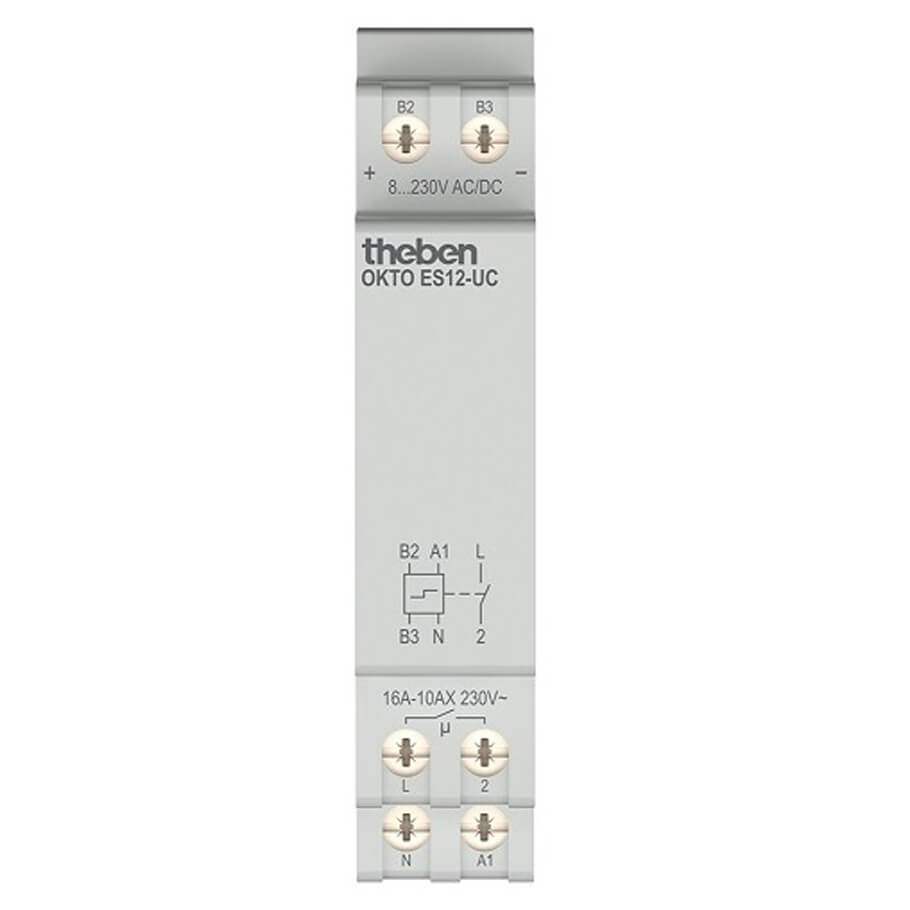

Electronical Latching Relay THEBEN OKTO ES12-UC
- Electronical latching relay with 1 channel/contact (normally open contact).
- Electronicall latching relay with 1 channel/contact (normally open contact).
- Potential-free multi-voltage input (8 V to 230V).
- Comfortable lighting control of one common consumer with several push-buttons possible.
- Particularly quiet operation of the installation switch.
- High glow lamp load up to 100mA.
- Automatic 3-/4-wire detection of the pulse switch.
- Potential-free with SELV.
- Lamps-friendly due to zero-crossing switching for high LED loads (up to 600W).
- Stand-by consumption of only 0.3W.
Đặc tính kỹ thuật
| Operating voltage | 230 VAC |
| Frequency | 50 – 60 Hz |
| Width | 1 modules |
| Installation type | DIN rail |
| Stand-by consumption | ~0.3 W |
| Glow lamp load | 100 mA |
| Type of contact | NO contact |
| Incandescent/halogen lamp load | 2600 W |
| LED lamp < 2 W | 55 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Switching capacity | 16 A at 230 V AC, cos φ = 1, 10 AX at 230 V AC, cos φ = 0.6 |
| Zero-cross switching | ✓ |
| Housing and insulation material | High-temperature resistant, selfextinguishing thermoplastic |
| Ambient temperature | -25°C ... 50°C |
| Type of protection | IP 20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
Giá: 1.144.000 VND
