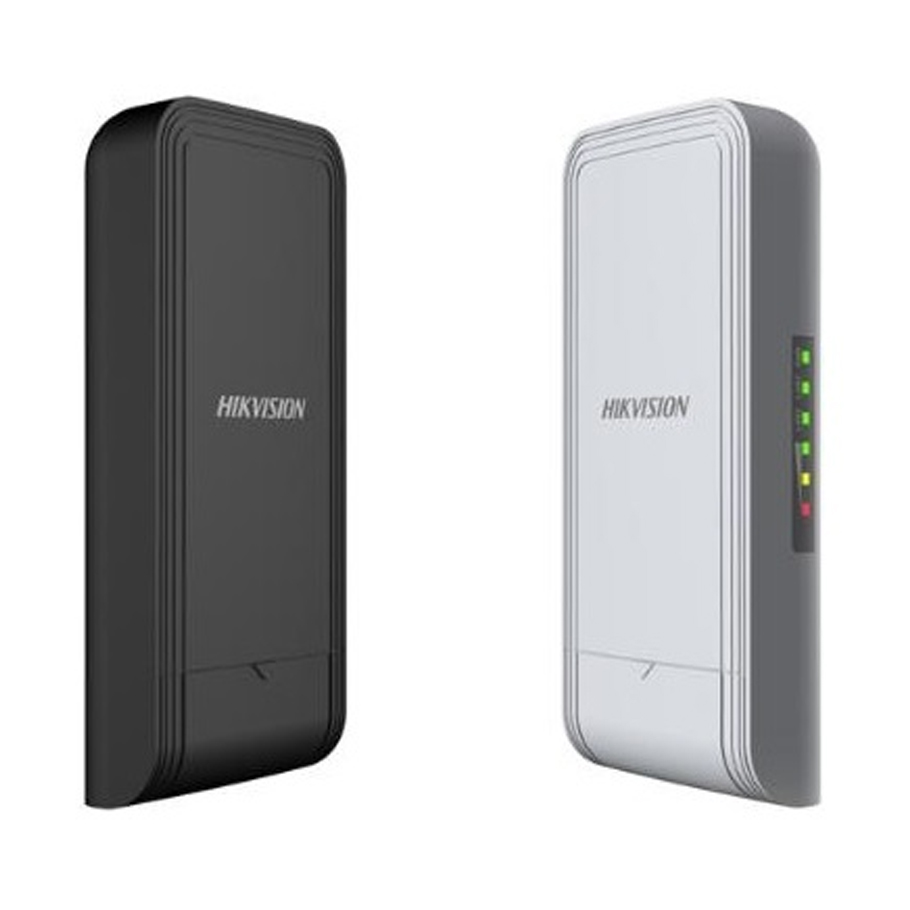

Dual Elevator Wireless Bridge HIKVISION DS-3WF0BC-2NT
- Băng thông tối đa lên đến 300Mbps.
- Khoảng cách truyền dẫn lên đến 200 mét.
- Thiết kế đặc biệt cho việc truyền dẫn video.
- Dễ dàng cấu hình qua giao diện Web.
- 2 x 2 MIMO antenna.
- Bao gồm 1 bộ phát và nhận.
Thông số kỹ thuật
| Wireless Parameter | |
| Wireless Standard | IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) |
| Max. Transmission Rate of Air Interface | ≤ 300 Mbps |
| Working Frequency Band | 2400 MHz ~ 2483.5 MH |
| Antenna Gain | 7 dBi |
| Antenna Angle | (H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65° |
| Transmitting Power | 19±2 dBm (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -68 ± 2 dBm @HT40 MCS7 |
| Throughput Rate | Point to point: Support up to 2-ch IPC (2MP) in Max. 0.2 KM distance and Max. 30 Mbps bandwidth |
| Hardware Parameter | |
| Network Interface | 2 × 10/100 Mbps RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, Signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 12-24 VDC Passive PoE |
| Software Function | |
| Application Function | IFM, IPM |
| Channel Width | 10/20/40 MHz |
| Channel Selection | Auto/manual selection |
| Network Protocol | NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web, iVMS-4200, HCP |
| Upgrade | Web, iVMS-4200, HCP |
| System Log | Syslog, Control center information |
| General | |
| Dimensions (W × H × D) | 92 mm × 187 mm × 46 mm |
| Weight | 0.26 kg (0.57 lb) per device |
| Packing List | Wireless Bridge × 2, Power Adapter (12 VDC, 1 A) × 2, 10/100 Mbps PoE Injector × 2, Binding Tape × 4, Quick Start Guide ×1 |
| Packing Method | Packing in pairs |
| Working Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Installation Mode | Pole Mounting |
| Ingress Protection | IP55 |
| Power Consumption | 1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17 |
- Xuất xứ: Trung Quốc.
