0916 287 068 Digital VoIP Gateway Dinstar MTG3000
Trang Chủ >>
Điện thoại IP >> VoIP Gateway Dinstar >> Digital VoIP Gateway Dinstar MTG3000
Mã số:05097086

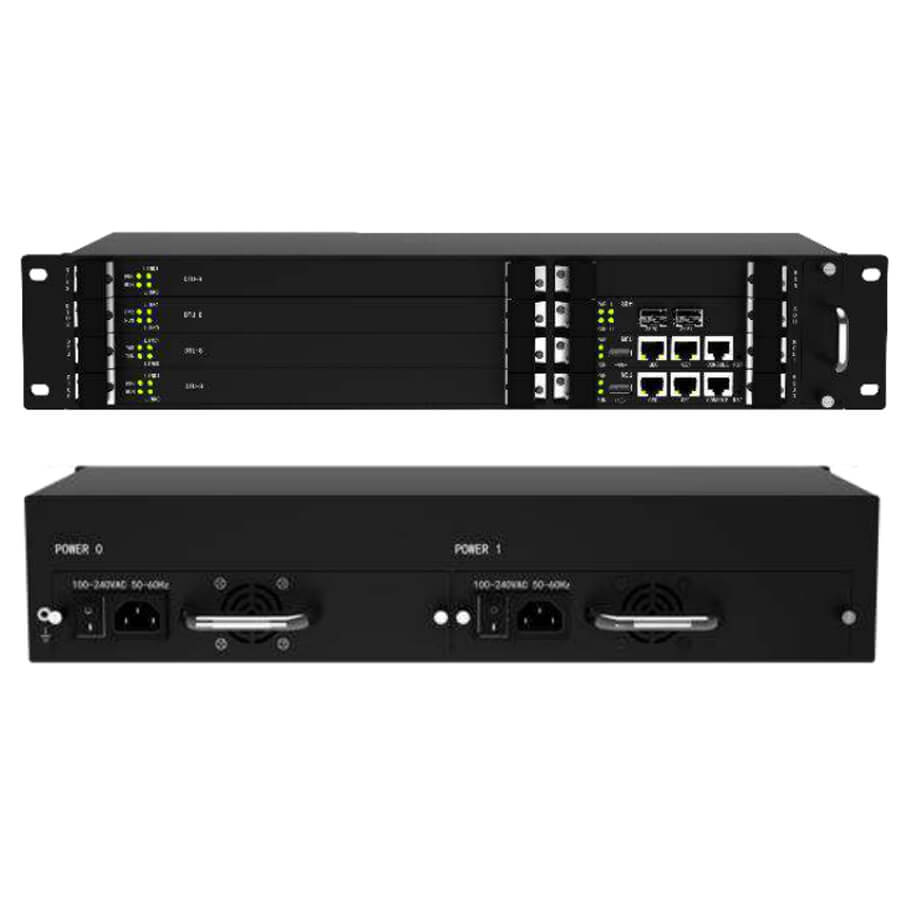

Digital VoIP Gateway Dinstar MTG3000
- Carrier grade hardware design, 1+1 power supply and MCU, hot plug.
- High-integrated structure, STM-1 155M (63*E1) in 2U size.
- Support flexible dialing rules and operations, allowing users to customize dialing rules according to different working environments.
- Support multiple coding standards: G.711A/U, G.723.1, G.729A/B and iLBC.
- High compatibility, interoperable with PBX of Avaya, NEC and Alcatel, and also leading soft-switch of Huawei, Cisco and ZTE etc.
Đặc tính kỹ thuật
| Physical Interfaces | - SDH Interfaces 2* Standard LC SDH, 155M 1+1 Redundancy Channels Protection Master/Slave Clock Source - Main Control Unit(MCU) 1+1 Redundancy, Hot Plug - Digital Processing Unit (DTU) 4* DTU Maximum Support 512 Voice Channels Each Board - Ethernet Interface GE1: 10/100/1000 BaseT Adaptive Ethernet GE0: 10/100/1000 BaseT Adaptive Ethernet - Serial Port 1* RS232, 115200bps |
| VoIP Protocol | SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 RTP/RTCP, RFC2198, 1889 SIP-T,RFC3372, RFC3204, RFC3398 SIP Trunk Work Mode :Peer/Access SIP/IMS Registration: with up to 256 SIP Accounts NAT: Dynamic NAT, Report |
| Call Features | Flexible Route Methods PSTN-PSTN, PSTN-IP，IP-PSTN Intelligent Routing Rules Call Routing base on Time Call Routing base on Caller/Called Prefixes 256 Route Rules for each Direction Caller and Called Number Manipulation |
| Voice Capabilities | Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC, AMR Silence Suppression Comfort Noise Voice Activity Detection Echo Cancellation (G.168),with up to 128ms Adaptive Dynamic Buffer Voice ,Fax Gain Control FAX:T.38 and Pass-through Support Modem/POS DTMF Mode: RFC2833/Signal/Inband Clear Channel/Clear Mode |
| Software Features | Local/Transparent Ring Back Tone Overlapping Dialing Dialing Rules，with up to 2000 PSTN group by E1 port or E1 Timeslot IP Trunk Group Configuration Voice Codecs Group Caller and Called Number White Lists Caller and Called Number Black Lists Access Rule Lists IP Trunk Priority |
| Environmental | Redundant Power Supply Power Supply: 100-240VAC, 50-60 Hz Power Consumption:110W Operating Temperature:0 ℃ ~ 45 ℃ Storage Temperature: -20 ℃ ~80 ℃ Humidity:10%-90% Non-Condensing Dimensions(W/D/H): 437*320*88mm(2U) Unit Weight: 6.5kg Compliance: CE, FCC,CCC |
| PSTN | - ISDN PRI: 23B+D(T1),30B+D(E1),NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig - Signal 7/SS7: ITU-T, ANSI，ITU-CHINA MTP1/MTP2/MTP3, TUP/ISUP - E1 Frame Type: DF,MF_CRC,MF - Line Code: HDB3 - Clock Source: Local/Remote Clock Source |
| Maintenance | Web GUI Configuration Data Backup/Restore PSTN Call Statistics SIP Trunk Call Statistics Firmware Upgrade via TFTP/FTP/Web Network Capture SNMP v2 Syslog: Debug, Info, Error, Warning , NoticeCall History Records via Syslog NTP Synchronization Centralized Management System |
- Bảo hành: 12 tháng.
Giá: 294.300.000 VND
