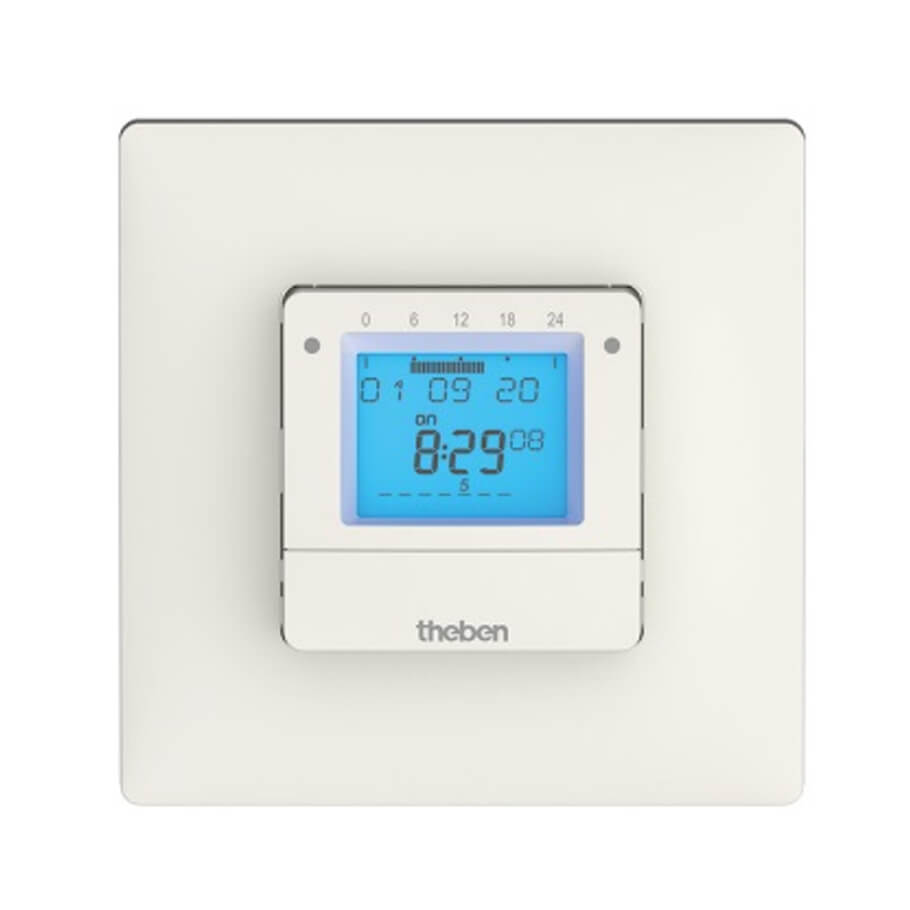

Digital Time Switch THEBEN TR 030 top3 UP
Digital Time Switch THEBEN TR 030 top3 UP
- Digital time switch with weekly program for flush-mounted wallinstallation.
- 1 channel.
- Programming by app possible.
- Safe transfer via optional Bluetooth Low Energy OBELISK top3.
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch.
- 3 special programs (small annual program).
- Cycle, random and pulse program.
- 84 memory locations.
- DuoFix spring terminals.
- Text-oriented user guidance in display.
- 6 year power reserve.
- Interface for OBELISK top2 memory card (PC programming).
- Switching preselection.
- Permanent switching ON/OFF.
- Integrated operating hour counter.
- Holiday program.
- PIN coding.
- Automatic summer/winter time changeover.
- Adapter frames for common switch ranges available as accessory.
Đặc tính kỹ thuật
Operating voltage | 230 V AC |
Frequency | 50 Hz |
Installation type | Flush-mounted wall installation |
Type of contact | NO contact |
Program | Weekly program |
Program functions | ON-OFF, Pulse, Cycle |
Number of channels | 1 |
Number of memory locations | 84 |
Power reserve | 6 years |
Switching capacity at 250 V AC, cos φ = 1 | 10 A |
Switching capacity at 250 V AC, cos φ = 0,6 | 2 A |
Incandescent/halogen lamp load | 2300 W |
LED lamp < 2 W | 600 W |
LED lamp 2-8 W | 50 W |
LED lamp > 8 W | 600 W |
Shortest switching times | 1 s |
Time accuracy at 25°C | typical ± 0,25 s/day (quartz) |
Time basis | Quartz |
Stand-by consumption | ~0.4 W |
Type of connection | Screw terminals |
Keyboards | 4 touch buttons |
Housing and insulation material | High-temperature resistant, selfextinguishing thermoplastic |
Type of protection | IP 20 |
Protection class | II according to EN 60 730-1 |
Ambient temperature | -5°C ... 55°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
