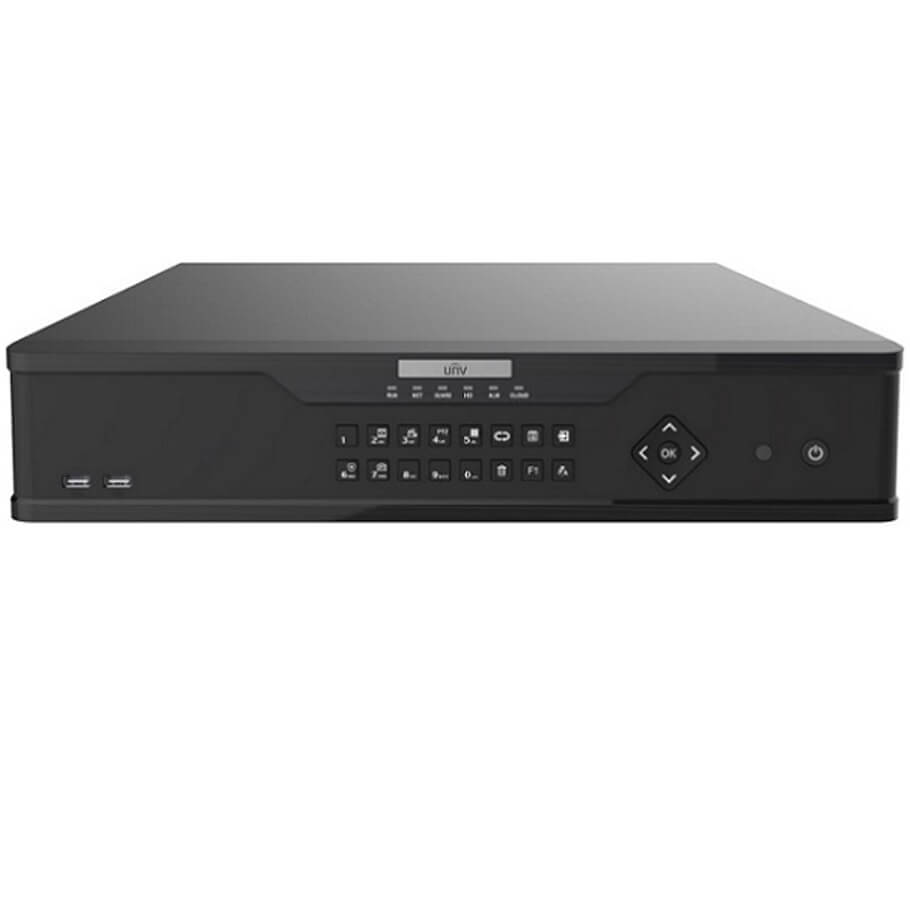

Đầu ghi hình camera IP 32 kênh UNV NVR304-32X

Trang Chủ >> Camera quan sát >> Đầu ghi hình UNV >> Đầu ghi hình camera IP 32 kênh UNV NVR304-32X
Mã số:02951753
Đầu ghi hình camera IP 32 kênh UNV NVR304-32X

Đầu ghi hình camera IP 32 kênh UNV NVR304-32X

- Support Ultra 265/H.265/H.264 video formats

- 32-channel input

- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols

- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution

- HDMI1, HDMI2, VGA independent outputs provided

- Up to 12 Megapixels resolution recording

- Support RAID 1, 5

- 4 SATA HDDs, Up to 10TB for each HDD

- Various fisheye dewarping modes for live view and playback for both web interface and GUI

- ANR technology to enhance the storage reliability when the network is disconnected

- Support cloud upgrade

Thông số kỹ thuật

Model NVR304-32X
Video/Audio Input
IP Video Input 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Browser IE (IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome (version 45 and above) for Windows
Edge (version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
HDMI1/HDMI2 (HDMI audio output is not supported):
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Liveview display 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event
Snapshot		 32-ch snapshot, up to 4K resolution
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x
4MP@25, 16 x 1080p@30, 32 x 960p@25
Hard Disk
SATA 4 SATA interface
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
Disk Group Support
Disk Array
Array Type RAID 1, 5
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change
Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control
VCA Search Behavior Search, Vehicle Search
People counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP by Camera 16-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 2 x USB2.0
Rear panel: 1 x USB3.0
RS232  1
RS485 1
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100~240 VAC
Power Consumption: ≤ 25 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 442mm ×426mm× 89mm
Weight (without HDD) ≤ 5.7Kg

- Bảo hành: 24 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
